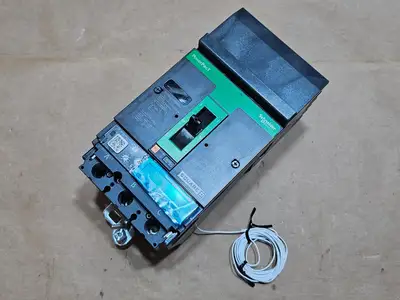

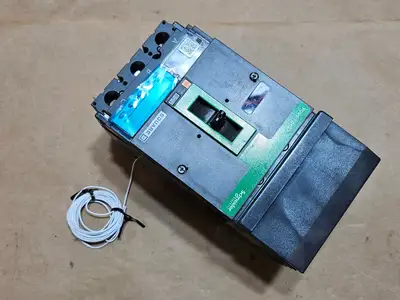

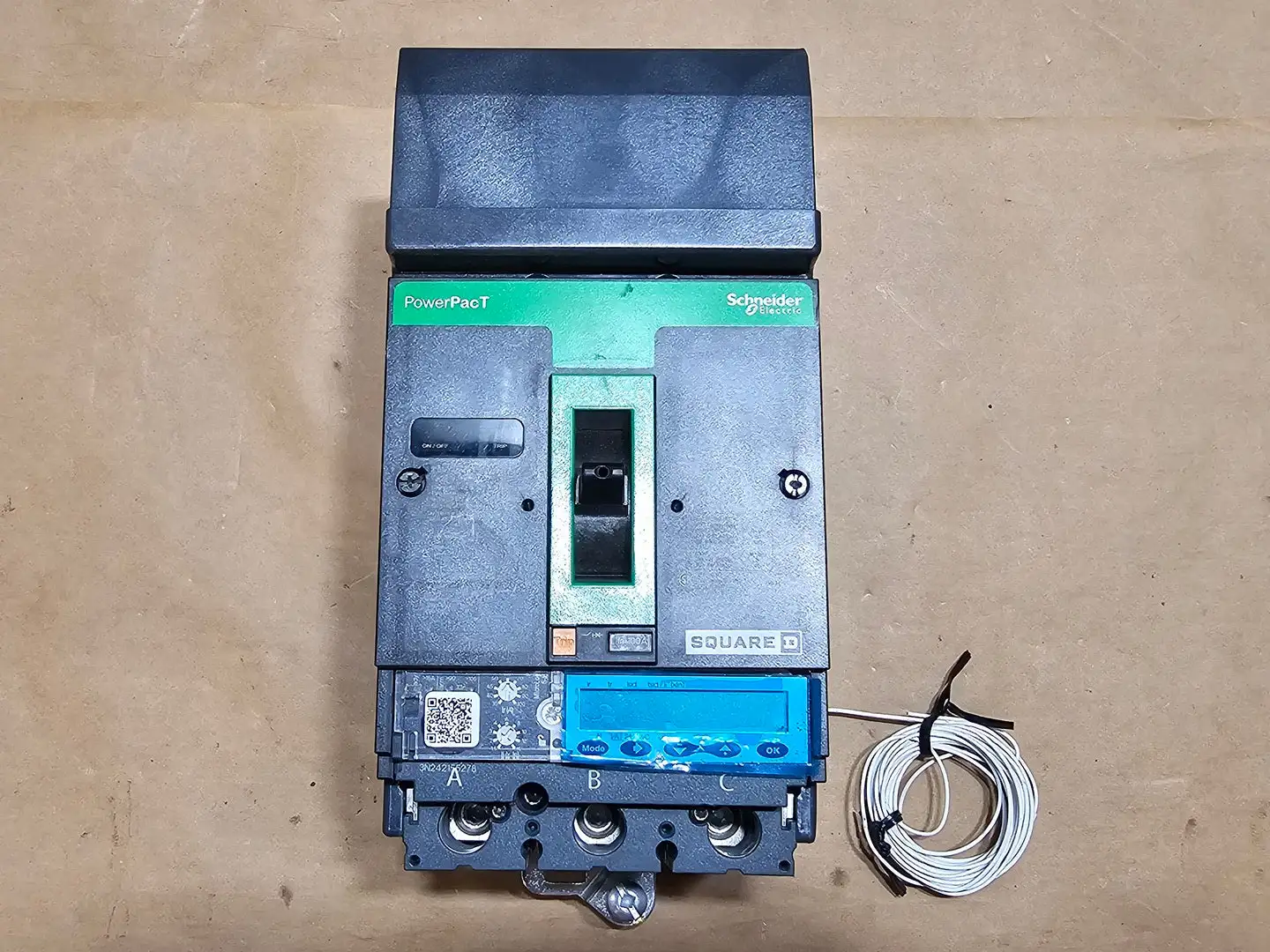

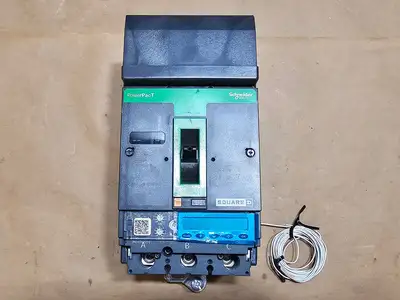

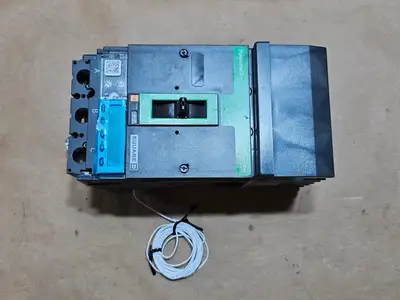

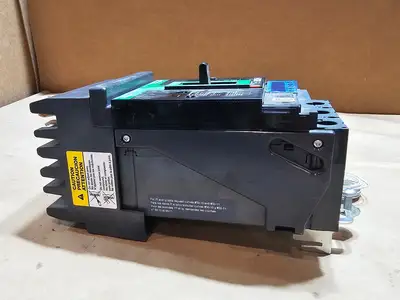

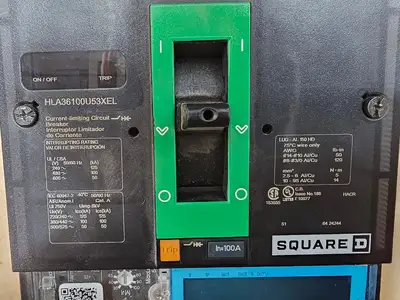

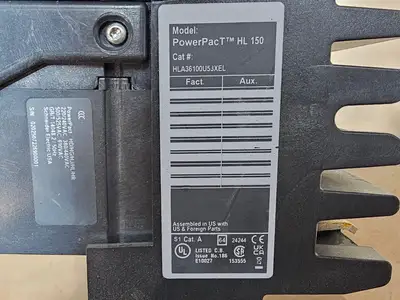

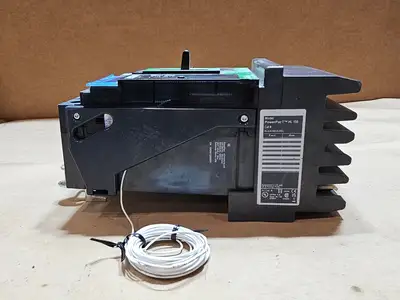

USED SCHNEIDER ELECTRIC HLA36100U53XEL

Amps: 100 amps
Series: PowerPacT HL 150
# of Poles: 3
Mounting Style: Plug-In
Voltage: 600 volts
Phase: 3-phase
Equipment Type: Current-limiting molded-case circuit breaker
Frame Type: H-Frame, 150A frame
Phase Connection: ABC
Frequency: 50/60 Hz
Continuous Current Rating: 80%
Trip Technology: Solid-state electronic
Trip Unit: Micrologic 5.2E Energy
Protection Functions: LSI - long-time, short-time, and instantaneous
Mounting Type: Square D I-Line plug-in

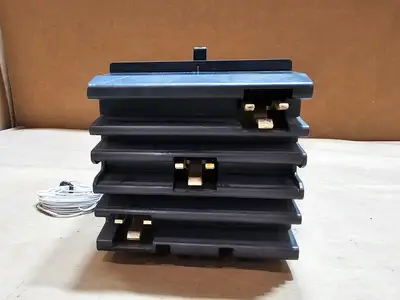

Line-Side Connection: I-Line plug-in jaws

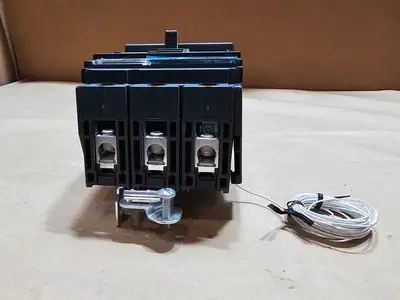

Load-Side Connection: Three mechanical cable lugs
Interrupting Rating at 240VAC: 125kA
Interrupting Rating at 480VAC: 100kA
Interrupting Rating at 600VAC: 50kA
IEC Breaking Capacity at 220/240VAC: 125kA
IEC Breaking Capacity at 380/440VAC: 100kA
IEC Breaking Capacity at 500/525VAC: 50kA
IEC Rated Insulation Voltage: 750V
IEC Rated Impulse Withstand Voltage: 8kV
IEC Utilization Category: Category A
Operating Temperature Marking: 40C
Terminal Type: AL 150 HD
Conductor Compatibility: Aluminum or copper
Small Conductor Range: AWG 14-10 Al/Cu
Large Conductor Range: AWG 8-3/0 Al/Cu
Metric Conductor Range: 2.5-95 mm2 Al/Cu
Small Conductor Torque: 50 lb-in / 5 Nm
Large Conductor Torque: 120 lb-in / 14 Nm
