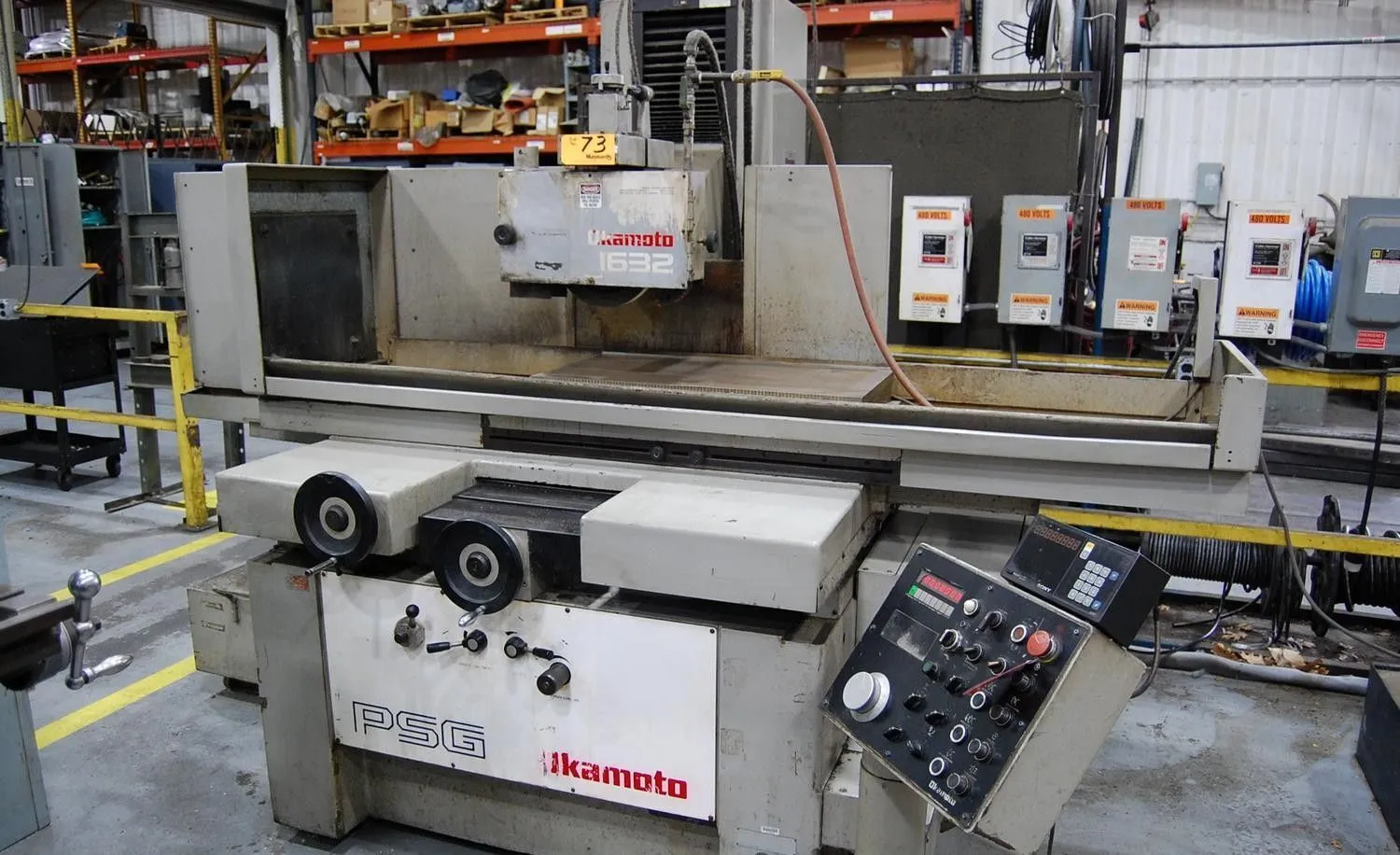

USED OKAMOTO PSG-1632 DX

16” x 32” OKAMOTO 3-AXIS AUTOMATIC
HORIZONTAL-SPINDLE HYDRAULIC SURFACE GRINDER
Serial No 68045, Model PSG-16.32DX

EQUIPPED WITH:
16” x 32” Kanetsu Electro-Magnetic Chuck
Incremental Power Down Feed
Hydraulic Overhead Wheel Dresser
Coolant Filtration System

CATALOG SPECIFICATIONS:
Table Working Surface, W x L 16” x 33.5”
Grinding Width Capacity 16”
Grinding Length Capacity 32”
Table Load Capacity 1540 LBS
Height Grinding Wheel to Table, Maximum 21.6”
Longitudinal Table Travel 37.5”
Cross Table Travel 17.5”
Longitudinal Table Speed, Variable 1 to 82 FPM
Cross Table Feed, Range .02 to 0.8 IPM
Automatic Down Feed, Variable .00005 to .0015 IPM
Grinding Wheel Diameter 12”
Grinding Wheel Width, Maximum 1.5”
Grinding Wheel Hole Diameter 5”
Grinding Wheel Motor, Horsepower 5 HP
Hydraulic System Motor, Horsepower 3 HP
Overall Dimensions, L x W 132” x 87”
Overall Height 82”
Weight Approximately 8800 LBS

F.O.B. ON WAY IN
