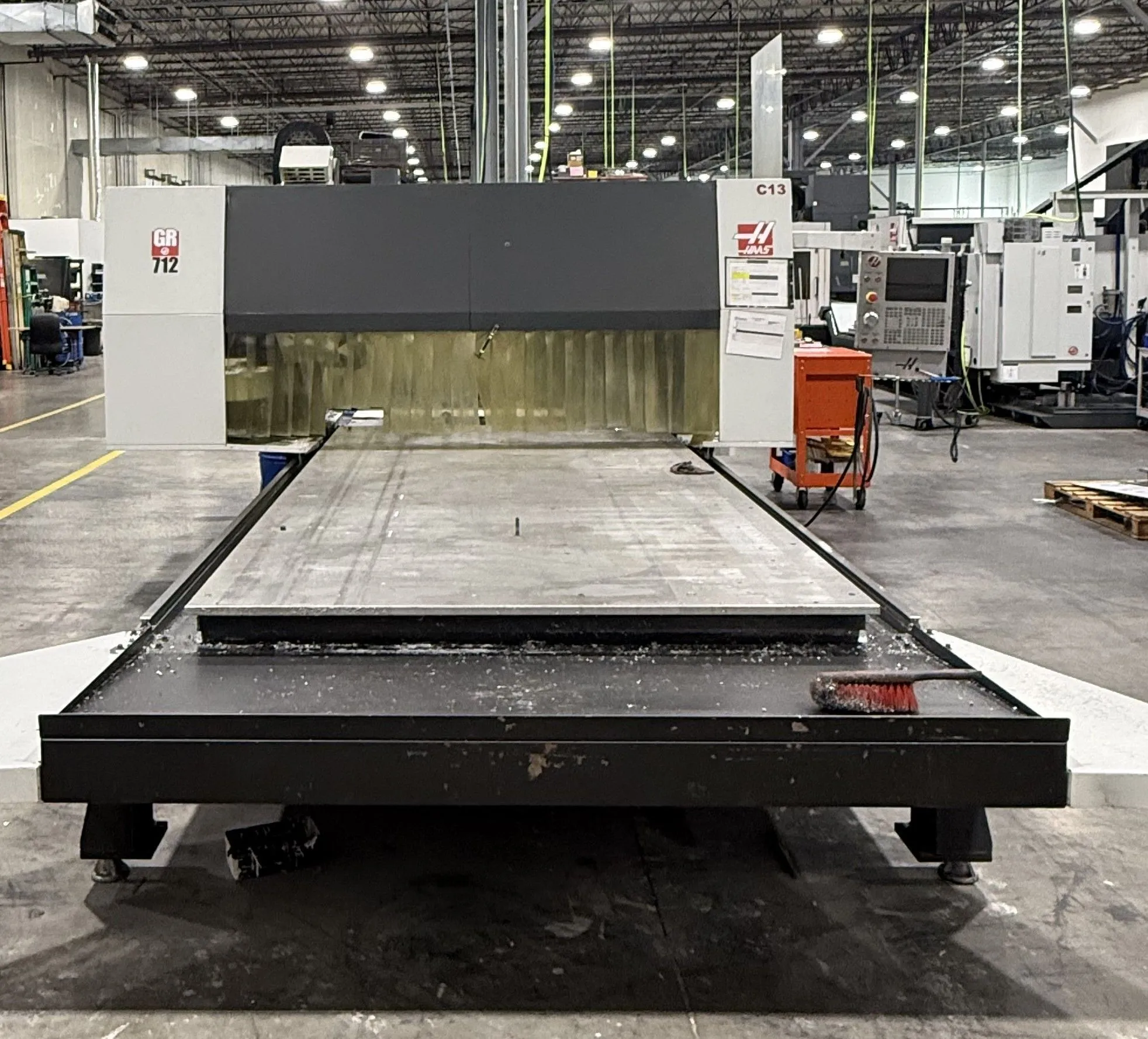

USED 2017 HAAS GR-712

Haas model GR 712 CNC Gantry Router
s/n 1136741
new 03/2017
Spindle on time 4,238:15 hours as of 9-01-26.
Runs on the standard Haas NGC control consistent with all other Haas CNC machine tools.
3 Phase
Hertz: 50/60
Amps: 35 (Largest Load) - 40 (Full Load)

Equipped with:
HAAS GR-712 2017 – CAPACITY
Specification Value
Machine Type CNC Gantry Router
Number of Axes: 3
Table Size: 144″ × 72″
Table Load Capacity: 6,000 lbs
Between Columns: 86″
X Travel: 145″
Y Travel: 85″
Z Travel: 11″
Spindle Taper: 40 Taper
Spindle Interface: CT / BT 40
Spindle Speed: 8,100 RPM
Spindle Motor: 15 HP
Tool Capacity: 20 Tools
4th Axis: Configuration Dependent
Material Capability: Aluminum, Plastics, Composites, Non-Ferrous Materials
The GR-712 is specifically intended for large-format machining and routing applications. Haas describes the GR series as capable of cutting aluminum and other metals while also providing the speed required for plastics and lighter materials.

HAAS GR-712 2017 – SPINDLE
Specification
Maximum Spindle Speed: 8,100 RPM
Spindle Motor: 15 HP
Maximum Torque: 48 ft-lb @ 1,500 RPM
Spindle Taper: 40 Taper
Tool Interface: CT or BT 40
Drive System: Direct-Speed Belt Drive
Spindle Configuration: Vertical
High-Speed Machining: Yes
Heavy-Duty Capability: Configuration / Material Dependent
The 15 HP, 8,100 RPM spindle provides a useful balance of speed and cutting capability for aluminum, plastics, composites, and non-ferrous materials. The spindle produces approximately 48 ft-lb of maximum torque at 1,500 RPM.
The GR-712 is a very large machine. Haas lists shipping dimensions of approximately 226 × 137 × 116 inches and a standard shipping weight of approximately 24,000 lbs.

Other Notes:
https://machinetoolindex.com/machines/haas-gr-712 - For More specifications

The HAAS GR-712 2017 is designed for large-format machining applications across industries where conventional CNC machining centers cannot provide sufficient table size or travel.

Aerospace
Automotive
Transportation
Marine
Defense
Composite Manufacturing
Plastics Manufacturing
Aluminum Manufacturing
Industrial Equipment
Architectural Manufacturing
Sign Manufacturing
General Precision Manufacturing
Tooling & Fixtures
Contract Manufacturing
The machine’s exceptionally large X/Y work envelope makes it especially useful for large panels, composite structures, aluminum components, fixtures, molds, and oversized industrial parts.

Available for inspection under power.
