FHA Drip Edge Roll Forming Machine — Technical Specification

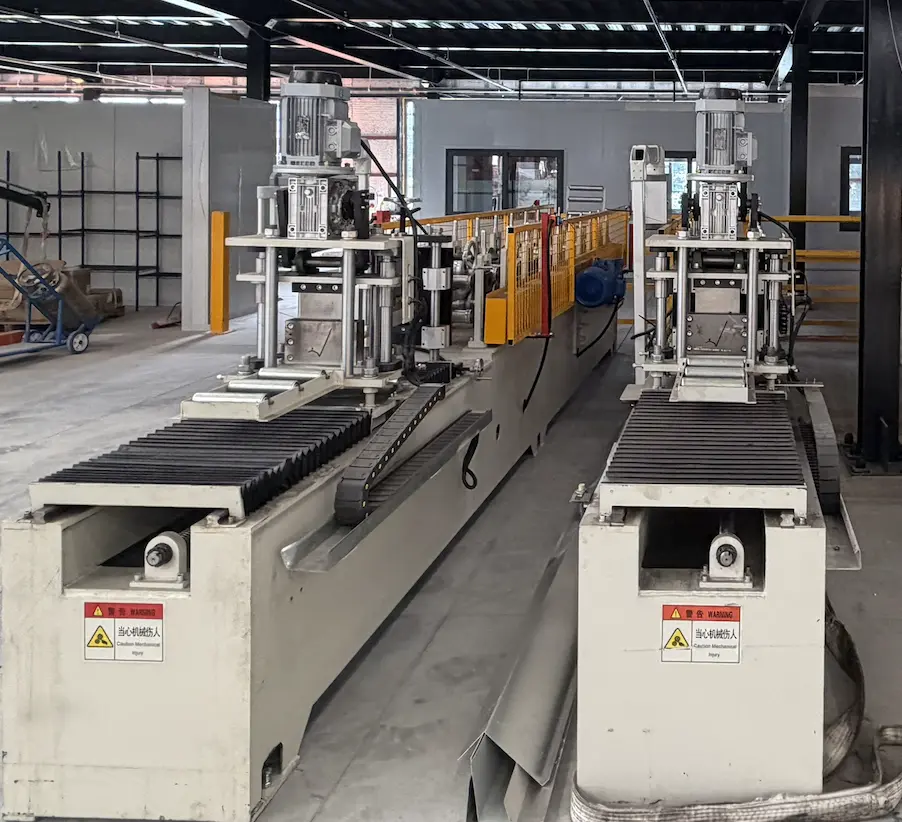

1. Machine Overview

The FHA Drip Edge Roll Forming Machine is a fully automated production line designed to continuously form coil metal into the standard FHA (Federal Housing Administration) drip edge profile used in residential and commercial roofing. The system uncoils, feeds, roll forms, and cuts-to-length in a single continuous pass, producing a consistent, straight, and burr-free drip edge profile ready for packaging or direct shipment.

2. Product / Profile Specification
Profile type: FHA Drip Edge (standard T-style / L-style, per FHA/HUD roofing edge metal requirements)

Material: Galvanized steel, Galvalume, or aluminum coil

Material thickness: 0.019" – 0.032" (0.4 – 0.8 mm), adjustable per tooling

Coil width (blank width): Typically 6", 8", or per customer specification

Finished leg dimensions: Standard 1-1/2" x 1-1/2", 2" x 1-1/2", or custom per drawing

Standard length: 8', 10', or 12' cut-to-length (custom lengths available)

Surface finish: Painted, mill finish, or galvanized

3. Machine Construction

3.1 Frame
Heavy-duty welded steel frame, stress-relieved and precision CNC-machined
Frame thickness: typically 16–20 mm steel plate
Surface treatment: sandblasted and painted (anti-rust primer + finish coat)

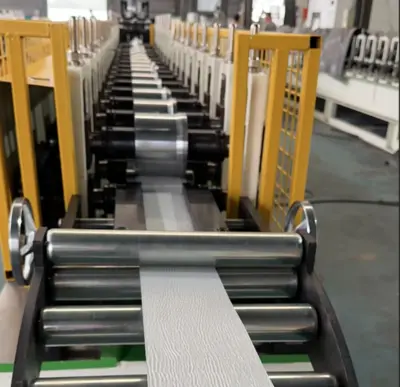

3.2 Forming Stations
Number of forming stations: 10–16 stations (profile dependent)
Roller material: GCr15 bearing steel, hard chrome plated, precision ground
Roller shaft: 45# forged steel, hard chrome plated
Shaft diameter: 60–75 mm (based on machine size)
Roller station spacing and design engineered to prevent scratching, wrinkling, or bowing of the finished profile

3.3 Drive System
Drive type: Chain drive or gear-box drive (per customer preference)
Motor: 3–5.5 kW, 3-phase (voltage per local standard, e.g., 380V/220V/440V, 50/60Hz)
Transmission: Reduction gearbox with chain and sprocket coupling to each roller shaft
Forming speed: 8–15 m/min (adjustable via inverter/frequency drive)

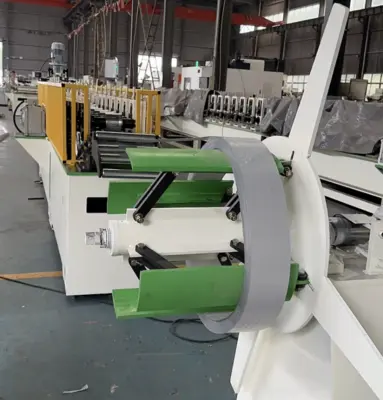

3.4 Feeding / Uncoiling
Manual or hydraulic decoiler, 3–5 ton capacity (per coil weight requirement)
Coil inner diameter accommodation: 450–530 mm (standard)
Optional: motorized/powered decoiler with loop control

3.5 Cutting System
Cutting method: Hydraulic post-cut-off (after forming) for flat, straight, burr-free cuts
Cutting material: Cr12MoV tool steel, quenched and tempered, HRC58-62
Hydraulic station: 3–4 kW motor, hydraulic pump station with pressure gauge and directional valve
Cut tolerance: ±1 mm

3.6 Control System
PLC control system (e.g., Delta, Mitsubishi per customer preference)
Touchscreen HMI for length setting, quantity counting, and speed adjustment
Automatic length counting via encoder
Emergency stop and safety guarding on all pinch points
Electrical cabinet: enclosed, labeled per IEC/NEMA standards

4. Performance Specifications
Item
Specification
Forming speed
8–15 m/min (adjustable)
Cutting tolerance
±1 mm
Material thickness range
0.4–0.8 mm
Main motor power
3–5.5 kW
Hydraulic cutting power
3–4 kW
Total machine weight
Approx. 2,500–4,000 kg (size dependent)
Machine dimensions (L x W x H)
Approx. 5,000 x 1,200 x 1,200 mm (excluding decoiler)
Voltage
240v  60 Hz, 3-phase (customizable)
5. Standard Included Components
Manual decoiler
Feeding guide device
Main roll forming machine body with forming stations
Hydraulic cutting device with PLC-controlled length counting
Electrical control cabinet with HMI
Machine tested and trial-run with customer-supplied coil prior to shipment (if applicable)
