USED 1981 SNOW DR-1-S

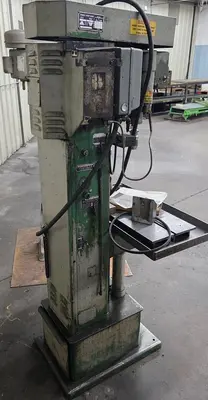

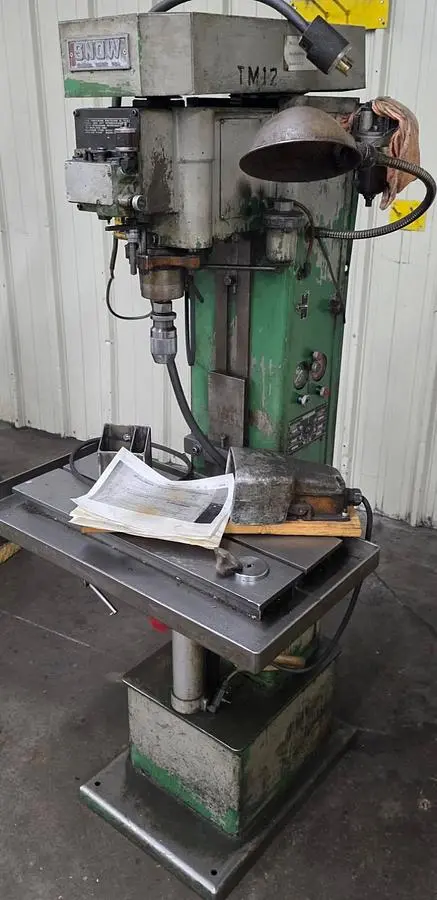

The Snow DR-1-S is a bench/floor-mounted vertical drilling and tapping machine built by Snow Manufacturing Co., a long-established maker of dedicated drilling and tapping equipment for production machine shops. The DR-1-S belongs to Snow's compact “DR” line — single-spindle units designed to drill and tap small-to-medium fasteners in high volume, with a clutch-driven tapping head that reverses automatically at the bottom of the stroke to back the tap out without operator intervention.

Manufacturer: Snow Manufacturing Co.
Model: DR-1-S
Year: 1981
Serial #: M40587-478
Tapping / Drilling Capacity: No. 60 Thru 1/4" (mild steel)
Spindle Speed: 950 - 6,750 RPM
Spindle Nose: No. 1 Morse Taper (MT)
Max. Spindle Stroke: 2"
Motor: 1/2 HP, 3-phase / 60 Hz / 220V, 2-speed (1,725 – 3,450 RPM)
Table Size: 10-1/2" x 25"
Vertical Table Travel: 10"
Throat Depth: 8"
Electrics: 3 phase, 220V, 60 Hz

Approx Dims: 42" x 28" x 66"H
Approx Weight: 600 lbs

Price: $750
*All specifications are approximations and are subject to verification
