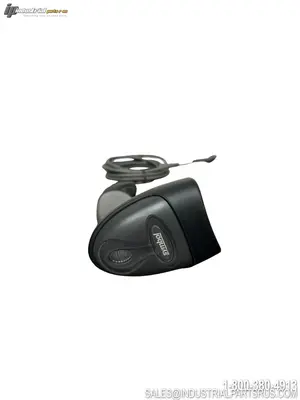

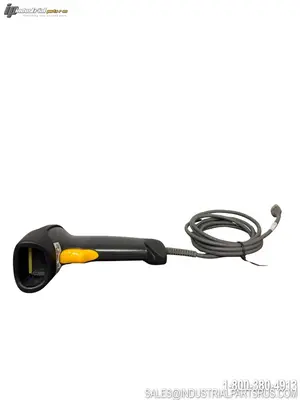

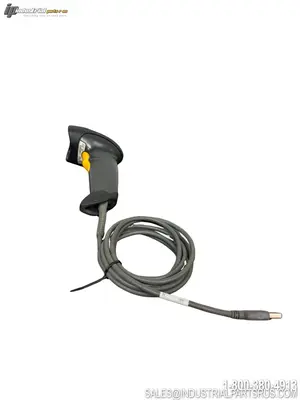

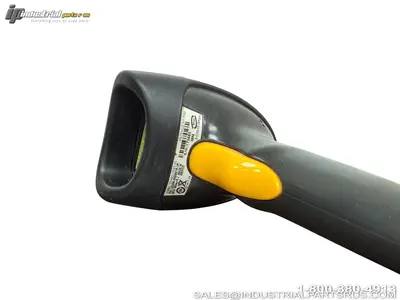

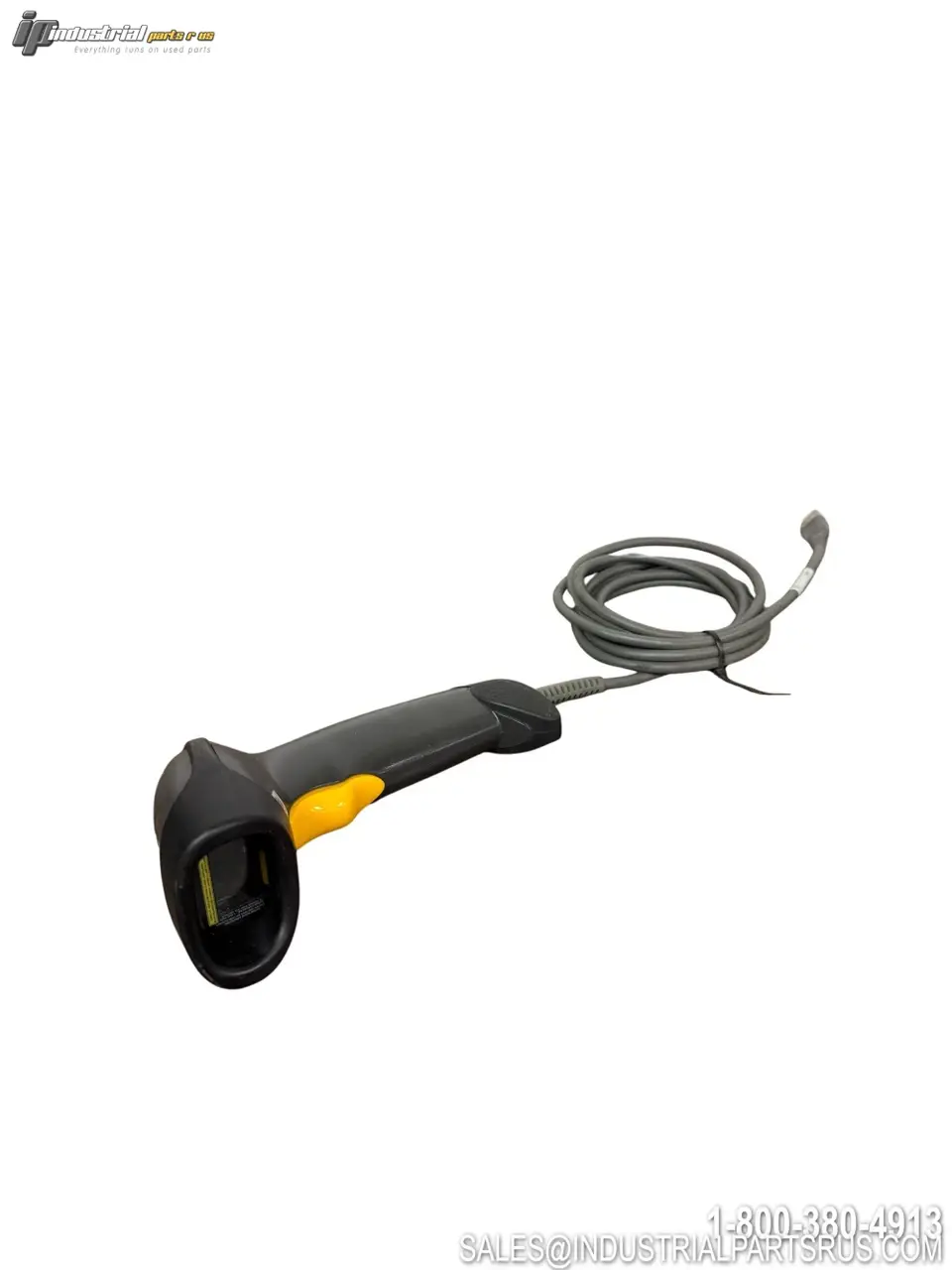

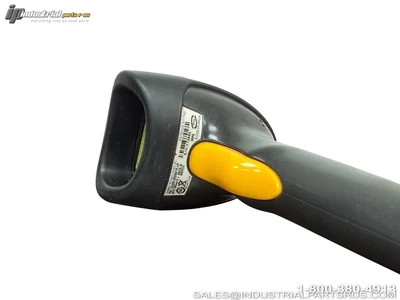

USED SYMBOL TECHNOLOGIES LS2208-SR20007R-UR

The Symbol Technologies LS2208-SR20007R-UR is a corded, handheld 1D laser barcode scanner sold as a complete USB kit for the North American market. It features a 650nm visible laser diode with a bi-directional single-line scan pattern capable of 100 scans per second, and reads all common 1D symbologies including UPC/EAN, Code 39, Code 128, Codabar, and more. Built with patented single-board construction and a frictionless liquid polymer scan element, the LS2208 delivers enterprise-class durability in a lightweight ergonomic form factor suitable for retail POS, healthcare, and light industrial environments.
Specification
Value
Brand
Symbol Technologies
Model / Part Number
LS2208-SR20007R-UR
Product Type
Barcode Scanner
Scanner Family / Series
LS2208
Kit Contents
LS2208-SR20007NA Scanner, CBA-U01-S07ZAR USB Cable, 20-61019-02R Intellistand
Color
Black
Geographic Region
North America (Universal / UR)
Barcode Dimension
1D
Scanner Type
Laser
Light Source
650nm Visible Laser Diode
Laser Classification
IEC 825-1 Class 2
Scan Pattern
Single line, bi-directional
Scan Rate
100 scans/second
Image Sensor
Linear
Minimum Element Width
5 mil (0.127 mm)
Working / Sensing Range
0 – 17 in. (0 – 43.2 cm) at 100% UPC/EAN
Depth of Field
1.5"–10" @ 7.5 mil; 1.0"–14.5" @ 10 mil; 0"–17" @ 13 mil 100% UPC; 0"–23" @ 20 mil
Connectivity
USB (wired / corded)
Interfaces Supported
USB, RS-232, Keyboard Wedge, Wand Emulation, IBM 468X/469X, Synapse, Undecoded Scanner Emulation
Supported Symbologies
UPC/EAN, UPC/EAN Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, RSS Variants, Chinese 2 of 5
Power Requirements
5 VDC ±10% @ ~200 mA (nominal); 500 mA max (standby)
Power Source
Host-powered via USB
Form Factor
Handheld, corded
Dimensions (H x L x W)
2.4 in. x 7.1 in. x 2.4 in. (6.2 cm x 18 cm x 6 cm)
Weight
Approximately 4.3 oz. (122 g)
IP / Ingress Protection Rating
IP30
Drop Specification
5 ft. / 1.5 m repeated drops to concrete
Construction
Patented single-board design; frictionless liquid polymer scan element; scratch-resistant tempered glass exit window
Scanning Modes
Triggered (handheld) and Auto-Scan (hands-free via Intellistand)
Decode Indicator
Direct Decode Indicator (blinking laser), audible beep, red/green LED
Keyboard Support
97 international keyboard layouts
Advanced Data Formatting (ADF)
Yes – data modification prior to host transmission
Configuration Utility
123Scan setup utility
Compliance / Certifications
UL1950, CSA C22.2 No. 950, EN60950/IEC950, FCC Part 15 Class B, ICES-003 Class B, RoHS Directive 2002/95/EC
Replacement Part Number
LS2208SR20007RNA
We warranty all items for 30 days from date of purchase.
