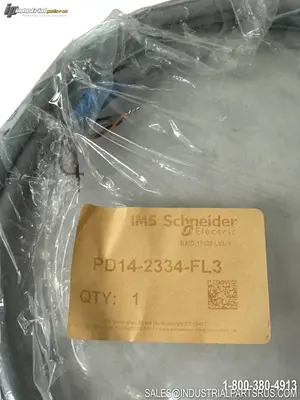

NEW SCHNEIDER PD14-2334-FL3

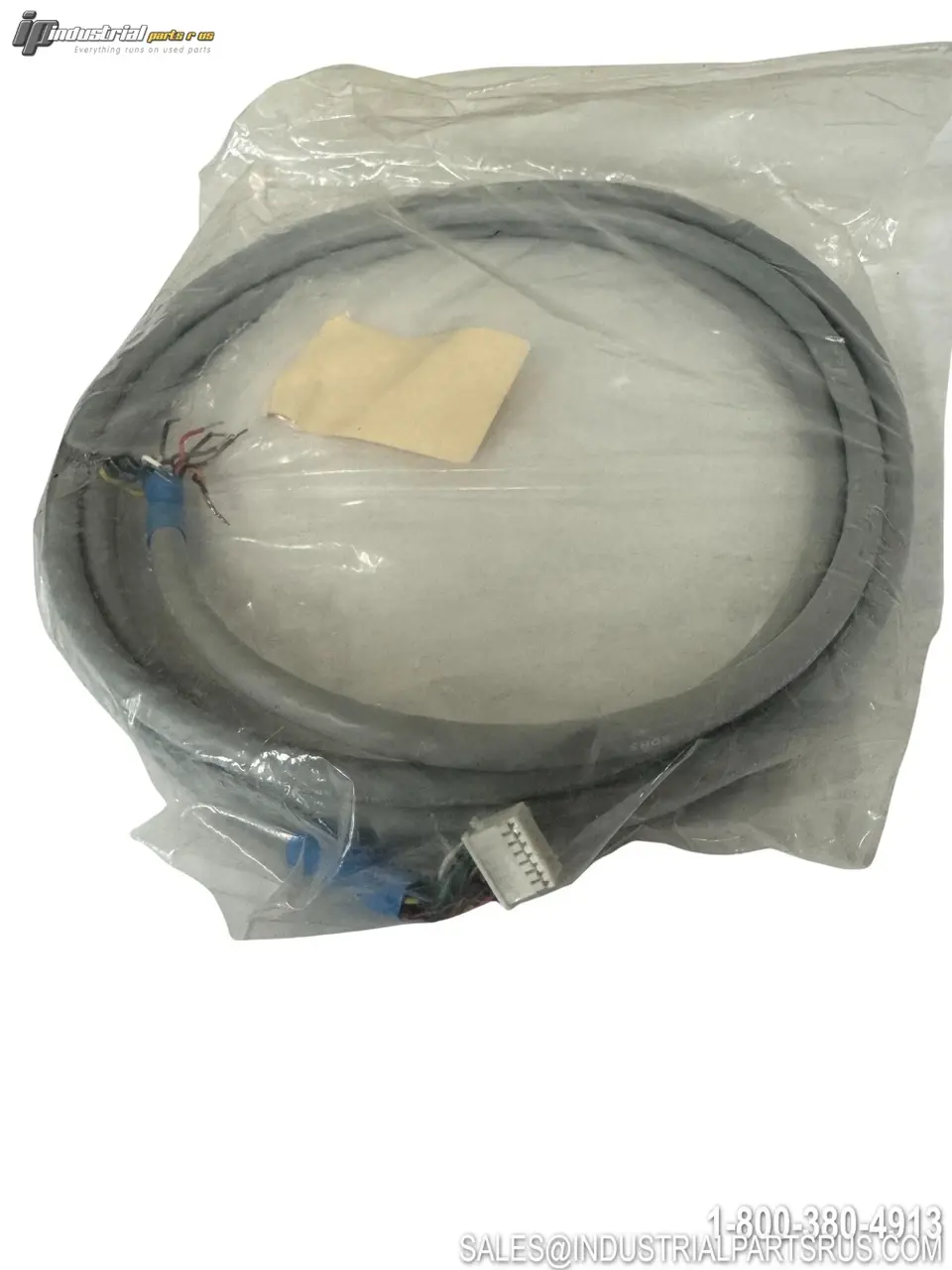

The Schneider Electric PD14-2334-FL3 is a prototype development cable designed to accelerate testing and development of MDrive integrated stepper motor systems. It features a pre-wired 14-pin locking wire crimp (JST) connector on one end that mates directly to the I/O port of compatible MDrive Plus, MDrive Linear, and MForce motion control products (NEMA 23 and NEMA 34 frame sizes), with bare-end flying leads on the other end for flexible bench-top wiring. This cable supports both analog and digital I/O signals and is applicable to MDrive Plus, MDrive Linear, and MForce programmable motion control systems with Ethernet TCP/IP and CANopen communication interfaces.
Specification
Value
Brand
Schneider Electric
Model / Part Number
PD14-2334-FL3
Product Name
Prototype Development Cable
Product Series / Platform
MDrive / Lexium MDrive
Cable Length
3.0 m / 10.0 ft
Connector Type (Drive End)
14-Pin Locking Wire Crimp JST Connector (PADP-14V-1-S)
Connector Type (Other End)
Bare End Flying Leads
Number of Pins
14
Interface / Signal Type
I/O (Step Clock, Direction, Analog In, Capture/Trip, I/O1–I/O12, Encoder, I/O Power, I/O Ground)
Compatible Communication Standards
Ethernet TCP/IP, CANopen
Compatible Drive Interface
Step/Direction, Programmable Motion Control
Compatible NEMA Frame Sizes
NEMA 23, NEMA 34
Compatible Products
MDrive Plus, MDrive Linear, MForce Programmable Motion Control
Mating Connector Kit
CK-09 (14-pin locking wire crimp connector for I/O)
Application
Prototype / Test / Development Bench Wiring
RoHS Compliant
Yes (FL3 suffix indicates RoHS)
We warranty all items for 30 days from date of purchase.
