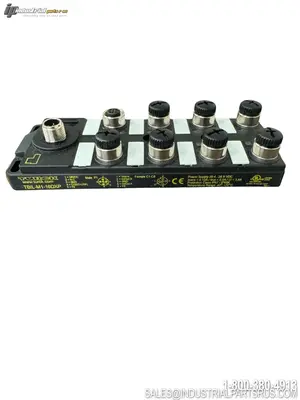

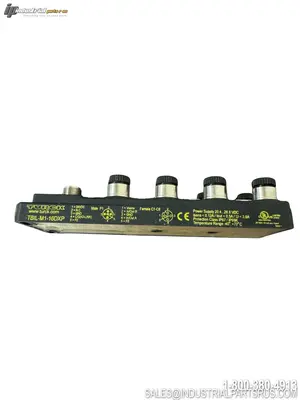

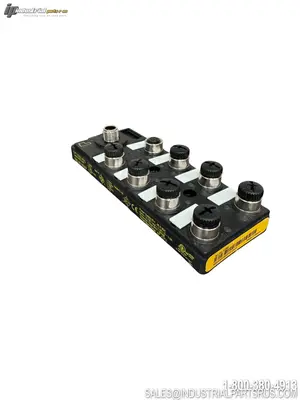

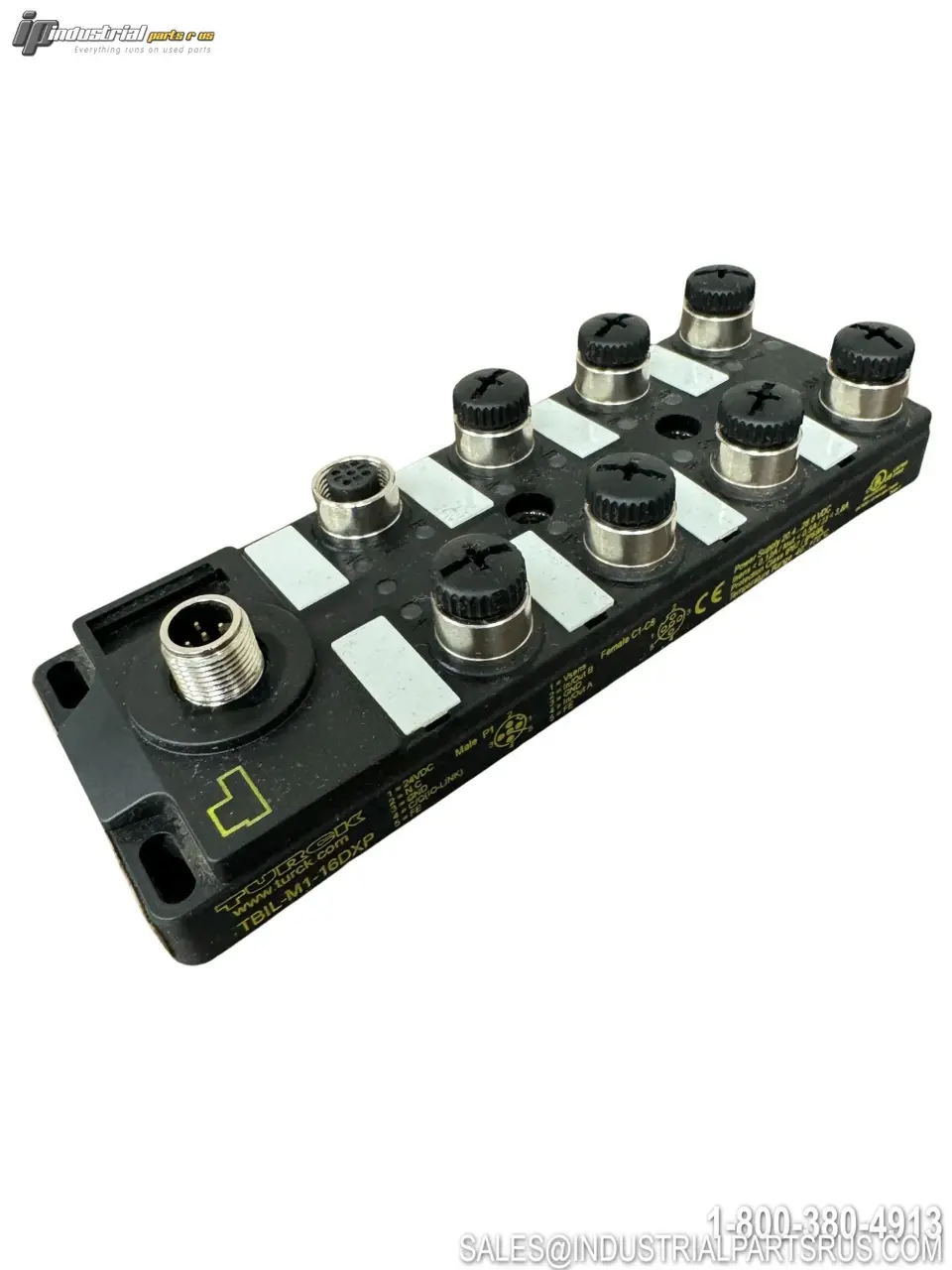

USED TURCK TBIL-M1-16DXP

The Turck TBIL-M1-16DXP is a digital block remote I/O hub designed to connect digital signals to an IO-Link master. It features 16 universal digital PNP channels — each configurable as either a digital input or digital output (up to 0.5 A per channel) — distributed across 8 M12 I/O ports. The module is fully potted, rated IP67/IP69K, and built for rugged on-machine and field installation environments.
Specification
Value
Brand
Turck
Model / Part Number
TBIL-M1-16DXP
Ident No.
6814102
Series
TBIL
Product Type
Digital Block Remote I/O Hub
Communication Protocol
IO-Link
IO-Link Frame Type
2.6
IO-Link Transmission Rate
COM 2 / 38.4 kbps
IO-Link Transmission Physics
3-wire physics (PHY2)
Programming
FDT/DTM
Supply Voltage (Nominal)
24 VDC
Supply Voltage Range
18–30 VDC
Number of Channels
16 Universal Digital (PNP)
Input Type
16 Digital PNP Inputs (EN 61131-2, Type 1 and 3)
Output Type
16 Digital PNP Outputs (configurable)
Output Current per Channel
0.5 A (500 mA), short-circuit proof
Output Voltage
24 VDC
Output Simultaneity Factor
0.35
Output Delay
0.15 ms
Load Type
Resistive, Inductive, Lamp Load
Low Level Signal Voltage
-3…5 VDC (EN 61131-2, Type 1 and 3)
High Level Signal Voltage
11…30 VDC (EN 61131-2, Type 1 and 3)
Input Delay
0.010 ms
Input Diagnostics
Group Diagnostics
Output Diagnostics
Group Diagnostics
Electrical Isolation (Inputs to FE)
500 VDC
Electrical Isolation (Outputs to FE)
500 VDC
Channels per Port
2 Universal Digital Channels
Fieldbus Connection
1 × M12 (5-pin male)
I/O Connection
8 × M12 5-pin Female Connectors
Connector Material
Metal
Housing Material
Fiberglass Reinforced PA6-GF30
Mounting Type
Surface Mount
Degree of Protection
IP67, IP69K
Operating Temperature
-40…+70°C
Dimensions (L × W × H)
150 mm × 54 mm × 27.4 mm
Approvals
ATEX Zone 2/22, CCC, cULus, IECEx
Installation Area
Zone 2, Zone 22
We warranty all items for 30 days from date of purchase.
