USED 2025 HAAS ST-28Y
Overview
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability
Subspindle
12" 3 Jaw Hydraulic Chuck on Main Spindle
6.5" 3 Jaw Hydraulic Chuck on Subspindle

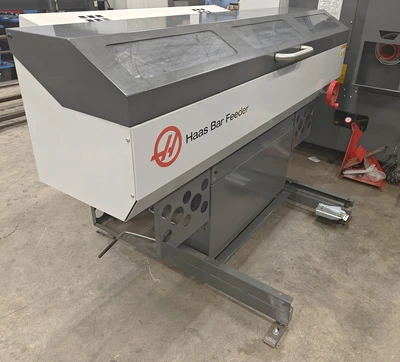

Haas V2 Bar Feeder System with Liner Kit
Chip Conveyor
Parts Catcher
Tool Presetter
4,000 RPM Milling Capability
High Pressure Coolant - 300 PSI
User Definable Macros
Haas Visual Programming System
Haas Enclosure Exhaust System
Auxiliary Coolant Filter System
Parameter Unlock Option
Spindle Orientation
Rigid Tapping
Haas Connect
1 GB Programming Memory
WiFi Connection for Haas Control
Early Power Failure Detection Module
Ethernet Interface
USB Port Interface
Coolant System with Tank & Pump
Chip Tray Filter Kit
Includes Standard Static Tool Holders
(1) Axial Live Holders, (1) Radial Live Holder
**Price new today as equipped is over $213,265**

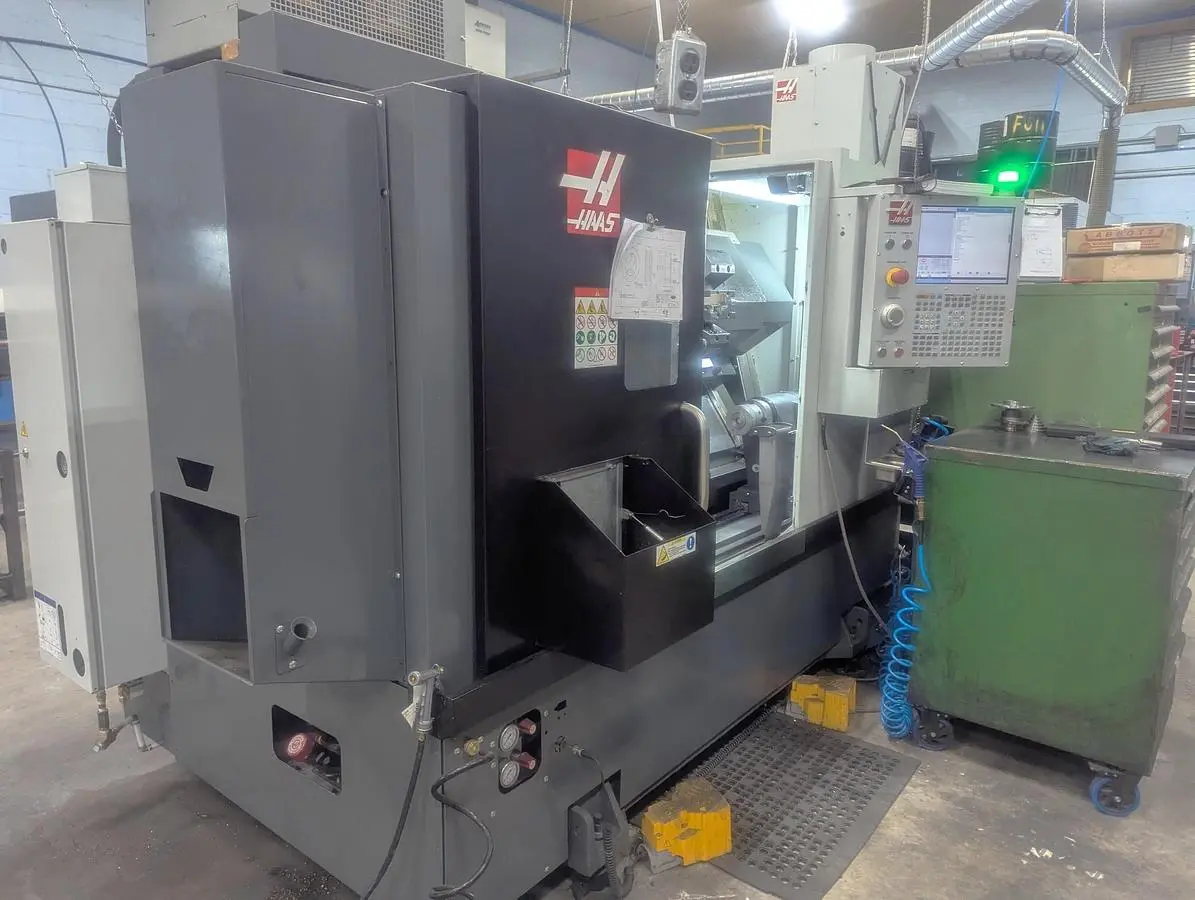

The 2025 Haas ST-28Y is a high-performance CNC lathe that offers extensive capabilities for precision machining. This used model is equipped with a 12" hydraulic 3-jaw chuck and a 6.5" jaw hydraulic chuck, featuring a robust 40 HP spindle motor that operates between 30 to 3,200 RPM, ensuring efficient and versatile performance. The machine’s cutting diameter extends up to 11.75" with a maximum turning length of 22.5", while supporting a bar capacity of 4", making it suitable for a wide range of machining tasks.
The lathe incorporates advanced Haas NextGen Control, which facilitates user-friendly operation and precise control. It also boasts an impressive Z-axis travel of 22.5" and an X-axis travel of 9.4", with additional Y-axis travel options of ±2.0". The 12-station BMT 65 turret enhances its capability for complex operations, complemented by a dynamic subspindle that rotates up to 6000 RPM, expanding its flexibility for secondary operations.
This model includes additional features such as a chip conveyor and parts catcher for efficient workflow management. Its dimensions, weighing in at 10,860 lbs and fitting into a 143" x 90" x 92" footprint, make it suitable for large-scale operations. This equipment is ideal for businesses seeking to enhance their manufacturing capacity with reliable and versatile machinery.
Specs

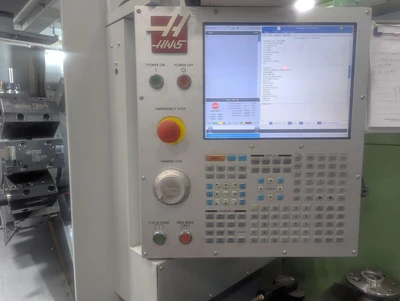

Machine Control: Haas NextGen Control
Chuck Size: 12" 3 Jaw Hydr. / 6.5" 3 Jaw Hydr. Chuck
Maximum Swing: 21"
Maximum Turning Diameter: 11.75"
Maximum Machining Length: 22.5"
Maximum Bar Capacity: 4"
X-Axis Travel: 9.4"
Y-Axis Travel: +/- 2.0"
Z-Axis Travel: 22.5"
C Axis Spindle Rotation: .01 C Axis Rotation - Positioning
Spindle Nose / Spindle Bore: A2-8" / 4.62"
Spindle Speeds: 30 - 3,200 RPM
Spindle Motor: 40 HP

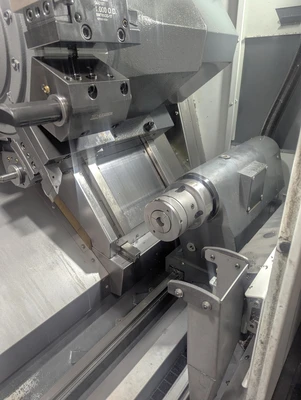

Subspindle Nose / Subspindle Bore: A2-5" / 1.5"
Subspindle Speed: 6000 RPM
Rotary Tool Speed / Rotary Motor: 4,000 RPM / 5 HP

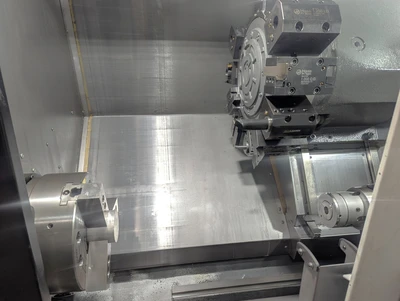

Number of Turret Positions: 12 Station Turret - BMT 65
Rapid Traverse Rates X, Y / Z: 472 IPM / 945 IPM
Machine Dimensions: 143" x 90" x 92"
Machine Weight: 10,860 lbs.
