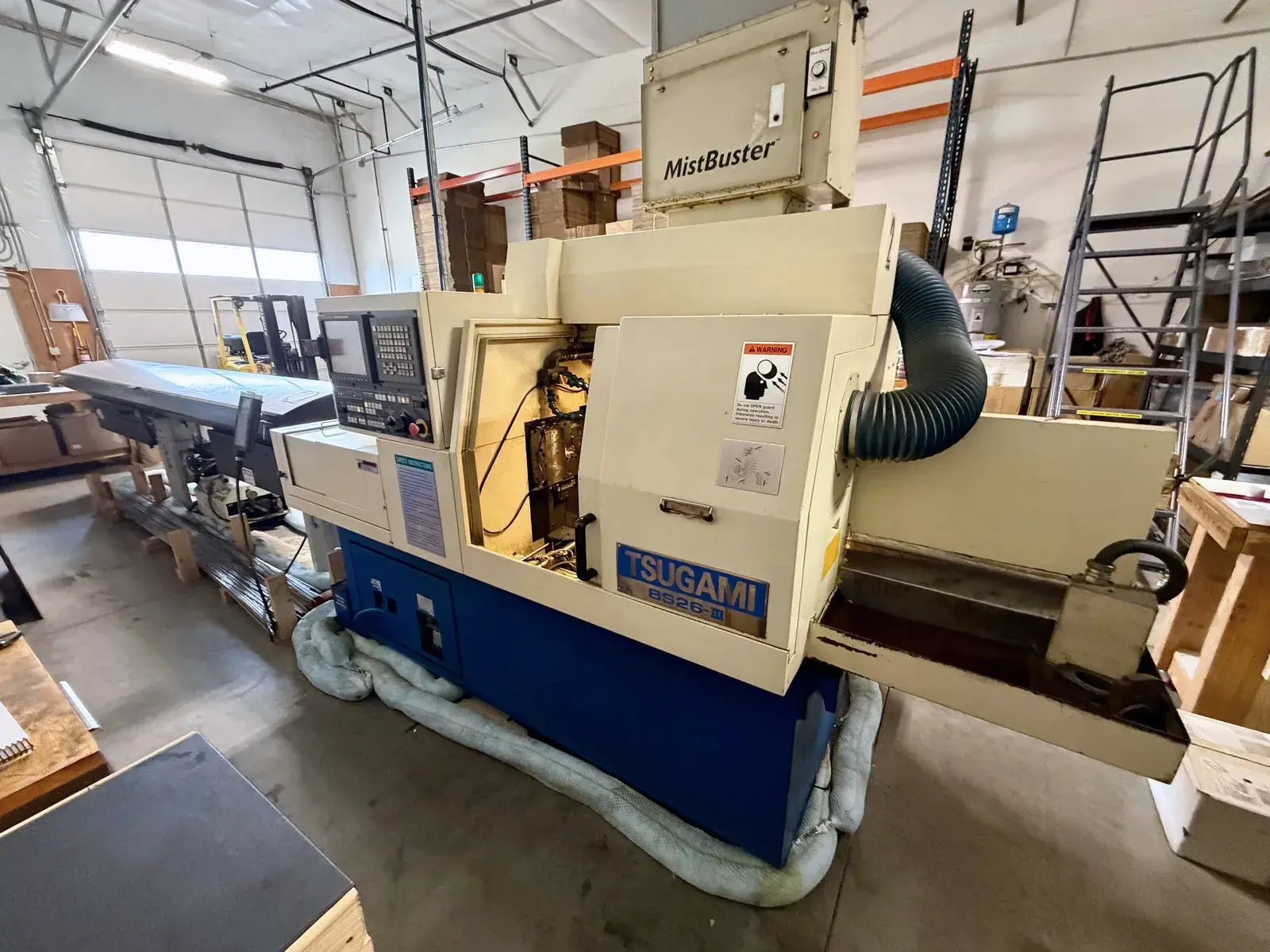

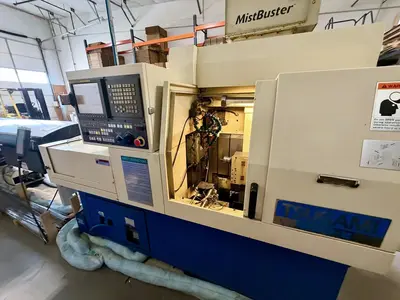

USED 2006 TSUGAMI BS-26-III
Overview
Tsugami BS-26-III Swiss CNC Lathe, 2005 – A high-speed, ultra-precision Swiss-type CNC lathe designed for machining small, complex, and intricate components from metal or plastic bar stock. Ideal for medical, dental, aerospace, automotive, electronics, and precision engineering applications.
Specs
LNS Express 332 barloader
Rem Cool 3400 Air Filter
Chip Conveyor
Model / Capacity: 26 mm (1.02 in) bar stock size
Control System: Fanuc 18i‑T or 18i‑TB
Axes: 7‑axis (C‑axis on both main and sub‑spindles)
Spindle Bore / Punch Diameter: 25.4 mm (1 in)
Max Machining Length: 209 mm (8.25 in)
Main Spindle
Speed Range: 200–7,000 RPM
Motor: ~6 kW
Sub‑Spindle
Chucking Diameter: 26 mm
Drilling: Up to 10 mm
Tapping: Up to M10
Tool Spindle
Tapping diameter: up to 6 mm
Speed: 200–5,000 RPM
Rotary Tool Speed: 200–4,000 RPM
Z1‑Axis Travel: 248 mm (synchronous to Z51)
Indexing accuracy: 0.001° full C‑axis indexing
Coolant System: LNS Super Hydrobar Bar Beed + Royal Filtermist Mist Collector
Bar Feeder: LNS Express Bar Feed
Footprint: ~84.64 × 57.09 in
Approx. Weight: 2,794 kg (~6,150 lb)
Equipped With
LNS Express 332 barloader
Rem Cool 3400 Air Filter
Chip Conveyor
