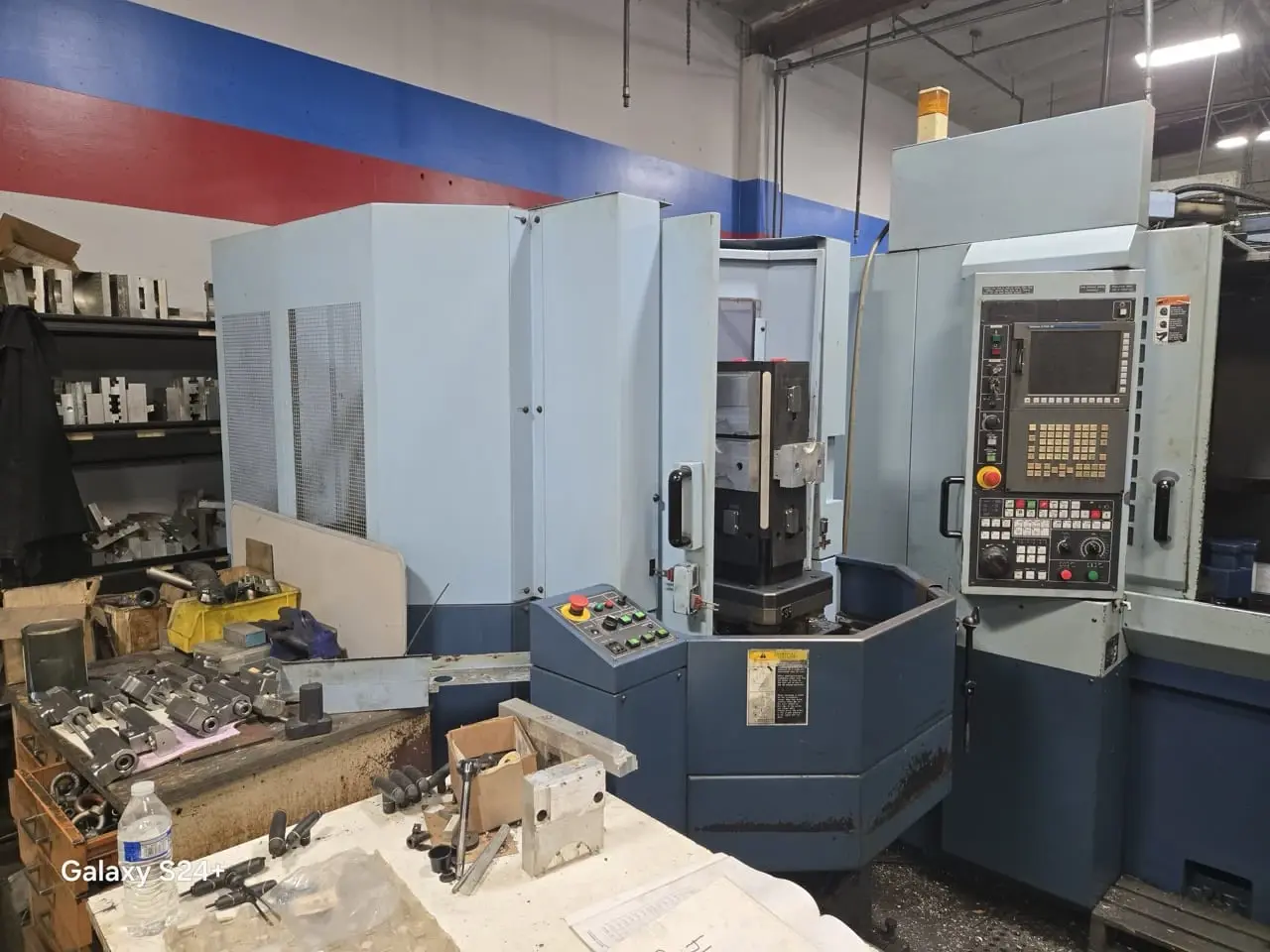

USED 2006 MATSUURA H.PLUS-300
Overview
Horizontal machining center, used. Features include full 4th-axis B rotation, 60 tool ATC, and 15,000 RPM spindle speed. Equipped with G-Tech 30i/Fanuc controller, chip conveyor, and probing system.
Specs
X-Axis Travels: 19.68″
Y-Axis Travels: 22.04″
Z-Axis Travels: 19.68″
B-Axis Rotation: Full 4th-Axis
Max Workpiece Envelope: 20.86″ x 29.92″
Pallet Surface Dimensions: 11.81″ x 11.81″
Pallet Changer Configuration: 2-Pallet APC
Max Load Capacity per Pallet: 551lbs
Pallet Change Time: ~6.0 seconds
Spindle Speed: 15,000 RPM
Spindle Motor: 20 HP
Spindle Torque: 119.3 N·m
ATC: 60
Max Tool Diameter: 3.14″
Max Tool Length: 11.81″
Max Tool Weight: 17.6lbs
Rapid Traverse Rates X/Y/Z: 2,362 IPM
B-Axis Rapid Speed: 100 RPM
Electrical: 220V, 3-Phase
Approximate Machine Weight: 18,300lbs
Approximate Machine Dimensions: 85″ x 146″ x 101″
Equipped With
Matsuura G-Tech 30i/Fanuc 30i-A Series CNC Controller
Chip Conveyor
Cool Through Spindle
Probing
