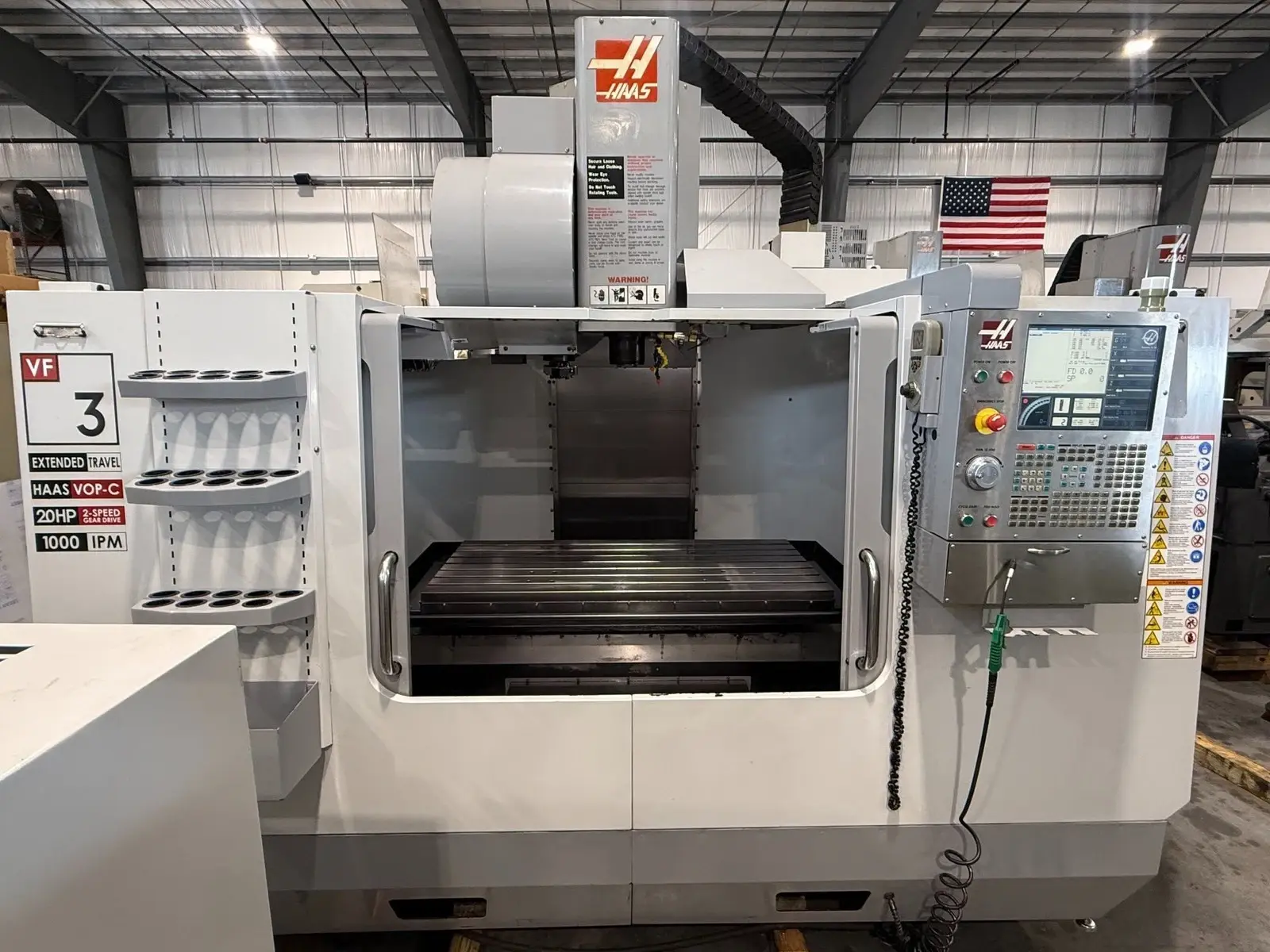

USED 2007 HAAS VF-3BYT
Overview
Used Vertical Machining Center with 24" x 54" table. Features 30 HP vector spindle drive, four-axis CNC control, chip auger, and programmable coolant. Ready for demanding tasks with 7,500 RPM spindle speeds.
Specs
Table working surface- 24" x 54
Maximum weight on table- 4,000 Lbs.
Table travel, X-axis (longitudinal)- 40”
Table travel, Y-axis (cross)- 26”
Vertical column travel (Z-axis)- 25”
Minimum/Maximum distance, spindle nose to table- 7.9"/32.9"
Spindle taper- CAT-40
Spindle speeds- 0 to 7,500 R.P.M.
Rapid traverse rate, all axes- 710 I.P.M.
Cutting feed rate, all axes- up to 500 I.P.M.
Maximum tool diameter- 4”
Maximum tool weight- 30 Lbs.
Equipped With
HAAS four-axis CNC control with manual pulse generator, USB drive (on pendant), RS-232 port
Machine hours- Servo time-1,164, Motion time- 9,557, Spindle time- 9,133
Control Options- Rigid tapping, Rotation & Scaling, DNC, Macros, Quick code, Pre-Orient Tap, Advanced tool management, Intuitive Programming Systems
All cast iron construction
Brushless servo amplifiers and servo motors on all axes
Prewired for the 4th axis
Programmable coolant nozzle
Chip Auger
Side mount tool changer 24 tool capacity
Telescopic way covers
Automatic lubrication system
External coolant pump and tank
30 H.P. Vector spindle drive
Machine is wired for 208-230 volt operation / 3 phase / 60 H.Z.
Machine weight- 16,500 Lbs.
Machine dimensions- 124” L x 106” W x 109’’ H
