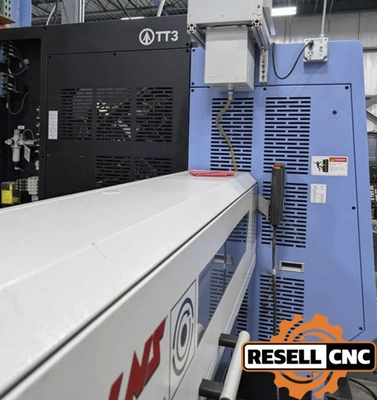

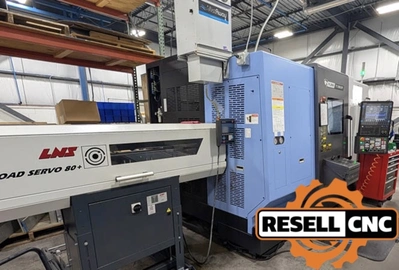

USED 2024 Doosan Puma-TT2100SYY

X2nd Turret Live Tooling: true
X2nd Turret Max Rpm: 5000
X2nd Turret Positions: 12
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Royal Collet Chucks (Included with Machine)

LNS Chip Conveyor

Mistaway Mist Collector

Renishaw Tool Probe

Box-Way Construction

Bar Capacity: 2.625
Barfeeder Make Model: LNS Servo 80
B Axis: false
C Axis: true
Chuck Description: 8" Chuck (currently configured with Royal Collet Chucks; included with machine)
Chuck Size: 8.0
Chuck Type: Collet
Control Make Model: FANUC
Coolant Type S: 2
Distance Between Centers: 28.0
High Pressure Coolant Psi: 1000.0
Live Milling Hp: 10
Live Milling Max Rpm: 5000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Cutting Turning Diameter: 9.0
Max Swing Over Bed: 9.1
Max Turning Cutting Length: 9.0
Programmable Tailstock: false
Second Spindle Motor: 35
Second Spindle Speed: 5000
Single Turret: false
Single Turret Live Tooling: true
Spindle Bore: 3.15
Spindle Motor: 35
Spindle Nose: A2-6
Spindle Speed: 5000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 12.0
Total Spindles: 2
Turret Max Rpm: 5000
Turret Options: BMT55 Turret Style (Upper and Lower)
Twin Turret: true
X Travel: 6.0
Y Axis: true
Z Travel: 28.0
