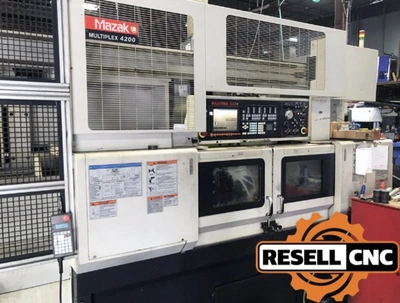

USED 2004 Mazak Multiplex 4200

X2nd Turret Live Tooling: false
X2nd Turret Positions: 12
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Probing Hardware (Needs Installation)

Mazatrol LP2 Optical Work Measuring System (Prep Only)

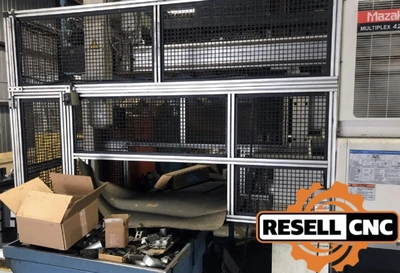

GL100F Gantry Loader Robot

Jorgensen Magnetic Slider Bed Conveyor

Twin 12-Position Dodecagonal Drum Turrets, Non-Lift

Modified VDI Tool Holder Shanks

Tool Size (Turning & Facing) 1" x 1"

Max Boring Bar Diameter 1-1/2"

Turret Index Time 0.2 sec (1 step)

Spindle Torque 258.2 ft-lbs (L & R)

L Z-Travel 17.25" / R Z-Travel 19.37"

X-Axis Rapid 1,200 IPM / Z-Axis Rapid 1,300 IPM

Max Shaftwork Length 21" / Max Chuckwork Length 7"

Distance Between Spindle Faces 10.15" - 46.85"

High Power Coolant 105 PSI / 5.3 GPM (L & R)

Automatic Tool Eye L & R

EIA/ISO Option Package

PCMCIA Interface (2-Slot)

Network Interface (LAN & Modem)

Total Weight 16,060 lbs

Air Requirements 71 PSI / 14 CFM

Machine Footprint 81.54" x 140.6" x 82.3" H (W/O Automation)

Bar Capacity: 2.0
B Axis: false
C Axis: false
Chuck Size: 6.0

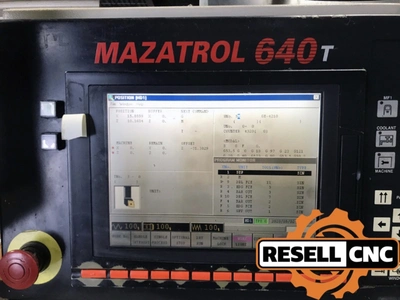

Control Make Model: Mazatrol Fusion 640T
Control Options: Ethernet / LAN
Coolant Type S: High Pressure Coolant
Distance Between Centers: 46.85
High Pressure Coolant Psi: 105.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Tool Eye
Max Cutting Turning Diameter: 10.24
Max Swing Over Bed: 12.5
Max Turning Cutting Length: 21.0
Programmable Tailstock: false
Rapid Traverse: 1300
Second Bar Capacity: 2.0
Second Spindle Bore: 2.4
Second Spindle Motor: 30 HP
Second Spindle Nose: A2-6
Second Spindle Speed: 5000
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 2.4
Spindle Motor: 30 HP
Spindle Nose: A2-6
Spindle Speed: 5000.0
Sub Spindle: true
Tailstock: false
Tool Change Time: 0.2
Tool Positions: 12.0
Total Spindles: 2
Twin Turret: true
X Travel: 9.06
Y Axis: false
Z Travel: 19.37
