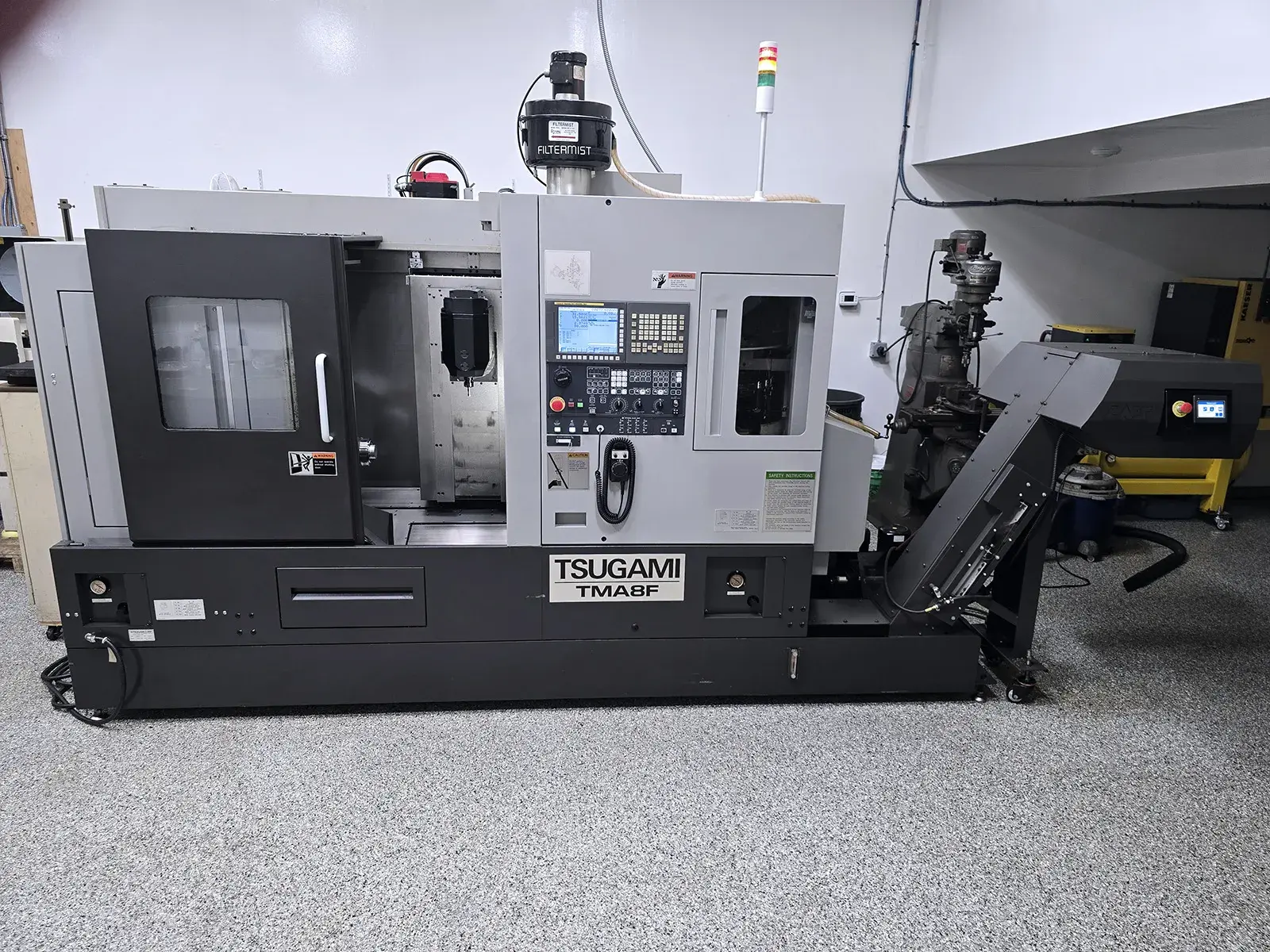

USED 2019 Tsugami TMA8F
Overview
The Tsugami TMA8F (2019) is a high-precision multi-axis CNC Turn/Mill Machining Center with Fanuc 31i control. Combining turning, milling, drilling, tapping and angled machining in one setup, it is ideal for complex medical, aerospace, automotive and fluid power components.
Specs
Maximum Bar Stock: 65 mm, 2.56″
Maximum Work Diameter: 220 mm, 8.66″
Max Work Length: 580 mm, 22.83″
Main Spindle Speed/Motor: 5,000 rpm, 20hp
Sub Spindle Speed/Motor: 5,000 rpm, 15hp
Tool Spindle Speed / Motor: 20,000 rpm, 15hp

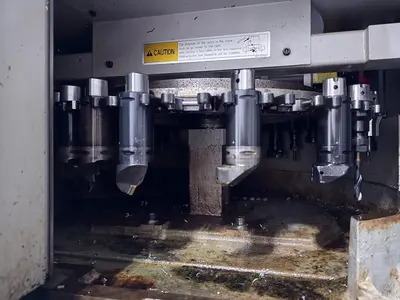

ATC: 60 CAPTO C4 Tools Standard
Control: FANUC 31i-B5
Weight: 18,739 lbs / 8,500 kg
Footprint: W x D x H 3,700 x 2,126 x 2,250mm / 145.7 x 83.7 x 88.6”
Equipped With
8" & 6" Power chucks as well as a 6" 2 jaw power chuck
(2) ATS Dead length collet chucks
(1) QG-65 Collet Chuck
Mist collector
1000 PSI coolant

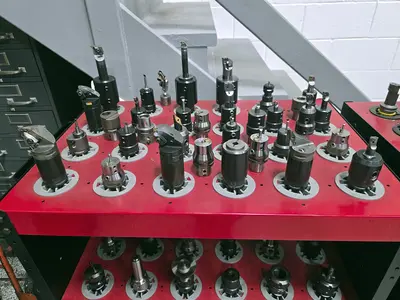

(106) Sandvik Capto C4 tool holders
2019 Installed new in 2020
Glass scales
20.000 rpm tool spindle
Hand wheel
Chuck foot pedal
