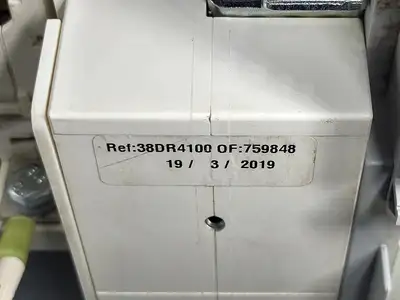

USED 2019 SOCOMEC 60947-3

Amps: 630 amps
Voltage: 1000 volts
Phase: Multi-phase
Fused: Fused
Type: DC Fused Disconnect / Load Break Switch Assembly

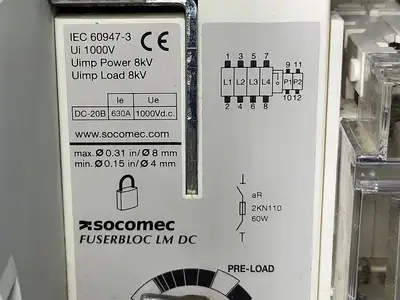

Electrical Ratings:
Rated Current (Ie): 630A
Rated Voltage (Ue): 1000 VDC
Utilization Category: DC-20B
Impulse Withstand (Uimp): 8 kV
Configuration:
Multi-pole DC disconnect (L1, L2, L3, L4)

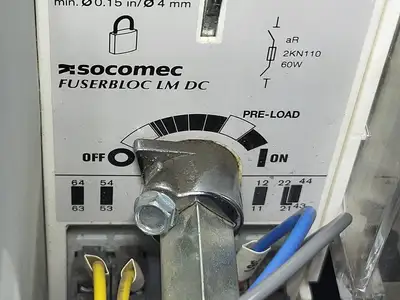

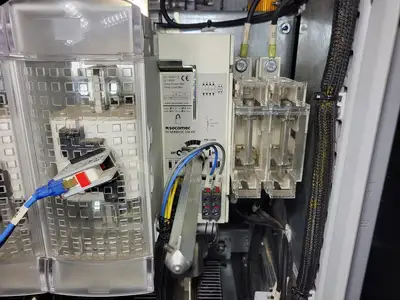

Integrated pre-charge (pre-load) selector switch

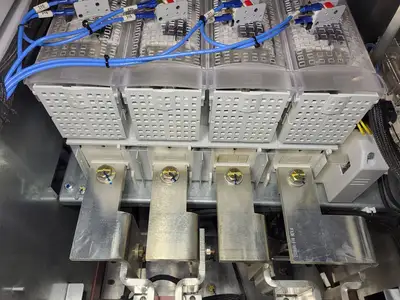

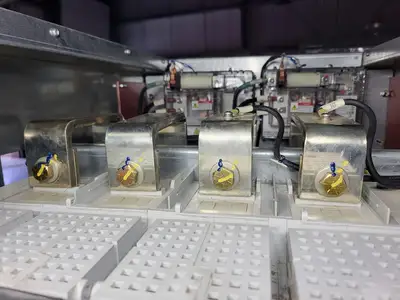

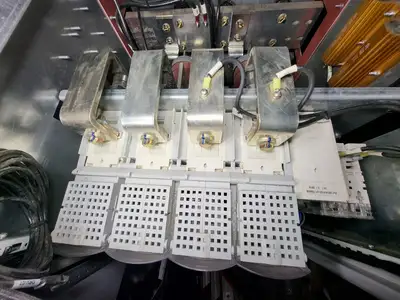

Heavy-duty busbar distribution (top & bottom)

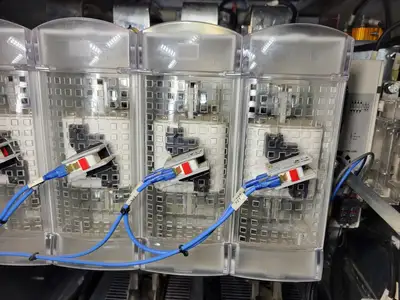

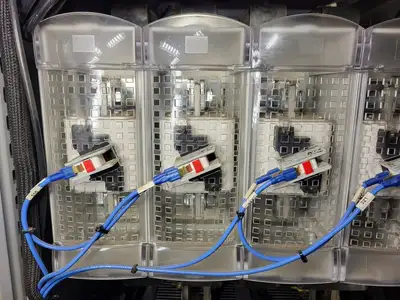

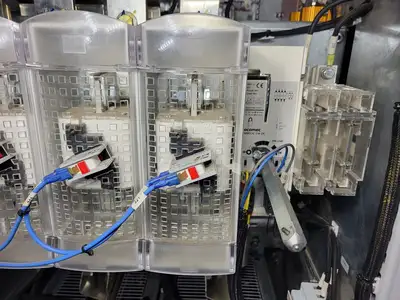

(4) NH-style fuse holder modules with protective covers

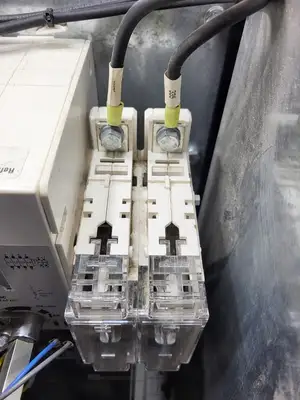

Auxiliary fuse holders (control circuit protection)
Monitoring & Control:

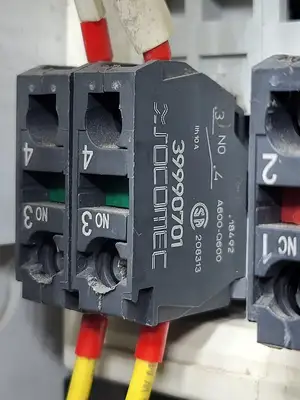

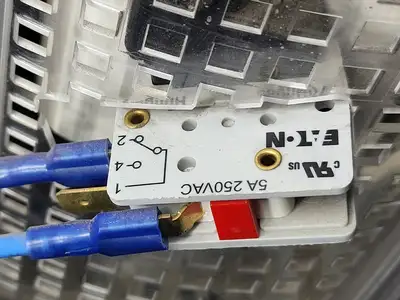

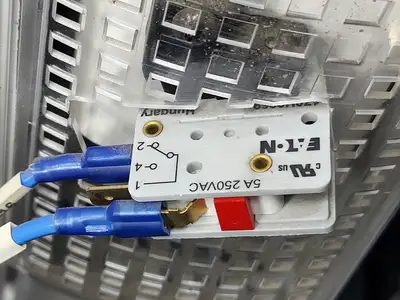

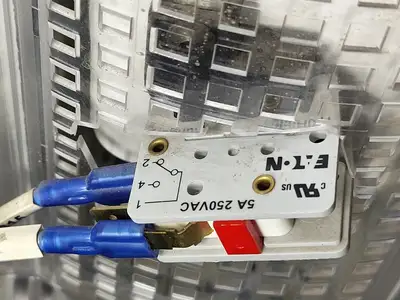

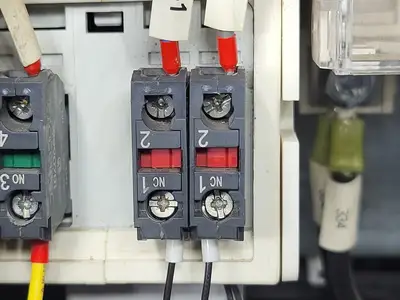

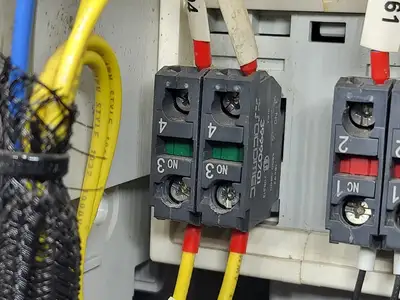

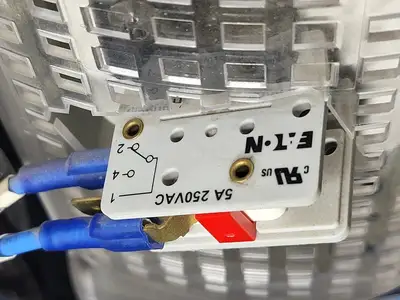

Eaton microswitches (5A, 250VAC) for fuse status indication

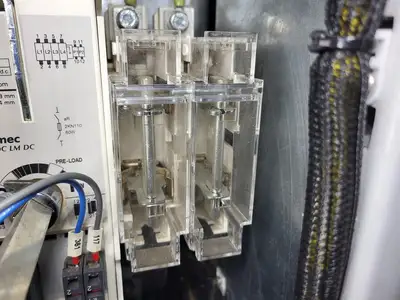

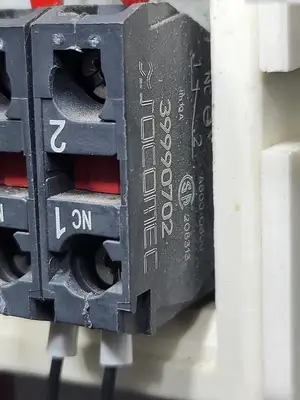

Control circuit breakers (Socomec) installed
Pre-charge resistor circuit (labeled 60W)
Construction:

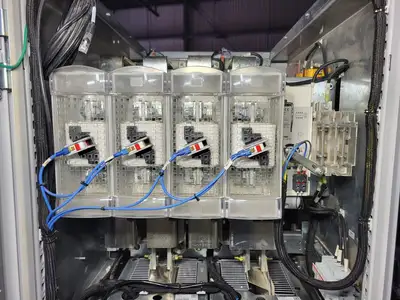

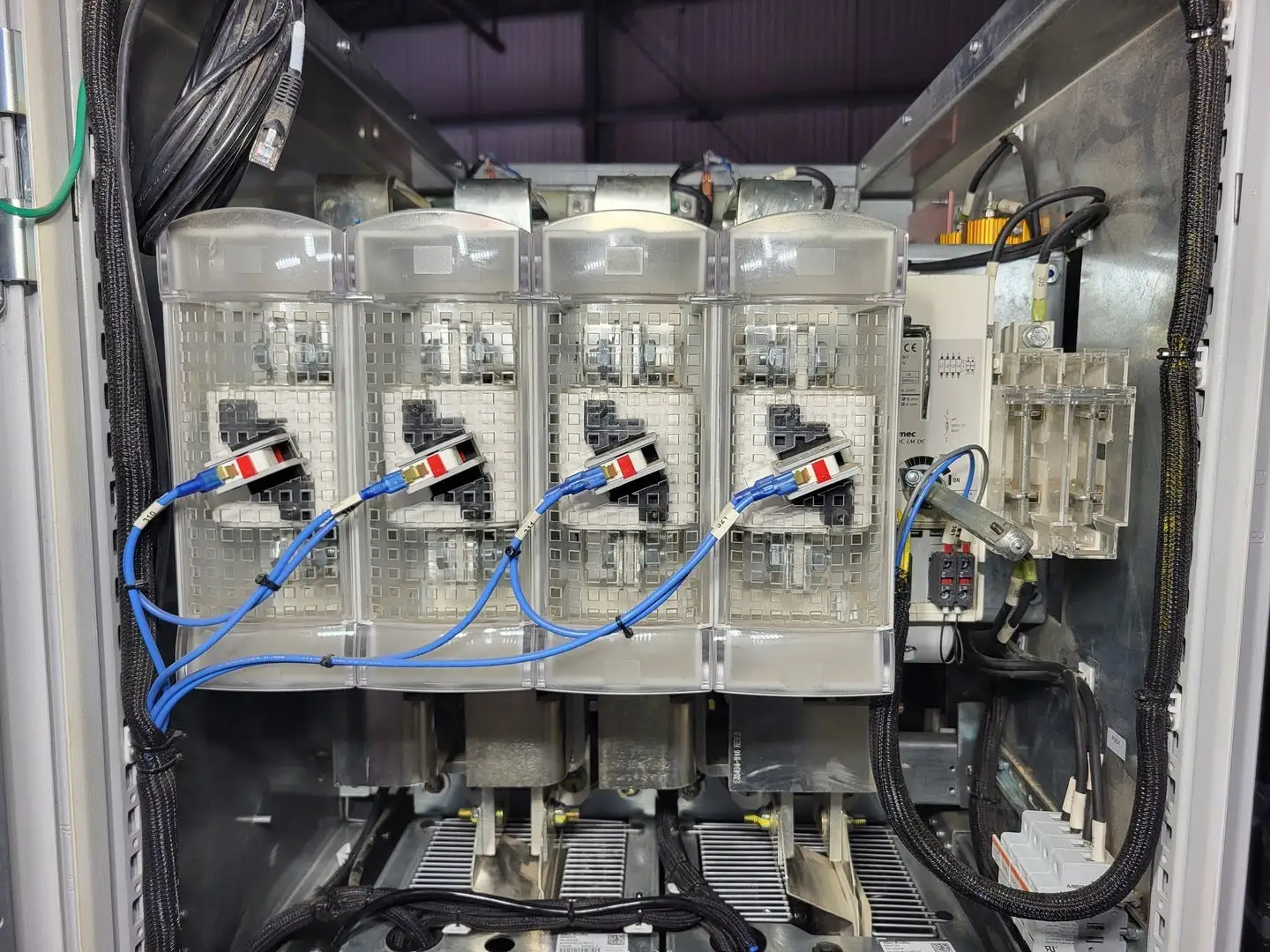

Industrial enclosure-mounted assembly

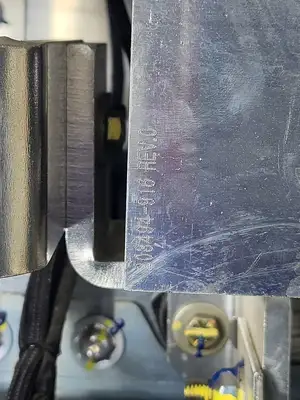

High-conductivity busbars (aluminum/copper)

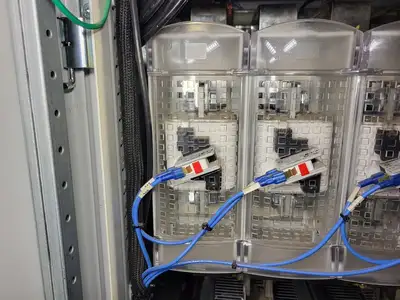

Transparent fuse covers for visual inspection
Applications:
Battery Energy Storage Systems (BESS)
Solar / Photovoltaic DC systems
UPS / backup power systems
DC distribution panels
Industrial rectifier / DC drive systems
