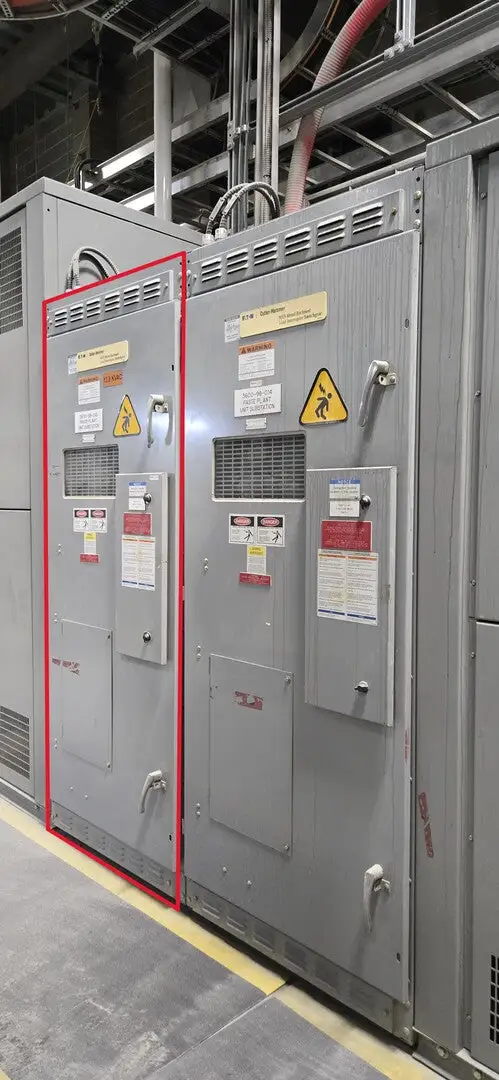

USED EATON CUTLER-HAMMER MVS
Specs
Voltage: 13800 volts
Phase: 3-phase
AVAILABLE AFTER: LEAD TIME
Lineup - Single Line Diagram
Full Lineup Listing: 155524
Crusher/Backfill Plant Electrical Layout - Single Line Diagram
DIAGRAM SHOWS THE FOLLOWING LINEUPS:
Lineup #1: 155523 - 13.8kV Unit Substation - 2000/2666kVA, 13.8kV Transformer w/ 600V MAGNUM DS Switchgear & Load Interrupter
Asset ID Ref. 3600-98-012
Lineup #2: 155524 - 13.8kV Unit Substation - 2000/2666kVA, 13.8kV Transformer w/ 4160V AMPGARD Switchgear & Load Interrupter
Asset ID Ref. 3600-98-013
Lineup #3: 155525 - 13.8kV Unit Substation - 750/1000kVA, 13.8kV Transformer w/ 600V MAGNUM DS Switchgear & Load Interrupter
Asset ID Ref. 3600-98-014
Lineup #4: 155405 - POWER/VAC MV Metal-Clad Switchgear, 13.8kV, 1200A, 500MVA w/ Tie Breaker
Asset ID Ref. 3600-91-001
