NEW 2026 POREBA MACHINE TOOL TR135B2/6M
Overview

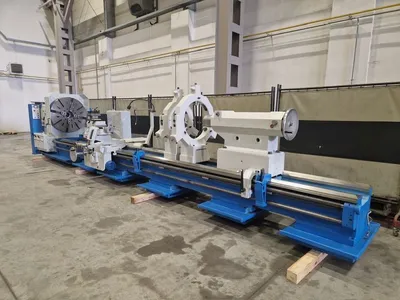

POREBA MACHINE TOOL Model TR135B2/6M Swing 53" x 20' CC, New: 1988/ Rebuilt 2026
• Machine tool construction based on a rigid bed with hardened guideways
• Bed and headstock bodies made from high-grade cast iron of enhanced mechanical properties
• Carriage travels along two guideways that guarantee precise guidance
• Spindle rested on bearings of increased accuracy class
• A wide variety of optional equipment that expands the machine tool capabilities
• All shafts and gears are carburized, hardened and ground
The Poreba Model TR135B2/6M is a heavy-duty conventional engine lathe featuring a 53-inch swing and a 6-meter (approx. 236 to 240 inches) distance between centers
Specs
New: 1988/ Rebuilt 2026
Capacity Specifications
Swing Over Bedway: 53.14" (1,350 mm)
Swing Over Carriage: 41.33" (1,050 mm)
Swing in Gap: Approx. 56.9" to 57"
Distance Between Centers: 236" to 240" (6,000 mm)
Headstock & Spindle
Spindle Speed Ranges: 5 to 500 RPM (21 ranges)
Spindle Bore: 4.72" (120 mm)
Spindle Nose: A1-15
Spindle Motor Power: 36 HP / 54 HP (27 kW / 40 kW)
Tailstock & Equipment
Tailstock Quill Diameter: 7.48" (190 mm)
Tailtock Quill Stroke: 11.8" (300mm)
Internal Taper: Morse #6
Max workpiece weight capacity: 8,000 kgs (between centers)
Standard Features: Hardened and ground bedways, automatic lubrication system,
and heavy-duty 4-jaw chuck (often 31.5" to 39.5") w 460 Volt Main Motor
Equipped With
Hardways
Inch / Metric Threading
Power Compound for Taper Turning
Taper Turning Attachment
Spindle Speeds from 5 to 500 RPM
4.75” Spindle thru Hole
6 Way Power Rapid Traverse
Heavy Duty 2 Speed Tailstock
39.5” Diameter 4-Jaw Chuck
2 Roller Type Steady rests- 27” and 15” Capacity
4 Way Toolpost
Thread Dial
Pendant Control on Carriage
Chip Pans with Coolant Pump
Auto Lube System
27/41 kw 460 Volt Main Motor
