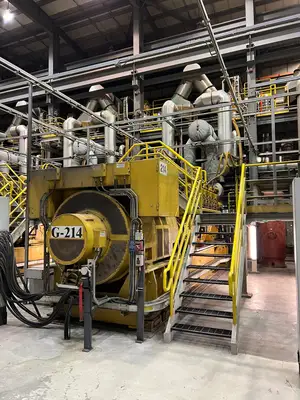

USED 2008 CATERPILLAR C280-3616

Horsepower: 6169 hp
Fuel Type: Diesel
Hours: 60,731
Mount: Stationary
kVA: 5500 kVA
Phase: 3-phase
Current Hours: 63,571 Hrs
Major Maintenance (Last Completed): Major Overhaul/Rebuild - Completed at 40,821 Hrs
Major Maintenance (Next Due): Mid-Life Overhaul - Past Due by 2,750 Hrs
This generator set was regularly maintained, with regular preventative maintenance completed at 250/500/1000/2000/4000/8000 hour intervals.
Full service history is available, upon request.
Manufacture: Caterpillar

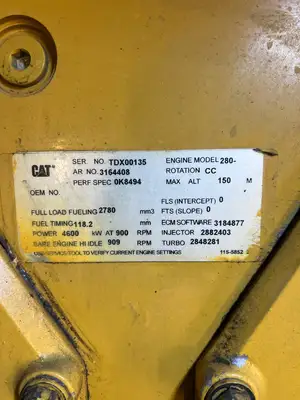

Serial No.: TDX00135
Engine Model: C280-16
Arrangement No.: 3164408
Performance Specification: 0K8494
Engine Rotation: CC
Max. Altitude: 150 m
Power: 4600 kW at 900 rpm
Bare Engine High Idle: 909 rpm
Fuel Load Fueling: 2780 cu. mm
Fuel Timing: 118.2 mm

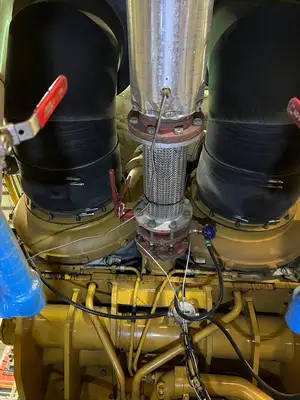

Aspiration: Turbocharged-Aftercooled
Governor: Electronic

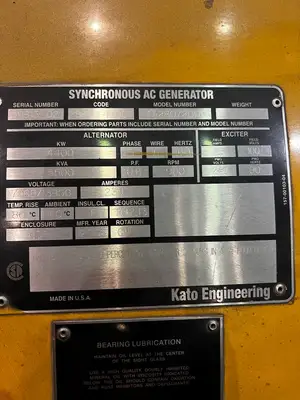

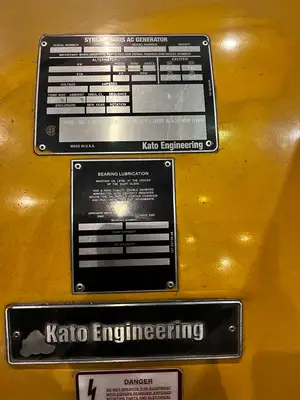

Manufacture: Kato Engineering
Serial: 19815-02
Code: 8P12-4700
Model: AA28072000
Power: 4400 kW
Apparent Power: 5500 kVA
Power Factor: 0.8
RPM: 900 rpm
Voltage: 7968/13800 Volts
Phase: 3
Current: 230 A
Rotation: CWFDE
Enclosure: ODP
PDF Engine Specifications Sheet
PDF Drawings Package
Primary:

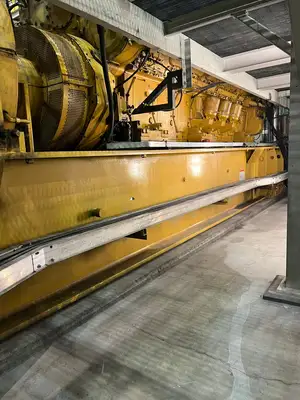

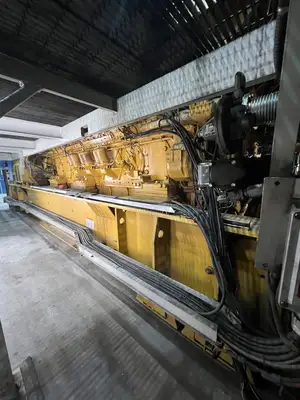

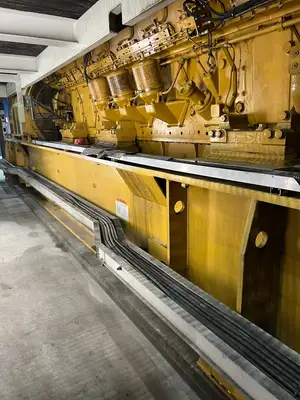

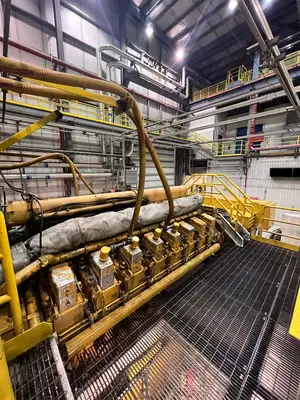

(1) CAT 4.4MW Diesel Engine C280-16
(1) KATO 4.4MW AC Generator/Alternator

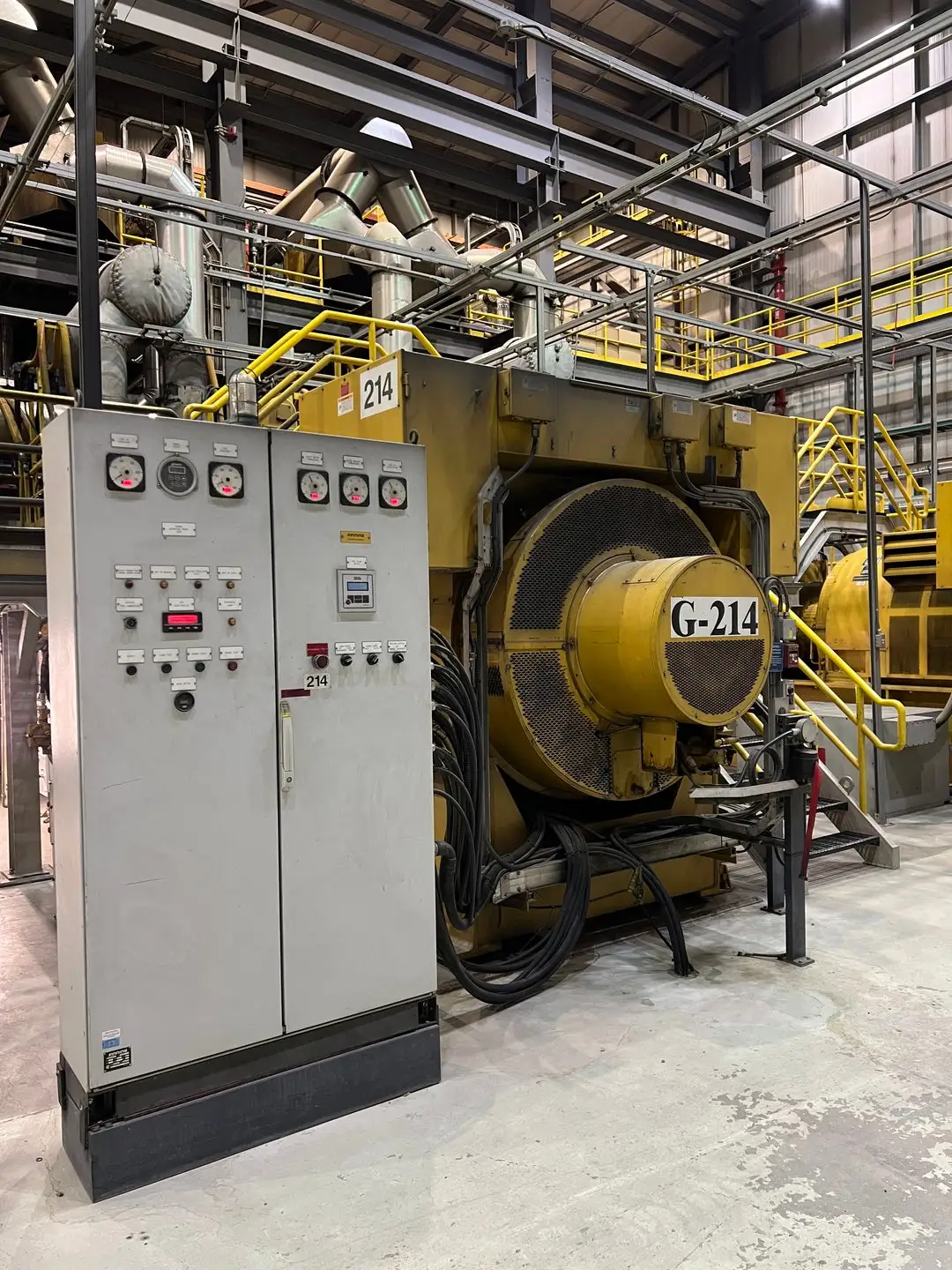

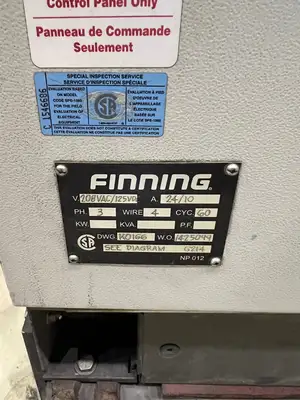

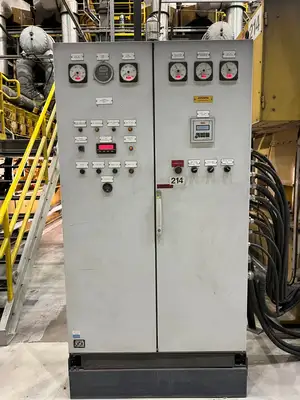

(1) FINNING Engine Interface Panel (EIP)
(1) Surge Cabinet
Auxiliary & Supporting:
Radiator Cooling Package

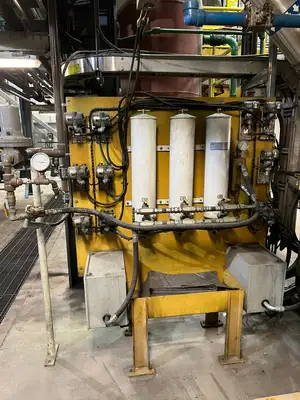

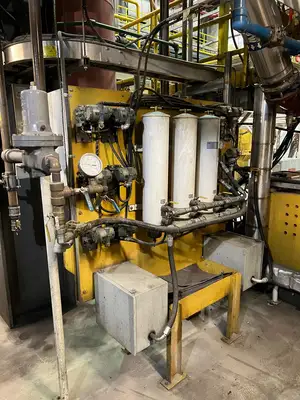

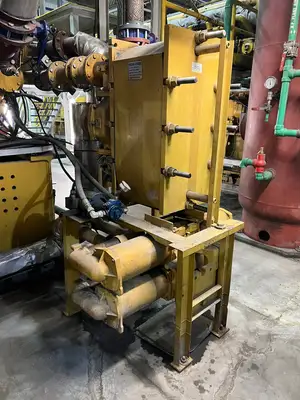

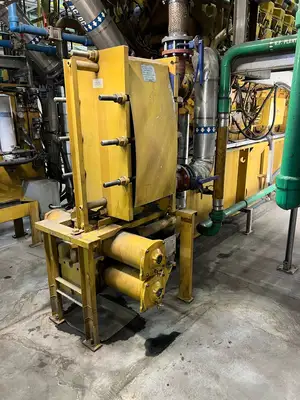

Fuel/Oil Cooling System

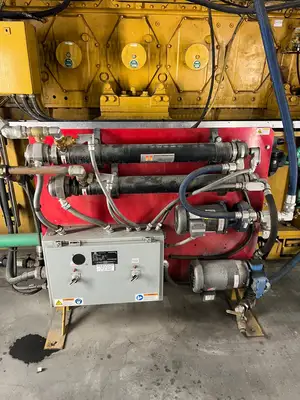

Engine Preheating System
Heat Recovery/Sootblower System
Combustion Air Intake System
Pre-Lube & Engine Fluid Pump System
SKU 156803 - 3700-IP-0094: Control System Lineup
Listing Link: Click Here
Description: CAT/FINNING 6-Genset Synchronizing/Generator Control Panels (GCP) w/ DCS & Bus-Tie Control
SKU 156802 - 3700-91-0049: 13.8kV Switchgear
Listing Link: Click Here
Description: GE/POWELL Power/Vac 15kV 3000A Medium Voltage Metal-Clad Switchgear Lineup, 15-Sections
SKU 156804 - 3700-92-050(1): 600V Motor Control Center
Listing Link: Click Here
Description: EATON/CUTLER-HAMMER Advantage 2100 MCC, 600V, 3-Ph, 1200A, 15-Sections
SKU 156805 - 3700-92-050(2): 600V Motor Control Center
Listing Link: Click Here
Description: EATON/CUTLER-HAMMER Advantage 2100 MCC, 600V, 3-Ph, 1200A, 9-Sections
SKU 156806 - 3700-92-051: 600V Motor Control Center
Listing Link: Click Here
Description: EATON/CUTLER-HAMMER Advantage 2100 MCC, 600V, 3-Ph, 1200A, 14-Sections
SKU 156807 - 3700-90-0050: 1MVA Transformer
Listing Link: Click Here
Description: DELTA 1000/1333/1533 kVA Dry-Type Transformer, 13.8 kV to 600Y/346 V, ANN/AFN Cooling
SKU 156808 - 3700-91-0050: 600V Switchgear
Listing Link: Click Here
Description: EATON/CUTLER-HAMMER MAGNUM DS LV Switchgear, 600/346V, 1600A w/ (5) 1600A Breakers
SKU 156801: 13.8kV Neutral Ground Resistor (NGR)
Listing Link: Click Here
Description: POWEROHM RESISTORS 13.8kV Neutral Ground Resistor, 8kV L-N, 40/50/60 A, 10-Second Duty
