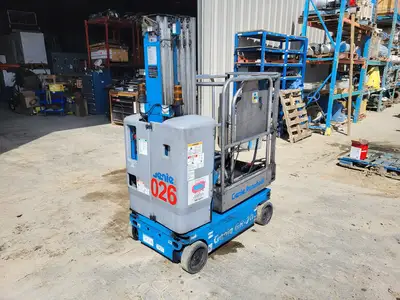

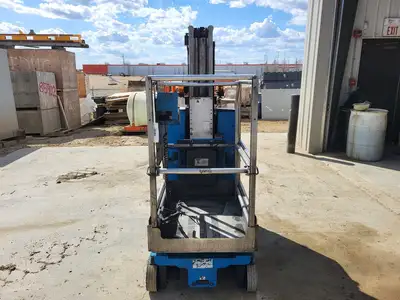

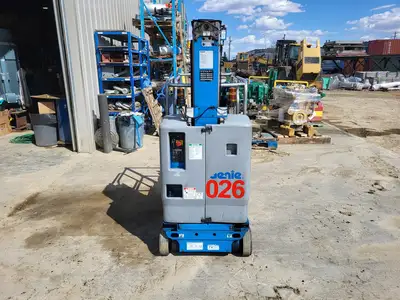

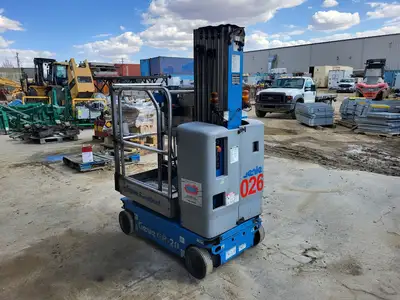

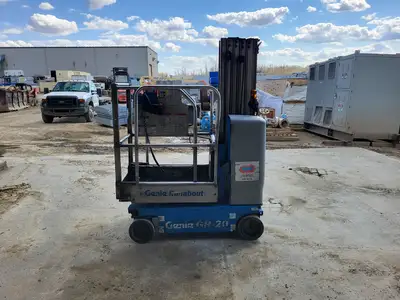

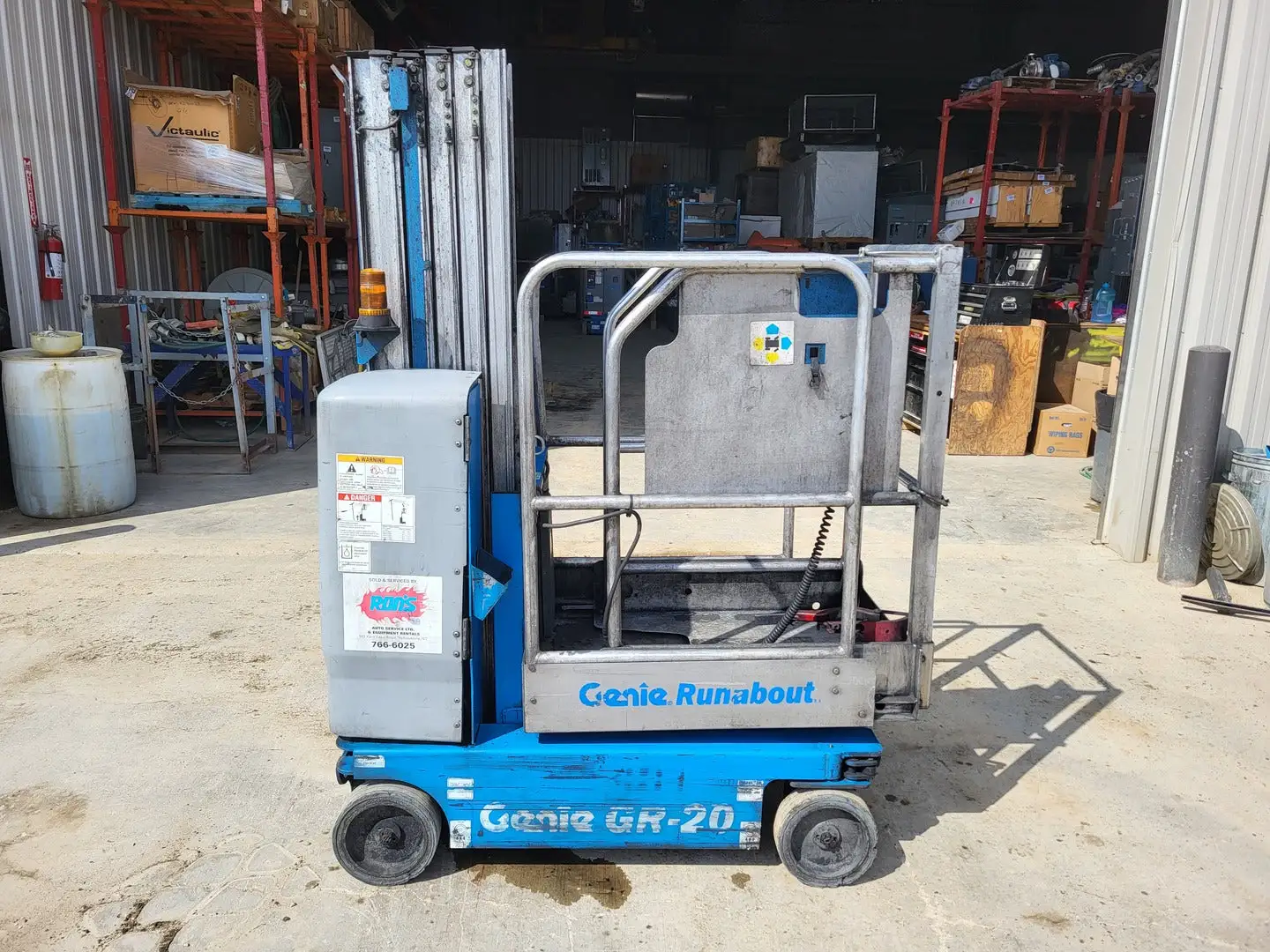

USED 2011 GENIE GR-20

Max. Lift Height: 25' 9"
Max. Lift Capacity: 350 lb
Tires: Cushion
Fuel Type: Electric
Working height max. - indoor: 25 ft 9 in // 8.02m
Working height max. - outdoor: 21 ft 6 in // 6.70m
Platform height max.- indoor: 19 ft 9 in // 6.02m
Platform height max. - outdoor: 15 ft 9 in // 4.70m
Platform dimensions (length x width) - Standard retracted: 35 x 29.5 in // 0.89 x 0.75m
Platform dimensions (length x width) - Standard extended: 55 x 29.5 in // 1.4 x 0.75m
Height - stowed: 6 ft 6 in // 1.98m
Length- stowed: 4 ft 5 in // 1.35m
Width: 2 ft 7.5 in // 0.80m
Ground clearance (center): 2.5 in // 6 cm
Maximum platform occupancy (in/out): 1/1
Lift capacity: 350 lb // 159 kg
Lift capacity - extension deck extended: 250 lb // 113 kg
Drive speed - stowed: 2.5 mph // 4.0 km/h
Drive speed - raised: 0.5 mph // 0.8 km/h
Gradeability: 30%
Turning radius - inside: 0 in // 0 cm
Turning radius - outside: 4 ft 4 in // 1.32 m
Lifting speed - raise/lower: 24/21 sec

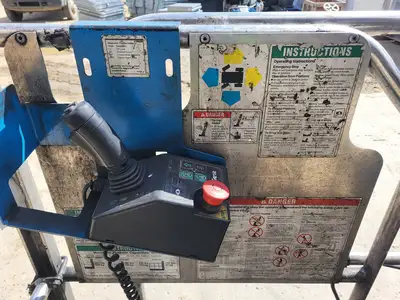

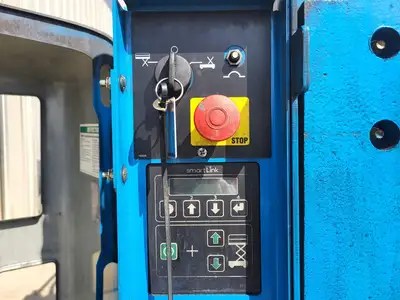

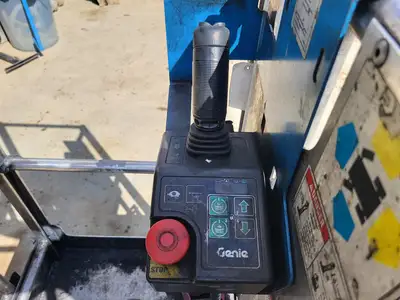

Controls - proportional: 24V DC
Tires - Solid non-marking: 10 x 3 x 8 in // 25 x 8 x 20 cm
Tilt sensor activation (front to back/side to side): 3° / 1.5°

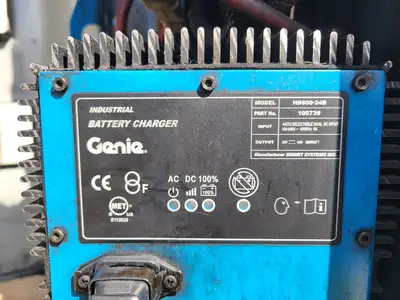

Power system: 24V (4 x 6V 225Ah)
Hydraulic tank capacity: 2.2 gal // 8.33 L
Weight: 2,513 lb // 1,140 kg
Tire load max.: 870 lb // 395 kg
Tire contact pressure: 133.8 psi // 922.8 kPa
Occupied floor pressure: 250.39 psf // 12.0 kPa
Sound pressure level (ground workstation): <70 dBA
Sound pressure level (platform workstation): <70 dBA
Vibrations: <8 ft 2 in/s2 // <2.5 m/s2
