NEW 2023 O-M NEO-20EX
Overview
2023 O-M Neo-20EX Vertical Turret Lathe, Swing 98.4", Max Machining Ht 86.4", 12 Tools, 16.5 Ton Wt Cap

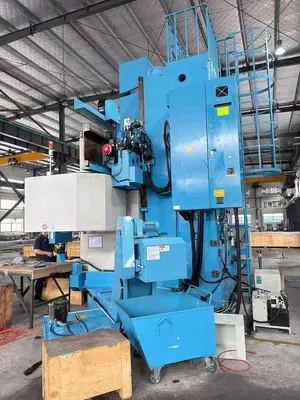

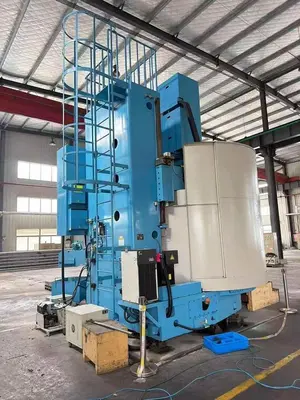

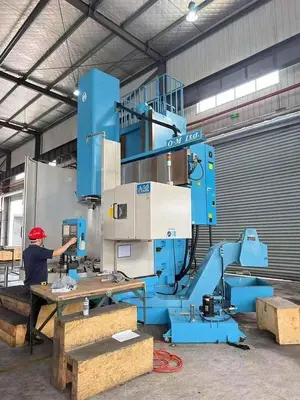

O-M NEO-20EX is a high-rigidity CNC vertical turret lathe (vertical boring mill) with a 78.74-inch (2,000 mm) table diameter designed for heavy-duty precision machining.
Specs
MACHINE CAPACITY
Table diameter ø 78.74″ ø 2,000 mm
Maximum turning diameter ø 98.43″ ø 2,500 mm
Maximum swing ø 98.43 ø 2,500 mm
Maximum cutting height 78.74″ 2,000 mm
Maximum load on table 33,070 lbs 15,000 kgs
Maximum height from table top to gauge line 86.61″ 2,200 mm
Maximum torque of table 23,600 ft. lbs 32,000 Nm
Maximum cutting force 5,620 lbs 25,000 N
CROSSRAIL
Elevating travel of crossrail 47.24″ 1,200 mm
Crossrail positioning step 7.87″ 7 step 200 mm 5 step
TOOL HEAD
Horizontal travel (X-axis)
To right from table center 69.29″ 1,760 mm
To left from table center 3.93″ 100 mm
Vertical travel (Z-axis) 43.31″ 1,100 mm
Ram size 8.27″ x 8.27″ 210 x 210 mm
Minimum hole dia. allowing passage of ram ø11.81″ ø 300 mm
Turning tool shank size 1.26″ x 1.26″ 32 x 32 mm
SPEED
No. of table speeds 2 x infinitely variable
Table speed range Low 1.0 ~ 53.1 min-1
High 3.8 ~ 200 min-1
Inching 2min-1
Rapid traverse (X-axis) 393.70 inch/min 10,000mm/min
Rapid traverse (Z-axis) 393.70 inch/min 10,000mm/min
Manual feed rate (X, Z axes) 0~141.73 inch/min 0~3,600mm/min
Cutting feed per rev. 0.0001~20″ 0.01~500 mm
Cutting feed rate 0.04~141.73″ 1.0~3,600mm/min
Elevating speed of crossrail 11.81 inch/min 50Hz: 300mm/min
14.17 inch/min 60Hz: 360mm/min
MOTORS
Drive motors for turning (continuous/30min) 60/75 HP 45/56 kW
Milling spindle motor (continuous/30min) 20/25 HP 15/18.5 kW
Axis feed motor
X-axis: AC servo 2.5 HP 1.8 kW
Z-axis: AC servo (with brake) 4 HP 3.0 kW
ATC magazine motor 1 HP 0.75 kW
Crossrail elevating motor 7 HP x 4P 5.5 kW x 4P
Others 4 HP total 3.0 kW
ATC DEVICE
Tool selection system Fixed – address, shortest path random No. of tools stored 12 pieces
Maximum length of tool holder (from mounting face) 17.72″ 450 mm
Maximum weight of tool holder (with holder base) 110 lbs/piece 50 kg/1pce
Maximum protrusion of tool stored in magazine (from ram center to tool end) ID side 6.89″ 175 mm
OD side 6.89″ 175 mm
MACHINE SIZE
Machine weight 48,510 lbs 22,000 kgs
Dimensions 78.4″ x 98.43″ 2000mm x 2500mm
POWER SOURCES
Electric power supply 220 V±10%, 60 Hz, 3 phase
Operating voltage AC 100V, DC 24V
Power capacity 100 kVA
Equipped With
Standard Features OM CNC Vertical Boring Mill Model NEO 20EX

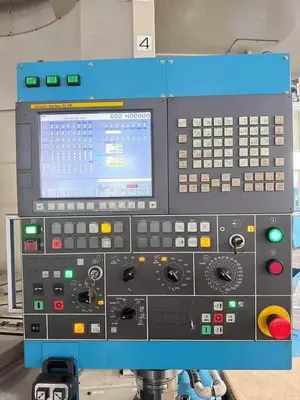

Controller: FANUC 0i-Tf CNC Controller

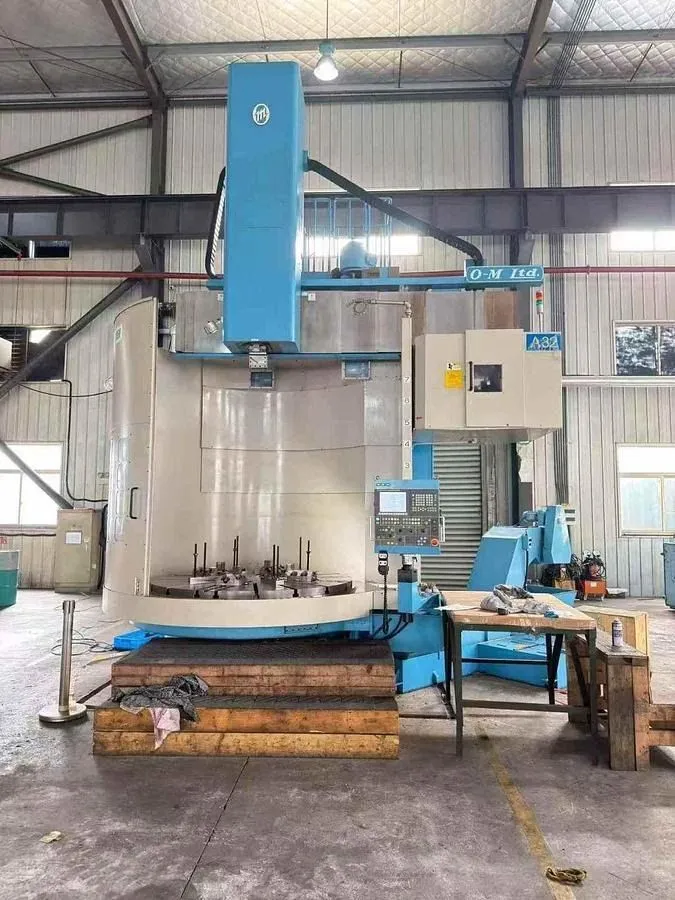

Chuck: Independent 4-jaw chuck table

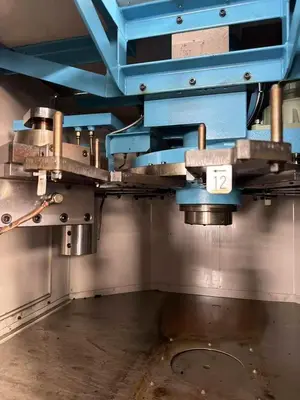

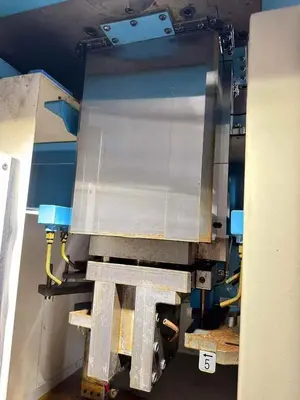

Tool Changer: 12-station automatic tool changer (ATC)
Six (6) standard tool holder package
Chip cover (manual open and shut)
Maintenance tools kit
Foundation parts kit (Includes foundation plates, leveling blocks, and anchor bolts)
Automatic forced lubrication system
Work light
Signal tower light (3-steps LED type)
Yellow: when the machine is put in a stationary condition on automatic operation. (M00, M01, M02, or M30 and end of single block)
Green: During automatic operation
Red: Alarm

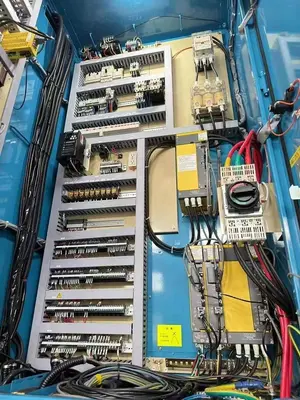

Electric spare parts
Crossrail traveling
X-axis telescopic cover
Table lubricating oil cooling device (Combination of table lubricating pump)
Automatic power-off
