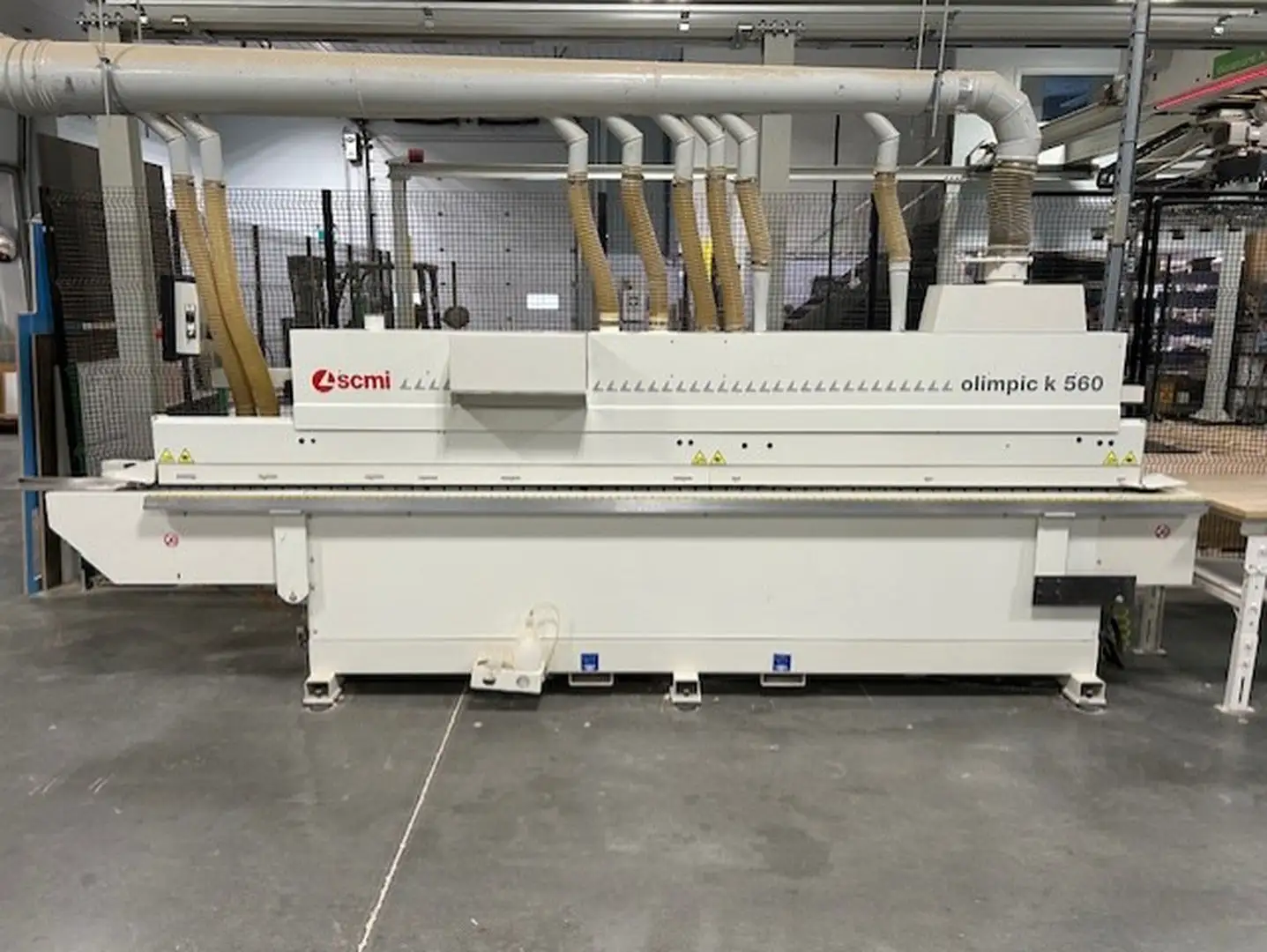

USED 2017 SCM OLIMPIC K 560

Control System: Startouch
CNC: Yes
Voltage: 380 volts
Phase: 3-phase
Aggregates
Gluing unit
Pre-milling unit RT-V
End cutting unit K/SEL
Trimming unit: possibility to trim 2 different radius edges, thin edges and solid wood edges in 2 versions:
Automatic unit adjustment through 4 NC-controlled axes
Pneumatic positioning
Rounding unit ROUND X: simultaneous trimming and rounding operations , distance between panels of 600 mm
Edge scrapping unit: possibility to trim 2 different radii with the NC automatic set up of 4 axes

Technical specifications
Panel thickness: 8 - 60 mm
Edge thickness: 0,4 - 8 (12) mm
feed speed: 12 / 18 m/min
compressed air: 6 bar

Statistics
Switch on time:
Partial: 17,140 h
Absolute: 22,996 h
Machined panels:
Partial: 1,595,902 pcs
Absolute: 1,595,902 pcs
Machined edging:
Partial: 12,866.7 m
Absolute: 156,250.7 m
Track:
Partial: 17,923.3 km
Absolute: 17,923.3 km
