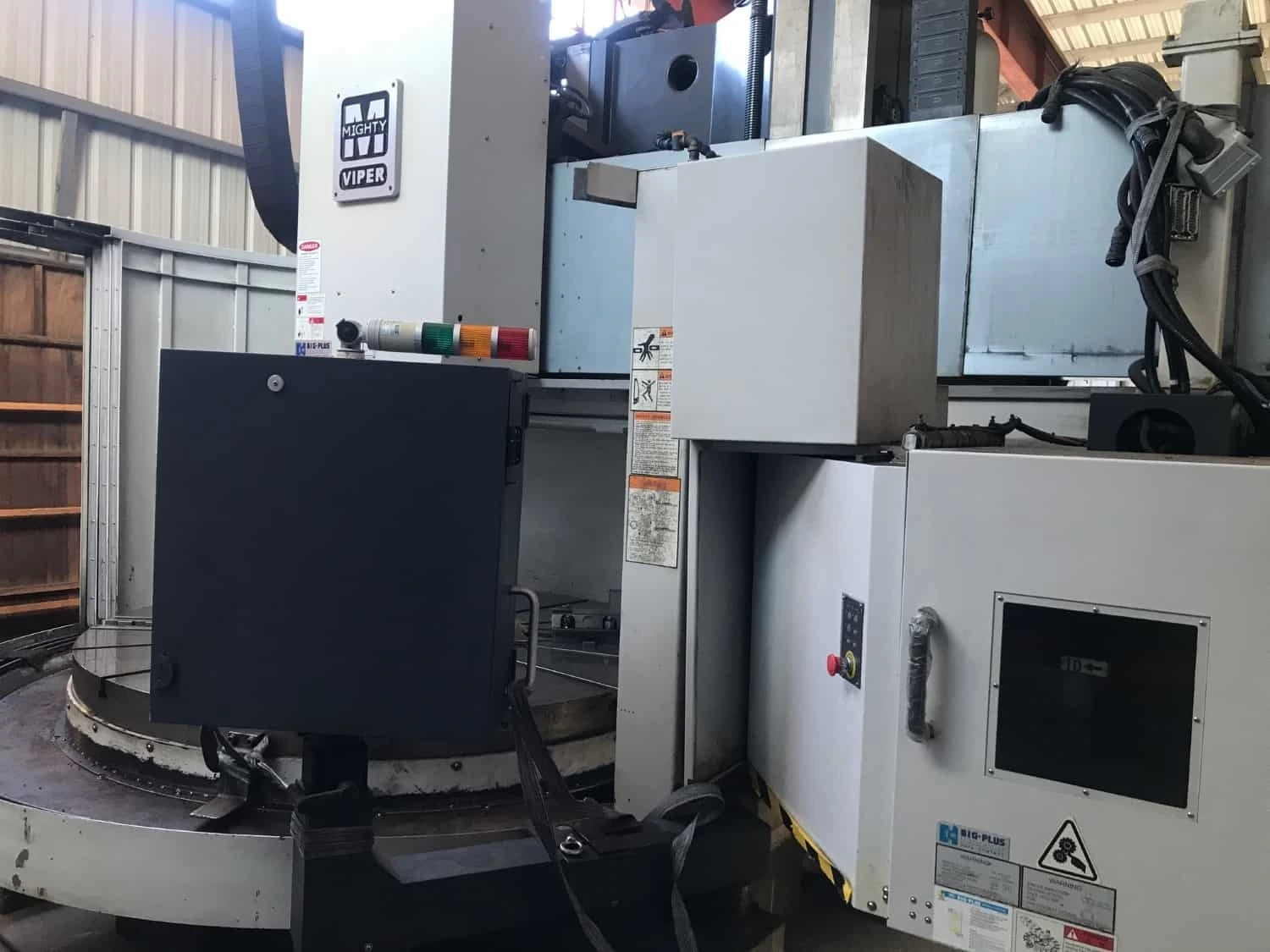

NEW 2026 MIGHTY VIPER VTL-20/25M
Overview
2026 MIGHTY VIPER CNC VTL-20/25M
MIGHTY USA, INC. is a worldwide machinery distributor
founded in 1980, and one of the leading machine tool builders
with an ISO 9001:2008 certification. We offer total manufacturing
solutions with aftermarket support for providing quality machine
tools to diverse machining industries.
As a core machinery company, Mighty USA Inc., innovates and markets manufacturing
technologies that help its machining manufacturers to produce some of the world’s most
advanced machine tools.
To support customers around the world, Mighty USA, Inc. has a network of factories and
offices in the United States, Taiwan, and Pacific Rim countries.
Mighty USA’s mission is to be a leading provider in design and to build the most
dependable machines worldwide – through innovation and enhancement of customer
productivity with manufacturing and service solutions. We believe our customers’
business results come first
Specs
CAPACITY
Maximum Swing Ø2500 mm 98.43"
Maximum Turning Diameter Ø2440 mm 96.06"
Maximum Turning Height 1500 mm (1800 mm opt.) 59.06"
TABLE
Table Size Ø2000 mm 78.74"
Table Load 20,000 kg 44,000 lbs
Table Motor Power (30 min) 45 kW 60.35"
Table Speed (2-step) 1 ~ 73 / 65 ~ 200 rpm
Maximum Table Torque 24,600 N.m
Maximum Cutting Force 24,600 N
TRAVELS
X-Axis Travel 1785 mm 70.28"
Z-Axis Travel 1000 mm (1200 mm opt.) 39.37"
RAM
Ram Size 230 x 230 mm 9.06" x 9.06"
Minimum ID for Ram Pass Ø330 mm 12.99"
CROSSRAIL
Crossrail Travel 800 mm 31.5"
Crossrail Levels 5
Distance between Levels 200 mm 7.87"
AUTOMATIC TOOL CHANGER
Number of Tool Stations 18 (9 live - 9 static)
Tool Taper #50 (Big Plus)
Maximum Tool Length 450 mm 17.72"
Shank Size of Static Tool 32 x 32 mm 1.26" x 1.26"
Maximum Tool Projection ID 175 mm 6.89"
Maximum Drill Diameter
(Carbon Steel Workpiece) Ø50 mm 1.97"
Maximum Tap Diameter
(Carbon Steel Workpiece) M30
Maximum Torque for Drilling 196 N.m
Live Spindle Motor 15 kW 20.12"
Live Spindle Speed 2,000 rpm
Table Index Speed 3 rpm
AXIS DRIVE SYSTEM
Rapid Feedrate (X/Z Axes) 12 / 10 m/min
Servomotor (X/Z Axes) 6 / 6 kW 8HP
Cross Rail Elevatig Motort
Ballscrew - X Axis (dia. x pitch) Ø63 x P12 mm
Ballscrew - Z Axis (dia. x pitch) Ø50 x P10 mm
Torque (XZ Axes) 114 / 114 N.m
MISCELLANEOUS
Power Requirement (220 V) 100 kVA
Machine Dimensions 6370 x 4300 x 5700 mm 250.79" x 169.29" x 224.41
Machine Weight 32,500 kg 71,500 lbs
Equipped With
Diagrams
♦ Leveling Blocks and Bolts
STANDARD ACCESSORIES
♦ Fanuc 0i-TF Plus Control
♦ Ø79" Independent 4-Jaw Manual Table Chuck
♦ 9"x9" Carbon Steel Ram
♦ Adjustable Crossrail with 5 Levels
♦ 60 HP (30-min) Spindle Motor for Table
♦ 12-station ATC for VTL-20/25 (12 static)
♦ 18-station ATC for VTL-20/25M (9 live, 9 static)
♦ Chip Conveyor
♦ Coolant System
♦ Full Guarding
♦ Remote Manual Pulse Generator
♦ Centralized Automatic Lubrication System♦ Absolute Encoders on all 3 Axes
♦ Tri-Color Status Light
♦ Work Light
♦ Heat Exchanger in Electrical Cabinet
♦ RS-232 Interface
♦ PCMCIA Memory Card Slot
♦ USB Port
♦ Operation Manuals and Electrical
OPTIONS AND UPGRADES
PERFORMANCE UPGRADE
Cross roller bearings under the table for increased C axis accuracy $50,000.00
Static Model without Live Tooling and C-Axis (discount) (-) $50,000.00
High Column with Riser for 70.8" Clearance (from 59.0") $24,000.00
Z axis travel upgrade from 39.3" to 47.2" $45,000.00
Tool Setter $7,000.00
Renishaw Parts Probe RMP60 with inspection software
(training not included) $18,000.00
Field training on parts probe $6,000.00
Heidenhain Linear Scales on X and Z axes with 5 µm resolution $21,000.00
Manual 90° angular head; 50 taper-to-50 taper with interface $24,000.00
Manual 90° angular head; 50 taper-to-40 taper with interface (Tecnara) $40,000.00
