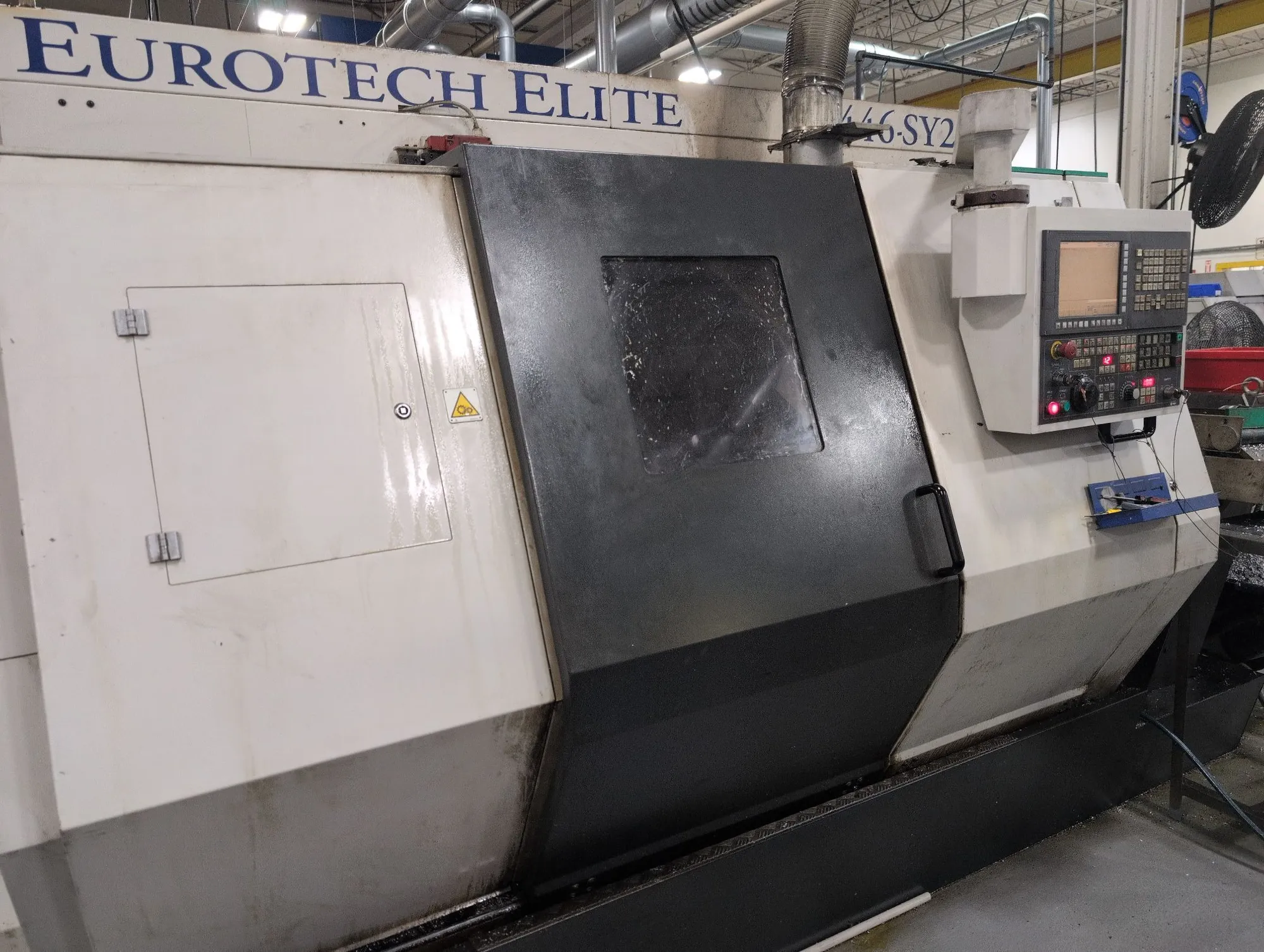

USED 2014 EUROTECH ELITE TROFEO B446-SY2

Capacity & Swing
• Bar Capacity: 2" (51 mm)
• Max Machining Diameter: 9.6"
• Swing Over Diameter: 20"

Main Spindle
• Spindle Speed: 5,000 RPM
• Spindle Nose: ASA-5
• Spindle Bore: 2.17"
• Spindle Motor: 20 HP
• C-Axis: 0.001 Degree

Sub-Spindle
• Spindle Speed: 5,000 RPM
• Spindle Nose: ASA-5
• Spindle Bore: 2.17"
• Spindle Motor: 15 HP
• C-Axis: 0.001 Degree

Turrets & Tooling
• Turret Stations: Upper & Lower, 12 stations each (24 total)
• Live Tooling Power: ~5 HP

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
