USED 2006 CITIZEN L20VIII
Overview

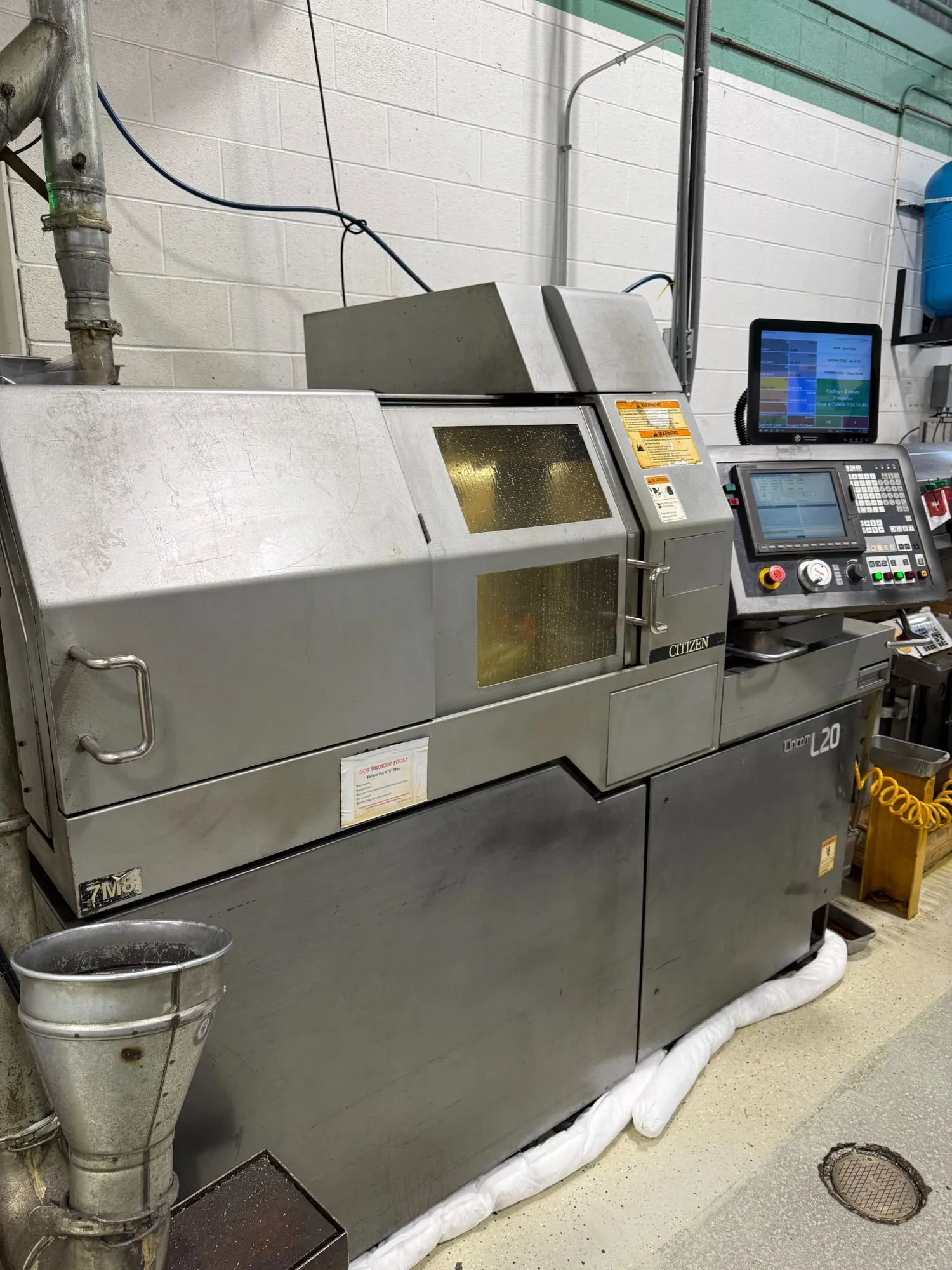

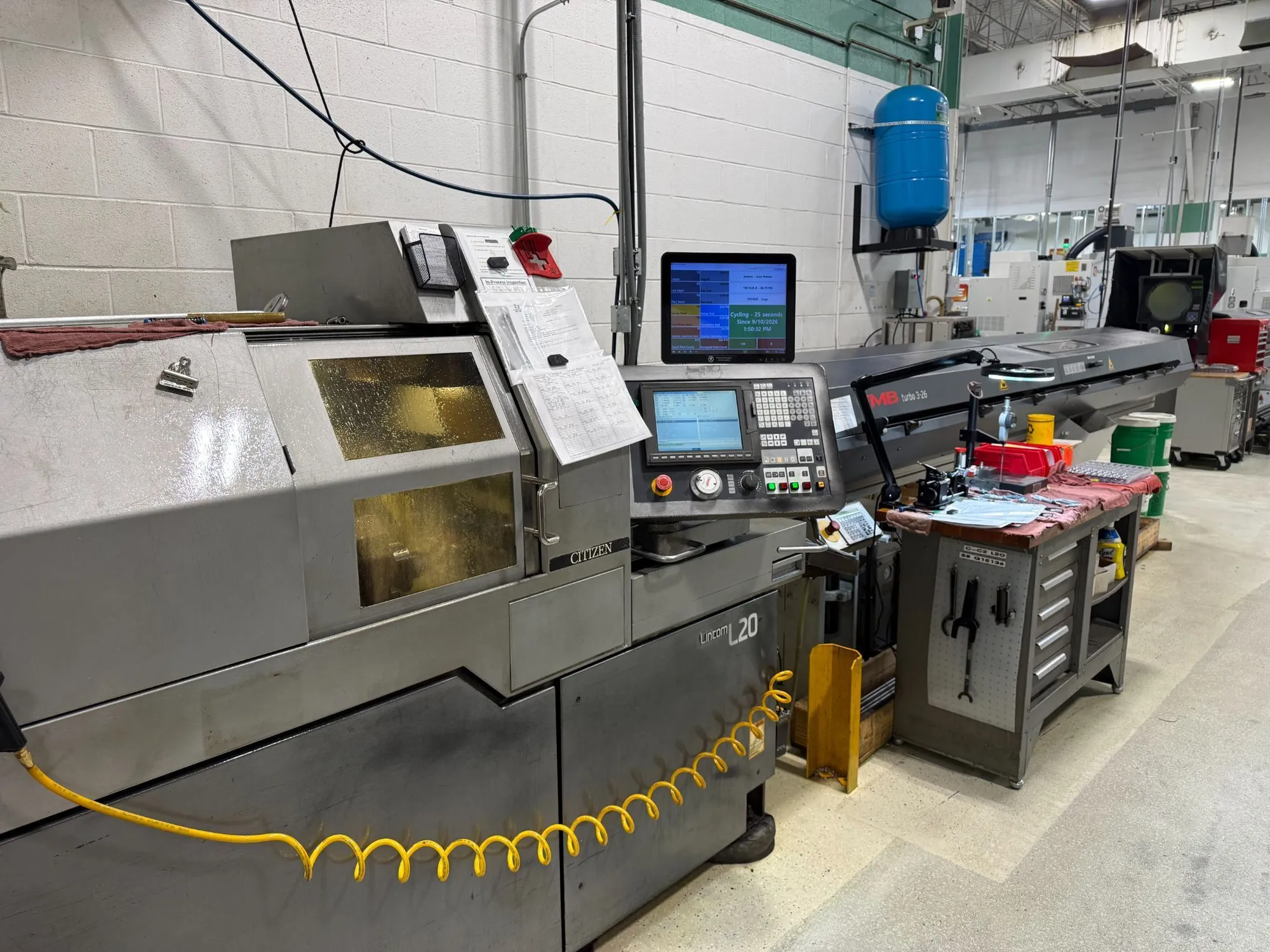

Citizen L20VIII CNC Swiss Lathe, with FMB barfeed and high pressure
Specs
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and
accessories prior to purchase.
General Specifications:
Machining Diameter: 0.812"
Machining Length per one Chuck: 8.1"
Drilling Diameter: Up to .394"
Spindle Speed: 200 - 10000 RPM
Main Spindle Indexing: 1 degree (C-axis option)
Back-work:
Chucking Diameter of Pick-off Spindle: .812"
Pick-off Spindle Speed: 200 - 8000 RPM
Pick-off Spindle Motor: 2 HP
Rotary Tool:
Rotary Spindle Speed: 200 - 5000 RPM
Rotary Tool Motor: .5 HP
Number of Tools Mounted: 16
OD / Front ID / Back ID / Live Tools: 6/3/3/4
Power Consumption: 6 Kva
Machine Dimensions: 65" x 37"
Machine Weight: 3900 lbs.
Equipped With
Equipped with:
Part Conveyor
FMB Barfeed
High pressure unit
2 live tools on the backworking
live face drill 3 position tool
PM on the machine was completed in August 2026
Running hours are 66756 and cutting 47889
