USED 2017 EDGE PATRIOT 551
Overview

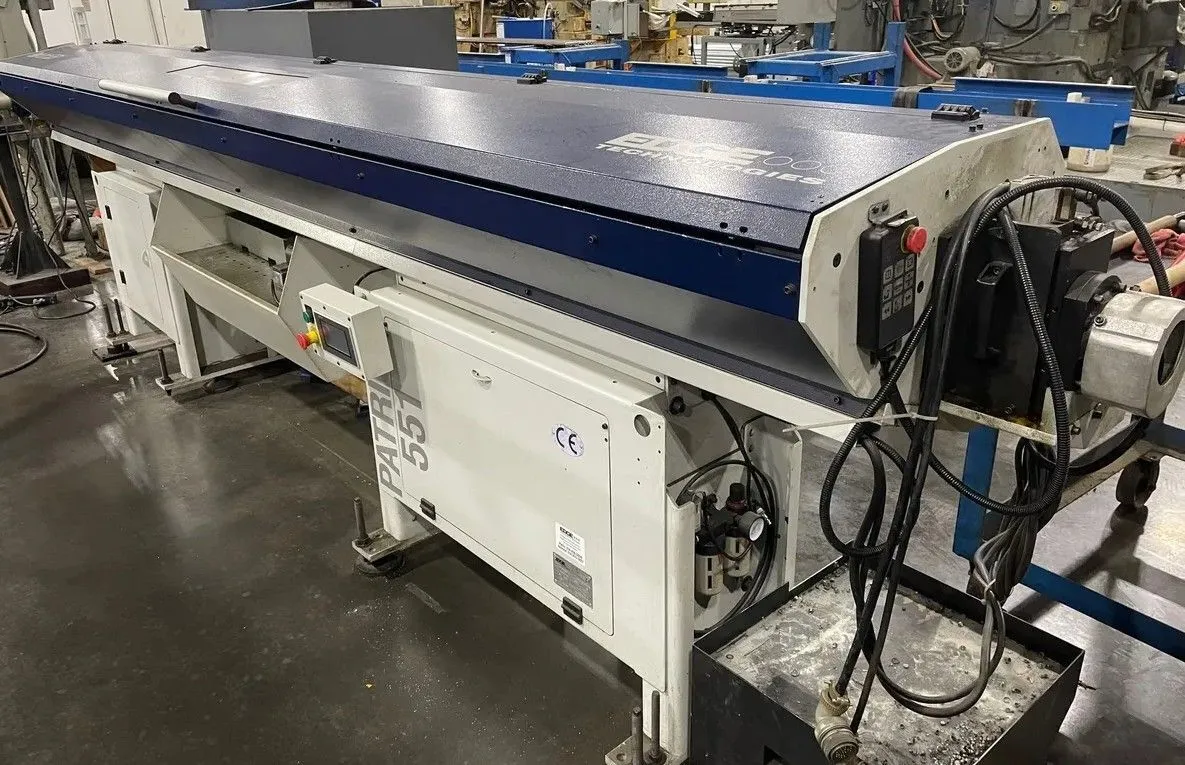

EDGE PATRIOT 551 Magazine Type Bar Feed, New in 2017
Available in 6' or 12' configurations
Fixed Headstock
Specs
General Specifications:
Capacity 2.0079"
Bar Length 12'
Bar diameter capacity-no bar preparation: 5 mm to 50.8 mm (2.000”)
Bar diameter capacity-with bar preparation: 5 mm to 54.5 mm (2.145” front ejection only)
Maximum bar length: 3800 mm (12 feet 6 inches)
Minimum bar length: 1000 mm (39.400”)
Maximum remnant length: 406 mm (16.000”)
Magazine rack capacity: 12”
Bar loading cycle time: 35 seconds for 12-foot bar
Material straightness specification: .007” TIR/foot of material (V blocks, 3 points equidistant)
Feed force (pusher torque): max 450 N, adjustable
Forward feed rate: 750 inches/minute max, adjustable
Return feed rate: 1000 inches/minute max, adjustable
Power consumption: 1.5 kW – (2 kVA)
Operating voltage: 230V/60Hz 3-phase
Control voltage: 24V DC
Oil capacity: 57 liters (15 gallons)
Equipped With
Bar diameter capacity: 5 mm to 54.5 mm (.196” to 2.145”)
Automatic loading magazine — 12 linear inches of rack capacity
Double pusher, space saving design
Polyurethane guide channel system — noise & vibration dampening
Quick change guide channels and pusher
Hydrodynamic support via high volume oil flow into channels
Mitsubishi motion control — dependable and user friendly, allows easy bar feeder parameter changes
36 part program memory storage for quick changeover
(1) Guide channel set to be chosen by customer. Several sizes to choose from, each handling a specific stock range. See chart (spindle liner required if channel set is not lathe’s max capacity)
(1) Front hard nose to match guide channel set
(1) O.D. bar stock collet (to be chosen by customer, specific collet needed for each stock diameter)
(1) Set bushing blocks for outboard anti-vibration device – to be chosen by customer based on bar diameter
Automatic remnant retraction, self centering gripper
Custom lathe cable and interface plugs
**Previously interfaced with a Mazak QTU250SY
