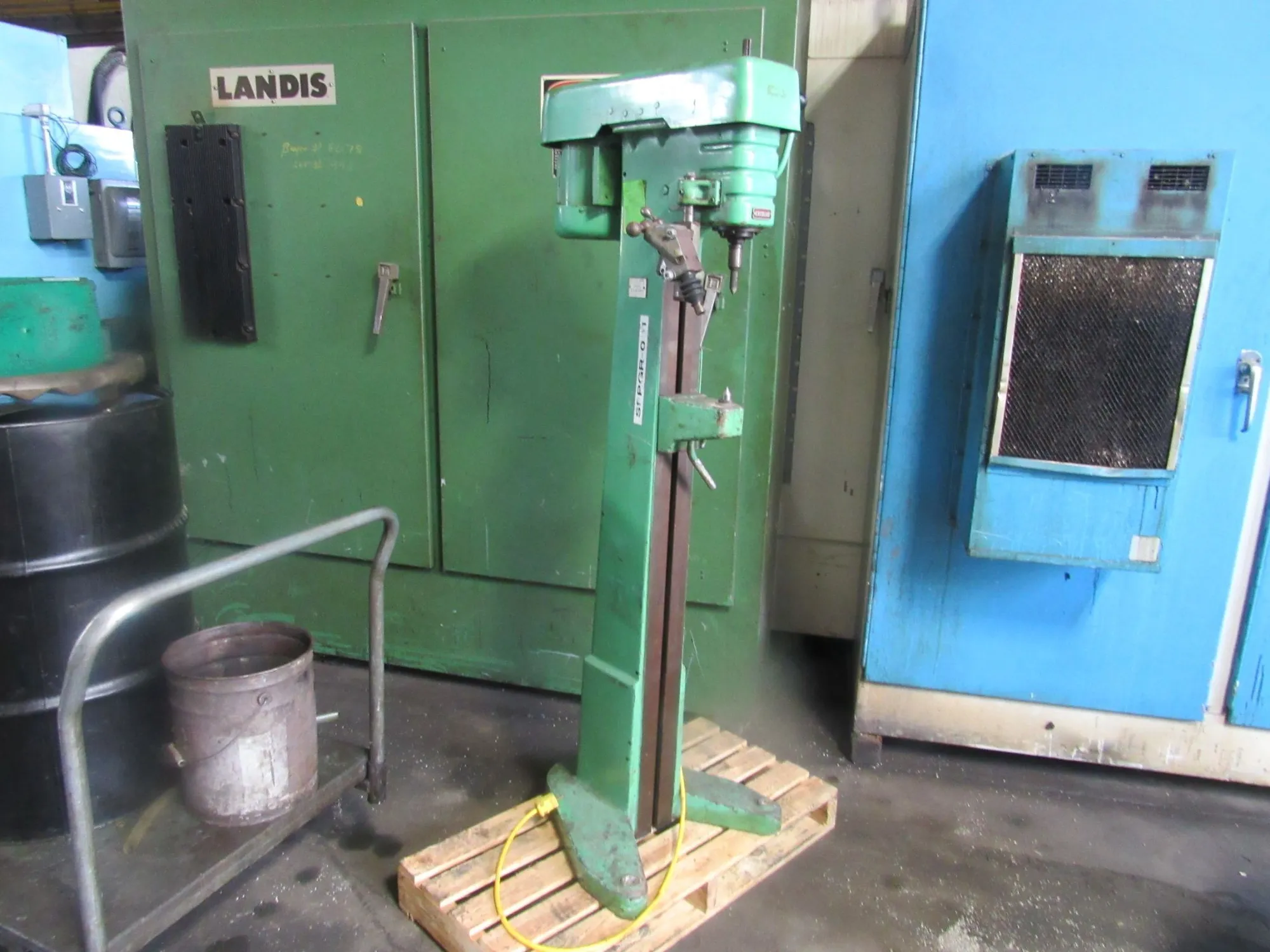

USED 1974 EX-CELL-O 174

#174 EXCELLO MODEL CENTER LAPPING MACHINE

S/N 1740384 Year: 1974

STANDARD SPECIFICATIONS
Workpiece Length...............................36”
Workpiece Diameter.............................10”
Center Diameter................................15/16”
Stone Diameter.................................1”
Distance Column To Spindle.....................5 ¼”
Lapping Stroke.................................1 ½”
Dresser Stroke.................................1 ¼”
Dresser Adjustable Angle.......................60-120º
Dresser Fixed Diameter.........................1”
Tailstock Center...............................#2 MT
Spindle Speeds.......................665,1200,2300,4300 RPM

EQUIPPED WITH
½ HP spindle motor.
3/60/230-460 Volt.
Motor dresser.

Specifications are deemed accurate, however, subject to verification or prior sale.
