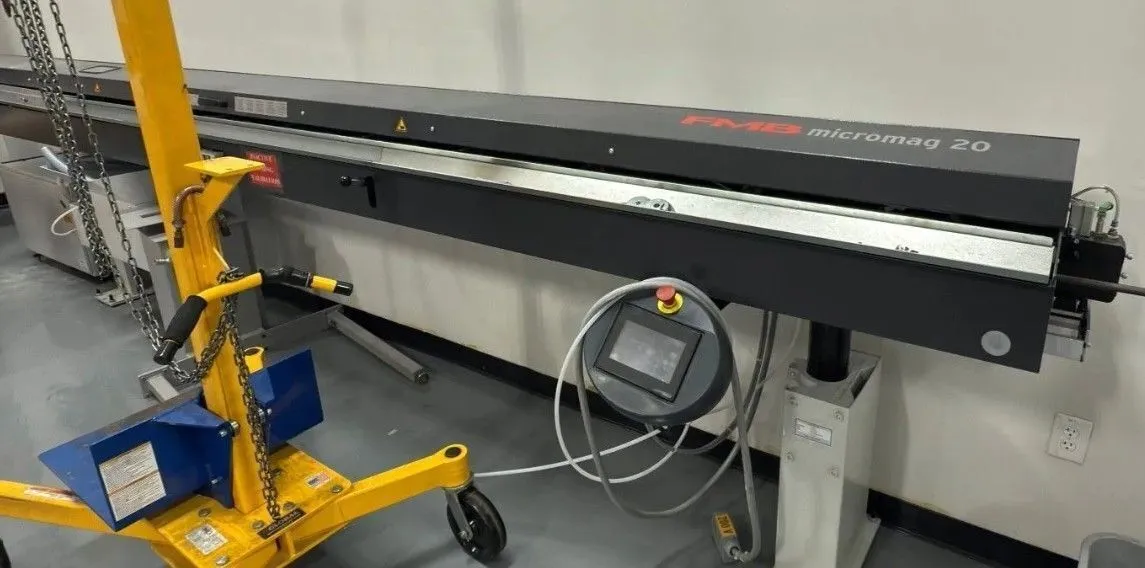

USED 2020 FMB Micoromag 20
Overview
FMB Micromag 20 Magazine Barfeed, New in 2020
Configured for Star or Tsugami
Specs
General Specifications:
Bar Diameter: 0.8mm – 22mm (0.031” – 0.866”)
Bar Length: 1000mm – 3800mm (39.4” – 12’5”)
Magazine Rack Capacity: 228.6mm (9”) or 21 bars 4mm or less
Maximum Remnant Length: 320mm (12.59”)
Bar Loading Cycle Time: Approx. 25 sec for 12’ bars
Feed Force (Pusher Torque): Max 300 N, adjustable
Forward Feed Rate: 300mm/sec (710in/min) max, adjustable
Return Feed Rate: 601mm/sec (1420in/min) max, adjustable
Power Consumption: 1.5 kW/2 kVA
Operating Voltage: 230-400 V/60 Hz – 3 phase
Control Voltage: 24V DC
Oil Capacity: 50 liters (13.2 gallons)
Oil Viscosity:
-ISO 64 cST – Machine oil
-ISO BG32 – Air oil
Compressed Air Supply: 6 bar (90 psi)
Compressed Air Consumption: ~3 liters per loading cycle
Machine Weight (w/out Oil): 885 kg (1950 lbs)
Material Straightness Specification: 0.007” TIR/foot of material (V blocks, 6’ equidistant)
Equipped With
*Configured for Star or Tsugami*
5mm Channel Set
20mm Channel Set
(1) Universal telescoping front nose and (1) nylon nose I.D. liner specific to pusher
(1) O.D. bar stock collet to be chosen by customer (specific collet needed for each stock diameter)
Swiss headstock synchronization device
Automatic remnant retraction, self-centering gripper
Custom lathe cable and interface plugs
Polyurethane bushing blocks (2 pieces)
Spindle tube nose assembly – available in 5mm, 7mm, 10mm
