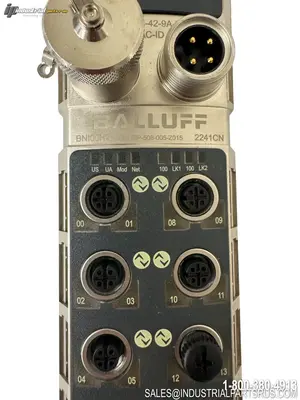

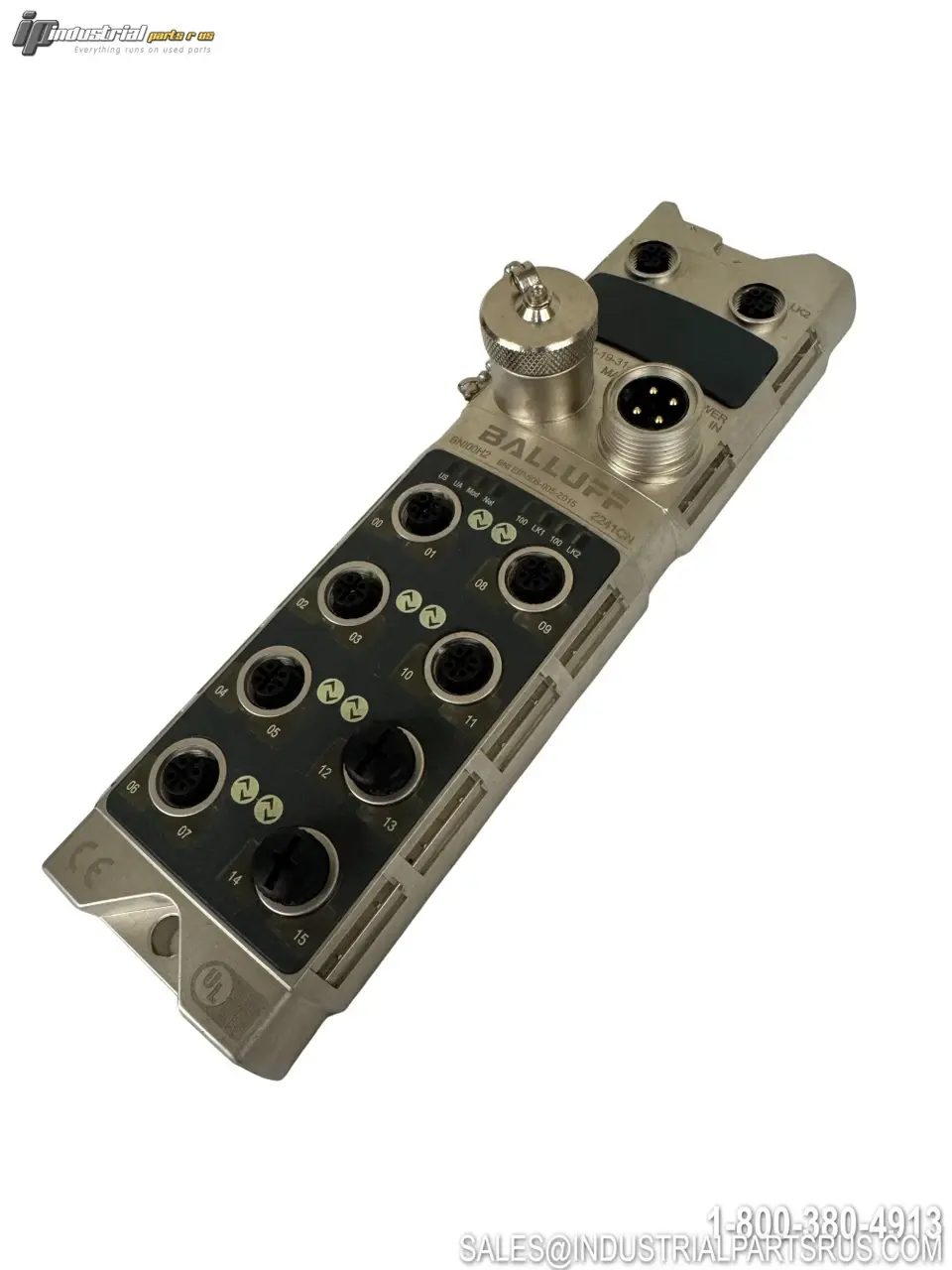

USED BALLUFF BN100H2 BNI EI-508-005-Z015

The Balluff BNI00H2 (BNI EIP-508-005-Z015) is an EtherNet/IP IO-Link master network block designed for decentralized I/O and IO-Link device integration in industrial automation environments. It features 8 IO-Link Type A auxiliary ports, 16 configurable PNP digital inputs/outputs, and an IP67-rated die-cast zinc housing suitable for harsh industrial conditions. This module is listed as discontinued by Balluff; the recommended successor is the BNI00HM (BNI EIP-508-005-Z015-013).
Specification
Value
Brand
Balluff
Order Code / Model
BNI00H2 / BNI EIP-508-005-Z015
Product Type
Network Block / IO-Link Master
Interface
EtherNet/IP
Auxiliary Interfaces
8x IO-Link
IO-Link Port Class
Type A
IO-Link Version
1.1
Digital Inputs
16x PNP, Type 3
Digital Outputs
16x PNP
Configurable Inputs/Outputs
Yes
Output Current Max.
2 A (short-circuit proof and overload-proof)
Current Sum US / Sensor
9 A
Current Sum UA / Actuator
9 A
Operating Voltage
18...30.2 VDC
Display
No
Connection (COM 1)
M12x1-Female, 4-pin, D-coded
Connection (COM 2)
M12x1-Female, 4-pin, D-coded
Connection (Supply Voltage IN)
7/8"-Male, 4-pin
Connection (Supply Voltage OUT)
7/8"-Female, 4-pin
Connection Slots
8x M12x1-Female, 5-pin, A-coded
Housing Material
Zinc, Die Casting
Dimensions (W x H x L)
68 x 37.9 x 224 mm
Ambient Temperature
-5...70 °C
IP Rating
IP67
Approvals / Standards
CE, EAC, cULus, IO-LINK, WEEE
Product Status
Discontinued (Successor: BNI00HM / BNI EIP-508-005-Z015-013)
We warranty all items for 30 days from date of purchase.
