Milltronics VM2515 – 2018
Overview

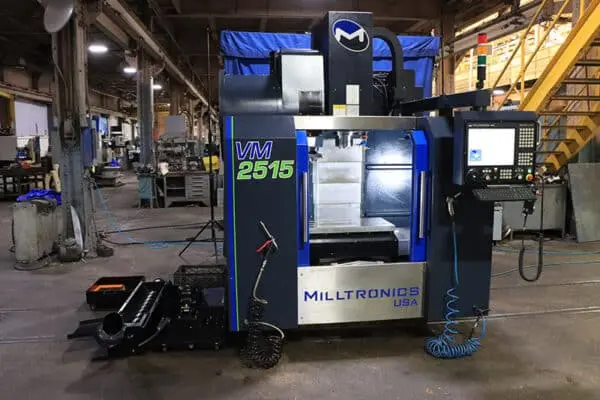

2018 Milltronics VM2515 CNC VMC
Specs
X-AXIS TRAVEL ……………….. 25″ 635mm
Y-AXIS TRAVEL ……………….. 15″ 381mm
Z-AXIS TRAVEL ……………….. 20″ 508mm
TABLE SIZE ………………….. 36″ X 16″
SPINDLE NOSE TO TABLE ………… 4″ – 24″
TABLE LOAD CAPACITY ………….. 3,140 LBS
SPINDLE SPEED ……………….. 10,000 RPM
SPINDLE MOTOR ……………….. 17 HP
SPINDLE TAPER ……………….. CAT 40 BIG-PLUS
TOOL MAGAZINE CAPACITY ……….. 20 ATC
MAXIMUM TOOL DIAMETER/WEIGHT ….. 3.5″ / 15.4 LBS
RAPID TRAVERSE RATES …………. 945 IPM
MACHINE DIMENSIONS: ………….. 80″ x 101″ x 101.5″H
MACHINE WEIGHT: ……………… 6,250 LBS
EQUIPED WITH:
– MILLTRONICS 9000 CONTROL with TOUCHSCREEN
– RIGID TAPPING, SPARE “M” FUNCTION w/CNC “WAIT” CHANNEL
– USB PORT & ETHERNET
– REMOTE JOG HANDLE & AUXILARY INDUSTRIAL GRADE KEYBOARD
– CHIP AUGER
– COOLANT SYSTEM
– 20 TOOL CAPACITY SIDE-MOUNTED TOOL CHANGER
