8,300-Gallon Mueller 304 Stainless Fermentation Tank – Large-Capacity Jacketed Process Vessel

Manufacturer Information
Mueller
Mueller manufactures stainless steel tanks and process vessels used in beverage, brewing, dairy, food, and other liquid-processing industries. Jacketed fermentation vessels are designed to provide large-volume product containment with controlled cooling for fermentation, conditioning, and temperature-sensitive processing.
This Mueller 8,300-gallon fermentation tank, built in 2010, features 304 stainless steel construction, a pressure-rated vessel, three independent cooling-jacket zones, cone-bottom discharge, and four-leg mounting.
Description

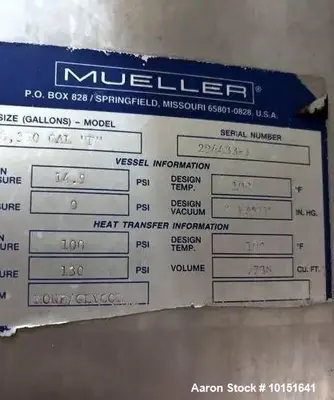

Available for sale is a used Mueller 8,300-gallon 304 stainless steel fermentation tank, Serial Number 294433-1, built in 2010.

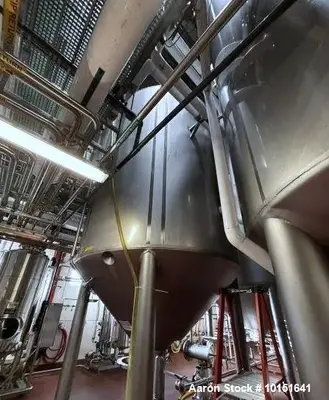

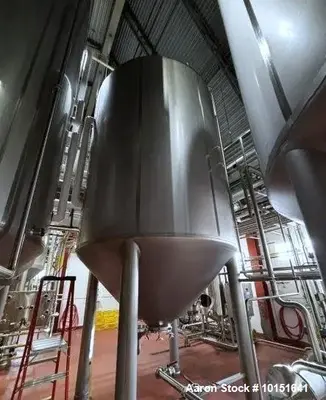

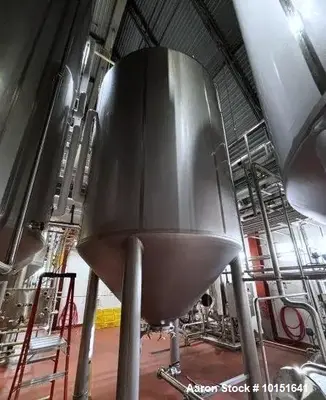

The vessel features a dome top and cone bottom and measures approximately 117" internal diameter x 143" straight side x 267" overall height. The internal vessel is rated for 14.9 PSI at 100°F.
Temperature control is provided by a three-zone cooling jacket system consisting of two sidewall cooling zones and one cone-bottom cooling zone. The cooling jackets are rated for 100 PSI at 100°F, allowing cooling media to be circulated around multiple sections of the vessel for controlled process-temperature management.

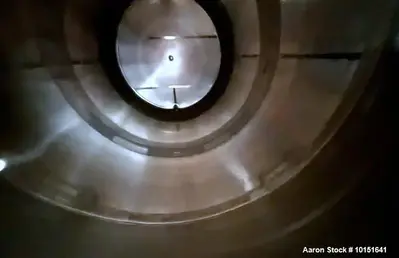

The cone bottom incorporates a 16" manway for vessel access and a 3" center-bottom outlet for product discharge. The vessel is supported on four legs.
With an overall height of approximately 267" (22'3") and diameter of approximately 117" (9'9"), this is a substantial process vessel requiring appropriate facility clearance, foundation, rigging, and transportation planning.
This Mueller vessel may be suitable for brewing, beverage fermentation, cider, wine, food processing, product conditioning, and other temperature-controlled liquid-processing applications.
Specifications

Specification
Details

Manufacturer
Mueller

Equipment Type
Jacketed Fermentation / Process Tank

Capacity
Approx. 8,300 Gallons

Material
304 Stainless Steel

Top
Dome

Bottom
Cone

Internal Diameter
Approx. 117"

Straight Side
Approx. 143"

Overall Height
Approx. 267" / 22'3"

Vessel Pressure Rating
14.9 PSI at 100°F

Cooling Jacket
Three-Zone

Sidewall Cooling Zones
(2)

Cone-Bottom Cooling Zones
(1)

Jacket Pressure Rating
100 PSI at 100°F

Manway
16" Cone-Bottom Manway

Product Outlet
3" Center Bottom

Supports
(4) Legs

Serial Number
294433-1

Year Built
2010

Condition
Used

Typical Applications

Beer fermentation
Beverage fermentation
Cider production
Wine processing
Product conditioning
Temperature-controlled storage
Food processing
Batch fermentation
Brewing operations
Fermented beverage production
Large-volume liquid processing
Temperature-controlled process holding

Products This Tank Could Be Used For

Beer
Craft beer
Cider
Hard cider
Wine
Fermented beverages
Kombucha
Beverage bases
Liquid food ingredients
Fermented liquid products
Compatible process liquids
Other temperature-controlled liquid products

Actual suitability depends on product chemistry, sanitary requirements, temperature and pressure requirements, surface finish, fittings, process configuration, and applicable codes. Vessel and jacket ratings, documentation, and current condition should be verified before pressure service.
Frequently Asked Questions

What is the capacity of this Mueller fermentation tank? The vessel has an approximate capacity of 8,300 gallons, providing substantial volume for commercial fermentation and liquid-processing applications.

How is the product temperature controlled? The vessel has three cooling zones—two on the sidewall and one on the cone bottom—allowing cooling media to circulate around different sections of the tank.

What are the pressure ratings? The internal vessel is rated for 14.9 PSI at 100°F, while the three-zone cooling jacket is rated for 100 PSI at 100°F.

What type of bottom does the vessel have? It features a cone bottom with a 16" manway and 3" center-bottom product outlet.

How large is the tank? The vessel measures approximately 117" ID x 143" straight side x 267" overall height, or approximately 9'9" diameter x 22'3" overall height.

Can Aaron Equipment assist with shipping and logistics? Yes. Given the vessel's size, specialized rigging and oversized transportation may be required. Aaron Equipment can assist with loading and rigging coordination, oversized freight planning, domestic and international transportation, customs documentation, and logistics coordination.
