Used 2010 Mueller 8,300-Gallon Fermentation Vessel – Cone Bottom & 100 PSI Cooling Jackets

Manufacturer Information
Mueller
Mueller manufactures stainless steel tanks and process vessels used throughout beverage, brewing, dairy, food, and other liquid-processing industries. Jacketed fermentation vessels provide large-capacity product containment with temperature-control capability for fermentation, conditioning, storage, and other temperature-sensitive processes.

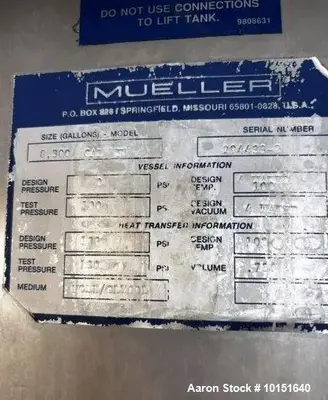

This 2010 Mueller 8,300-gallon fermentation vessel, Serial Number 294433-2, features a pressure-rated stainless steel vessel, cooling jacket, cone-bottom design, and four-leg support configuration.
Description
Available for sale is a used 2010 Mueller 8,300-gallon fermentation vessel, designed for large-volume fermentation and temperature-controlled liquid processing.

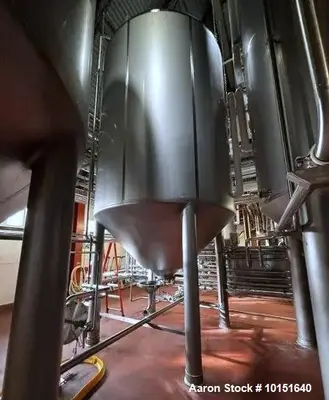

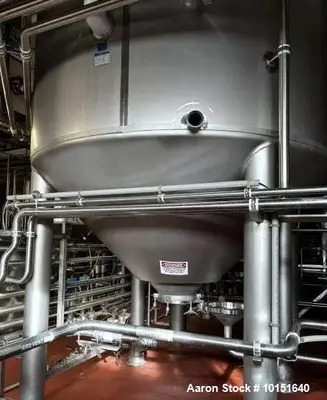

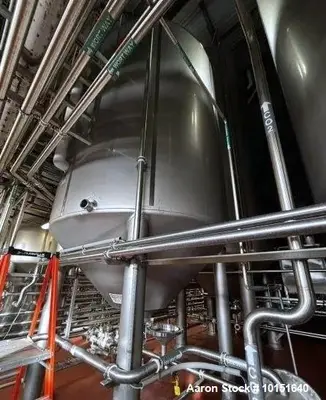

The vessel features a dome top and cone bottom and measures approximately 117" internal diameter x 143" straight side x 267" overall height.
The internal vessel is rated for 14.9 PSI at 100°F, while the cooling jacket is rated for 100 PSI at 100°F. The jacketed configuration allows compatible cooling media to be circulated around the vessel to help maintain desired product temperatures during fermentation, conditioning, or storage.

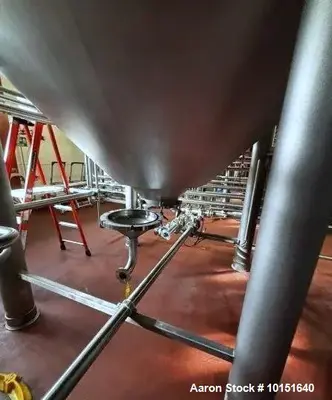

A 16" manway located in the bottom cone provides vessel access. Product discharge is through a 3" center-bottom outlet, while the cone-bottom geometry promotes drainage toward the discharge point.
The vessel is supported on four legs. At approximately 267" (22'3") overall height and 117" (9'9") internal diameter, installation should account for facility clearance, structural requirements, rigging access, and transportation.
This large-capacity Mueller vessel may be suitable for brewing, beer and cider fermentation, wine production, beverage processing, product conditioning, and other compatible temperature-controlled liquid applications.
Specifications

Specification
Details

Manufacturer
Mueller

Equipment Type
Jacketed Fermentation Vessel

Capacity
Approx. 8,300 Gallons

Top
Dome

Bottom
Cone

Internal Diameter
Approx. 117" / 9'9"

Straight Side
Approx. 143" / 11'11"

Overall Height
Approx. 267" / 22'3"

Vessel Pressure Rating
14.9 PSI at 100°F

Jacket Pressure Rating
100 PSI at 100°F

Manway
16" Bottom Cone Manway

Product Outlet
3" Center Bottom

Supports
(4) Legs

Serial Number
294433-2

Year Built
2010

Condition
Used

Typical Applications

Beer fermentation
Cider fermentation
Wine processing
Beverage fermentation
Brewing operations
Product conditioning
Temperature-controlled storage
Food and beverage processing
Batch fermentation
Large-volume liquid processing
Fermented beverage production
Temperature-controlled process holding

Products This Fermentation Vessel Could Be Used For

Beer
Craft beer
Cider
Hard cider
Wine
Fermented beverages
Kombucha
Beverage bases
Liquid food ingredients
Fermentation broths
Compatible process liquids
Other temperature-controlled liquid products

Actual suitability depends on product chemistry, required temperatures and pressures, sanitary requirements, surface finish, fittings, jacket configuration, and applicable codes. Vessel and jacket documentation and current condition should be verified before pressure service.
Frequently Asked Questions

What is the capacity of this Mueller fermentation vessel? The vessel has an approximate capacity of 8,300 gallons, making it suitable for large-volume fermentation, conditioning, and liquid-processing operations.

What are the vessel and jacket pressure ratings? The internal vessel is rated for 14.9 PSI at 100°F, and the cooling jacket is rated for 100 PSI at 100°F.

Does this Mueller tank have a cone bottom? Yes. It features a cone bottom with a 16" manway and 3" center-bottom outlet, providing vessel access and centralized product discharge.

How large is the vessel? It measures approximately 117" internal diameter x 143" straight side x 267" overall height, making it approximately 22'3" tall overall.

What applications could use this fermentation vessel? Potential applications include beer, cider, wine and beverage fermentation, product conditioning, temperature-controlled storage, and other compatible liquid-processing operations.

Can Aaron Equipment assist with shipping and logistics? Yes. Because of the vessel's approximately 22'3" overall height and 9'9" diameter, specialized rigging and oversized transportation may be required. Aaron Equipment can assist with loading and rigging coordination, oversized freight planning, domestic and international transportation, customs documentation, and logistics planning.
