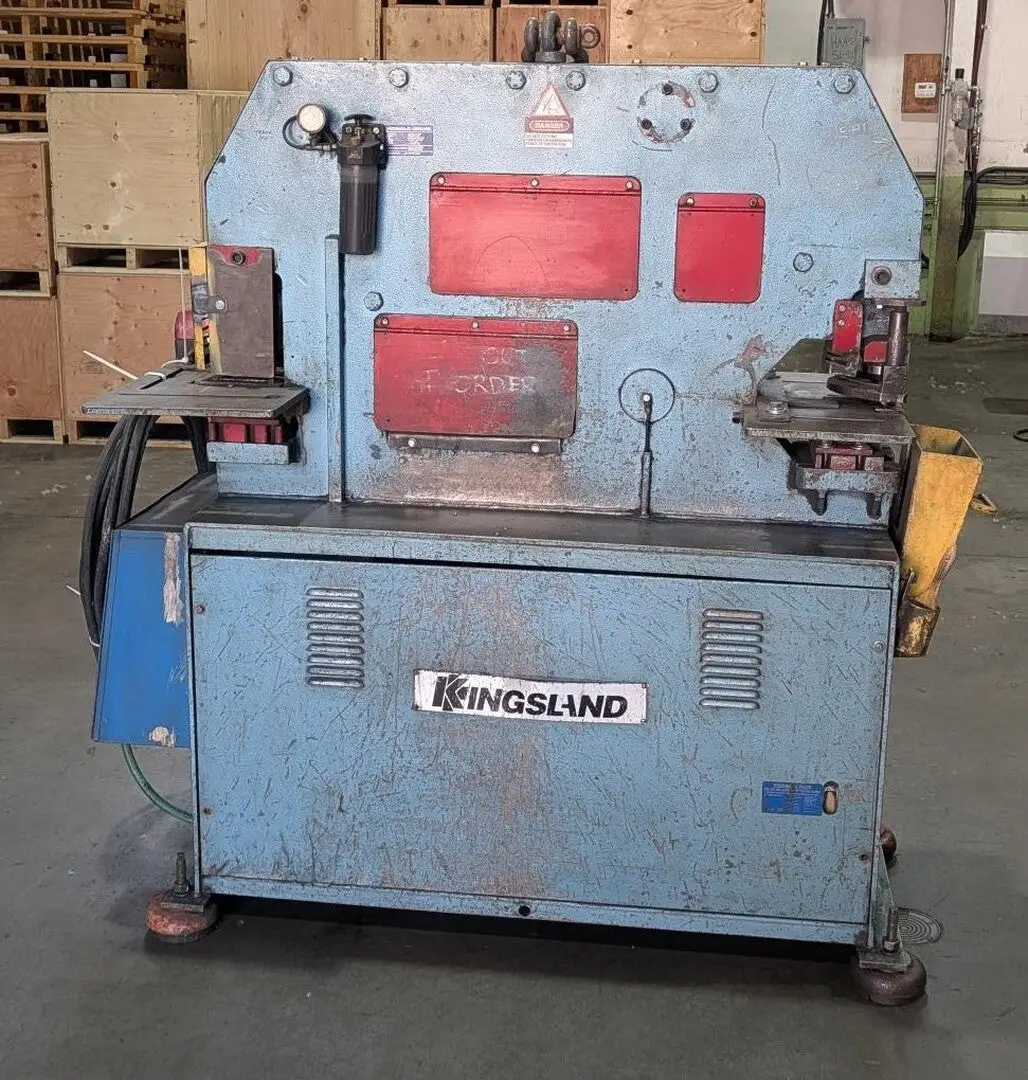

USED KINGSLAND ENGINEERING CO. LTD 65XA

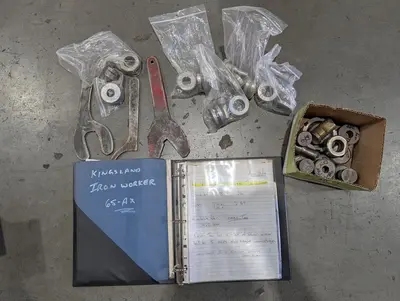

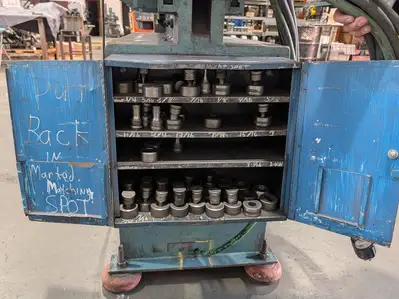

Includes tooling in pictures

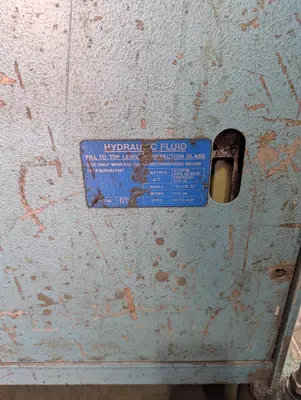

Operation: Hydraulic

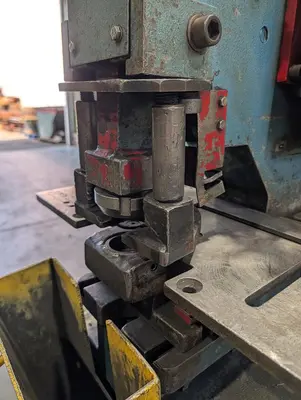

Stations: Punching, shearing, angle cutting, section cutting, notching
Punching Capacity: 28 x 15 mm / 1-1/8" x 5/8" with standard bolster; 38 x 11 mm / 1-1/2" x 7/16"
Bending Capacity: 150 x 12 mm / 6" x 1/2" flat bar

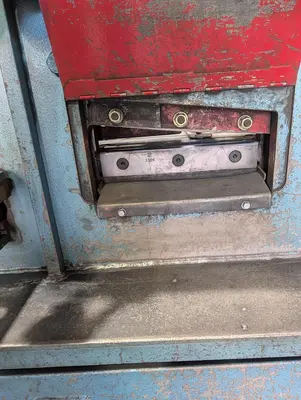

Flat Bar Shearing Capacity: 200 x 20 mm / 8" x 3/4"; 300 x 15 mm / 12" x 5/8"
Angle Cutting Capacity at 90°: 120 x 12 mm / 4-3/4" x 1/2"
Angle Cutting Capacity at 45°: 80 x 8 mm / 3-1/8" x 5/16"
Round Bar Section Cutting Capacity: 40 mm / 1-9/16"

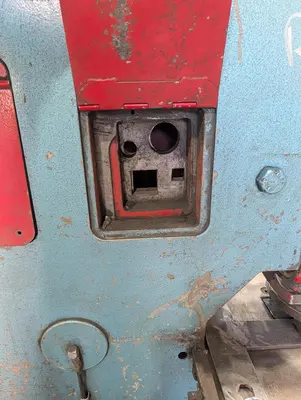

Square Bar Section Cutting Capacity: 35 mm / 1-3/8"

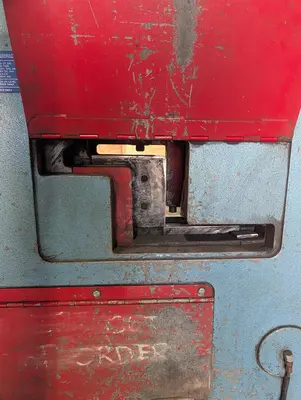

Channel / I-Beam Section Cutting Capacity: Up to 102 mm / 4" with extra blades
Rectangular Notching Capacity: 42 mm / 1-5/8"
Vee Notching Capacity: Up to 90° with extra tools
Notching Material Thickness: 10 mm / 3/8"

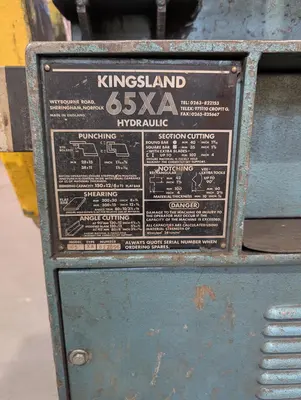

Material Strength Rating: Capacities based on 45 kg/mm2 / 28 ton/in2 material

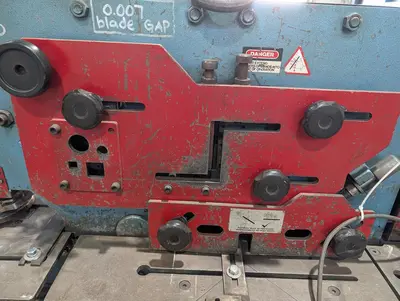

Blade Gap Note: Marked 0.007" blade gap

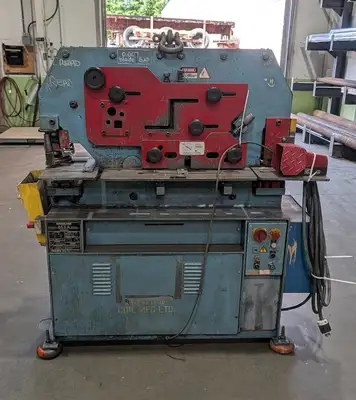

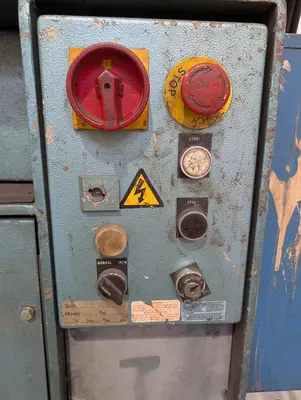

Controls: Start/stop buttons, emergency stop, main disconnect, normal/inch selector
