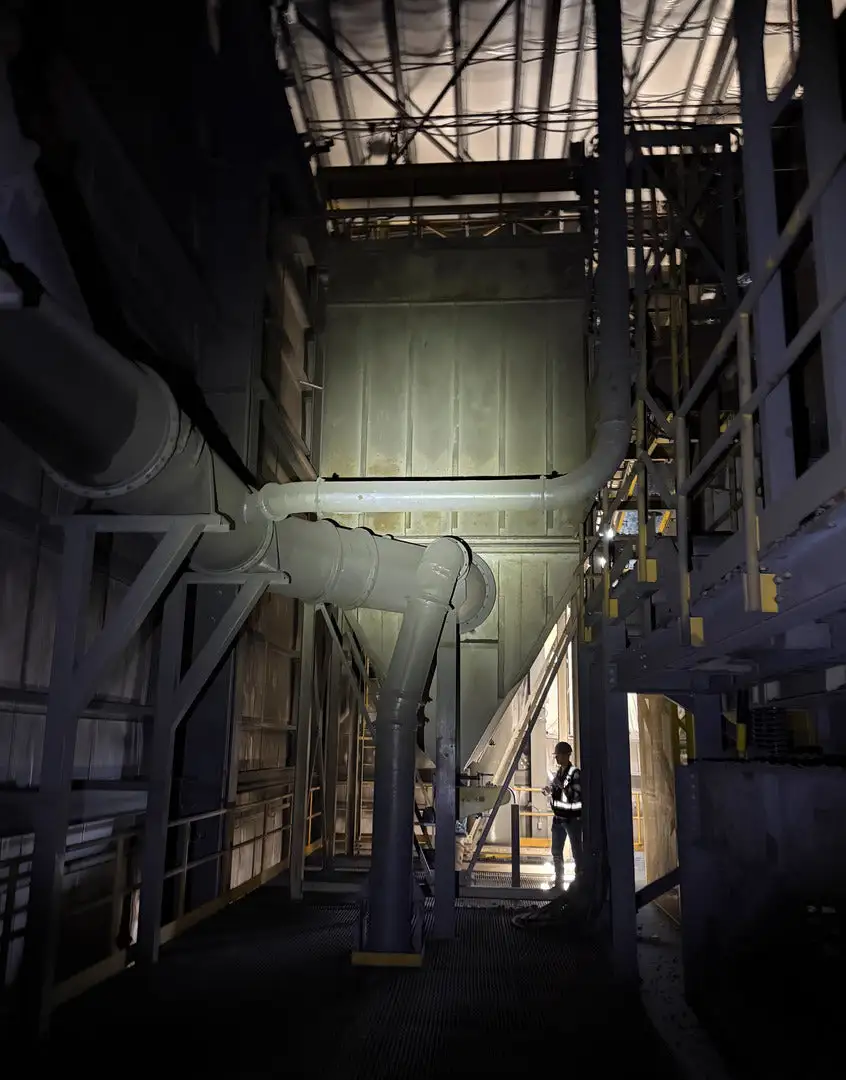

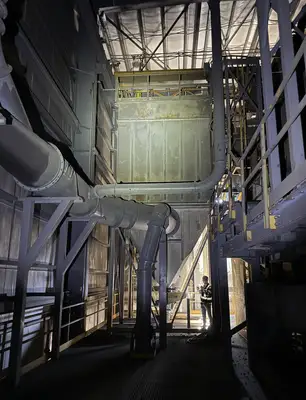

Industrial Pulse-Jet Dust Collector 30,000 CFM w/ Hopper & Rotary Airlock Discharge
Overview
Specs
Electrical Schematic Diagram
Panel Layout Diagram
General Arrangement Drawing
Collector Capacity:
14.1 m3/s
29,876 CFM
Dimensions:
Housing Width: 89 in 2261 mm
Overall Width (insulated walls): 178 in 4521 mm
Housing Length: 138 in 3505 mm
Filter Section Height: 144 in 3658 mm
Filter Housing Height: 130 in 3302 mm
Column Spacing: 98 in 2489 mm
Support Column Centers: 89 in 2261 mm
Fan
Equipment No. C1-FAN-026
100 HP
1800 RPM
575V / 3PH / 60Hz

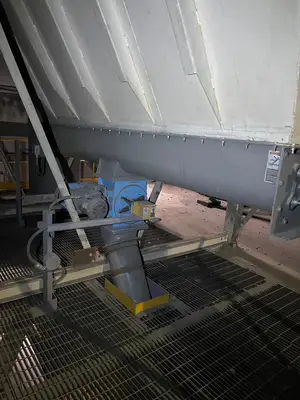

Rotary Airlock
Equipment No. C1-VLV-237
1 HP
575V / 3PH / 60Hz
1750 RPM TEFC motor
Filter Media
374 filter bags
6" diameter
16 oz polyester media
HCE snap-band tops
Model:
MikroPul Pulsaire Fabric Filter
Model number: 374RT(6)-10-20-TR-C
Suitable for:
Aggregate plants
Quarries
Mining operations
Cement plants
Recycling facilities
Bulk material handling
Industrial process dust collection
