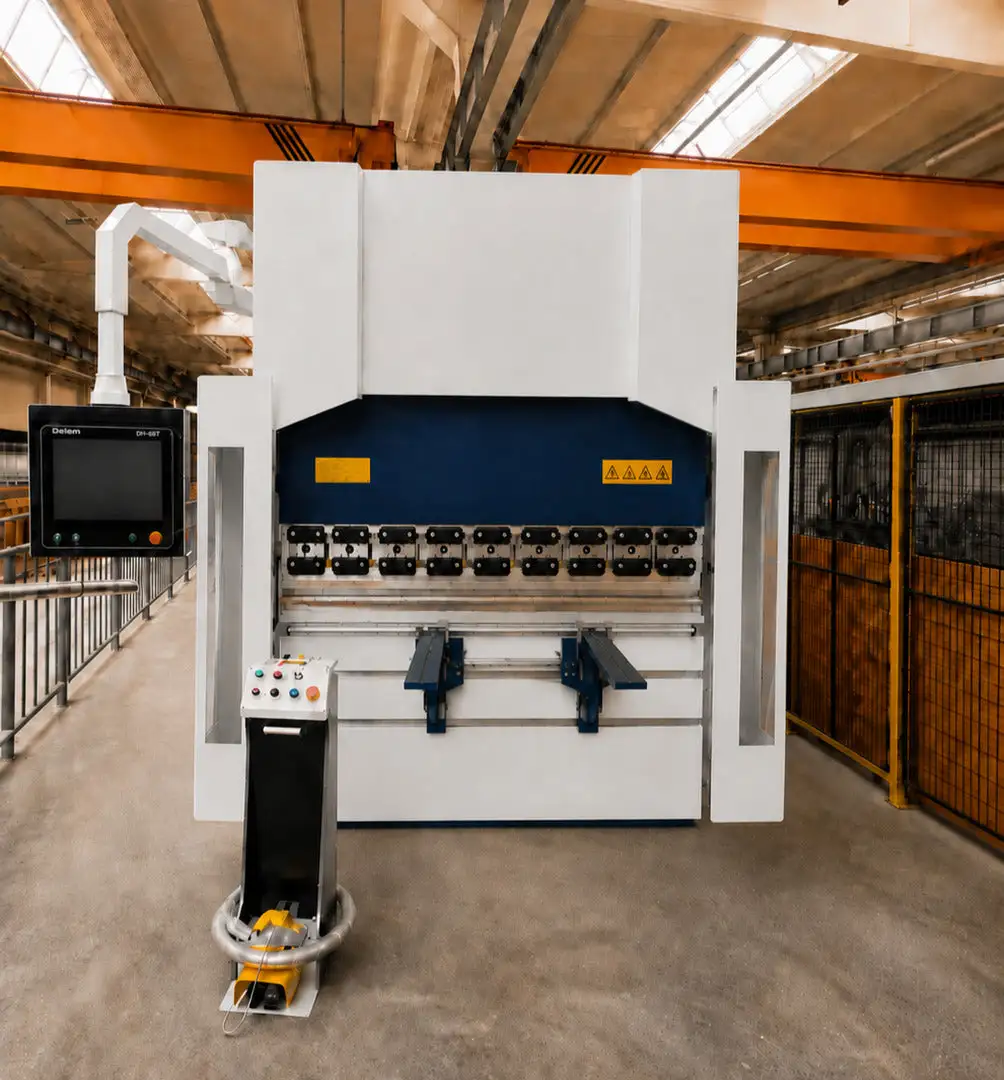

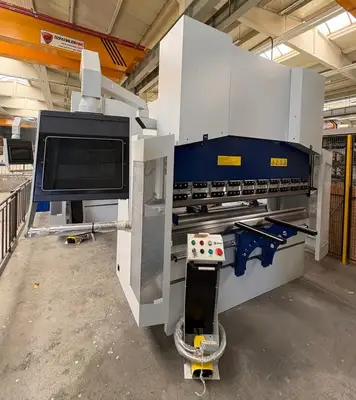

NEW 2026 MVD A60-2100

Bed Length: 2100 mm
Tons: 60 ton
Brake Type: Hydraulic
CNC: Yes
Features:
Y1, Y2, X, R (4 axis with X=750mm, R=250mm)
CNC unit Delem DA-53T 10" Touch Screen, 2D Graphical (3-4 Axes)
Stroke 210mm & Throat depth 410 mm
MVD motorised backgauge with ball screws, linear guided, AC Motor and inverter
Magnetic Linear Scales (Turkiye)
2 Pieces backgauge fingers, manually movable along the linear guide, precisely adjusted
Side safety doors and cylinder covers
HAWE=Hoerbiger (Germany) hydraulic blocks with proportional valves
Eckerle (Germany) oil pump, internal gear type
Promecam European type "Quick Clamping" system
Narrow Bottom table. IW = 60mm (+10mm spacer)
Top Tool : Eurostamp 1260, H:67, 85°, R:0,8
Bottom Die : Eurostamp 2067, 4 way V=16-22-35-50mm, 85°, H:60
2 Pcs sliding front supports (Standard included)
AKAS(FPBS) front safety lasers + rear light beams
Set-up and Training
1 Year Warranty
Dimensions (L x W x H): 3660 x 2175 x 2820 mm
Total Weight (approx): 4290 kg
