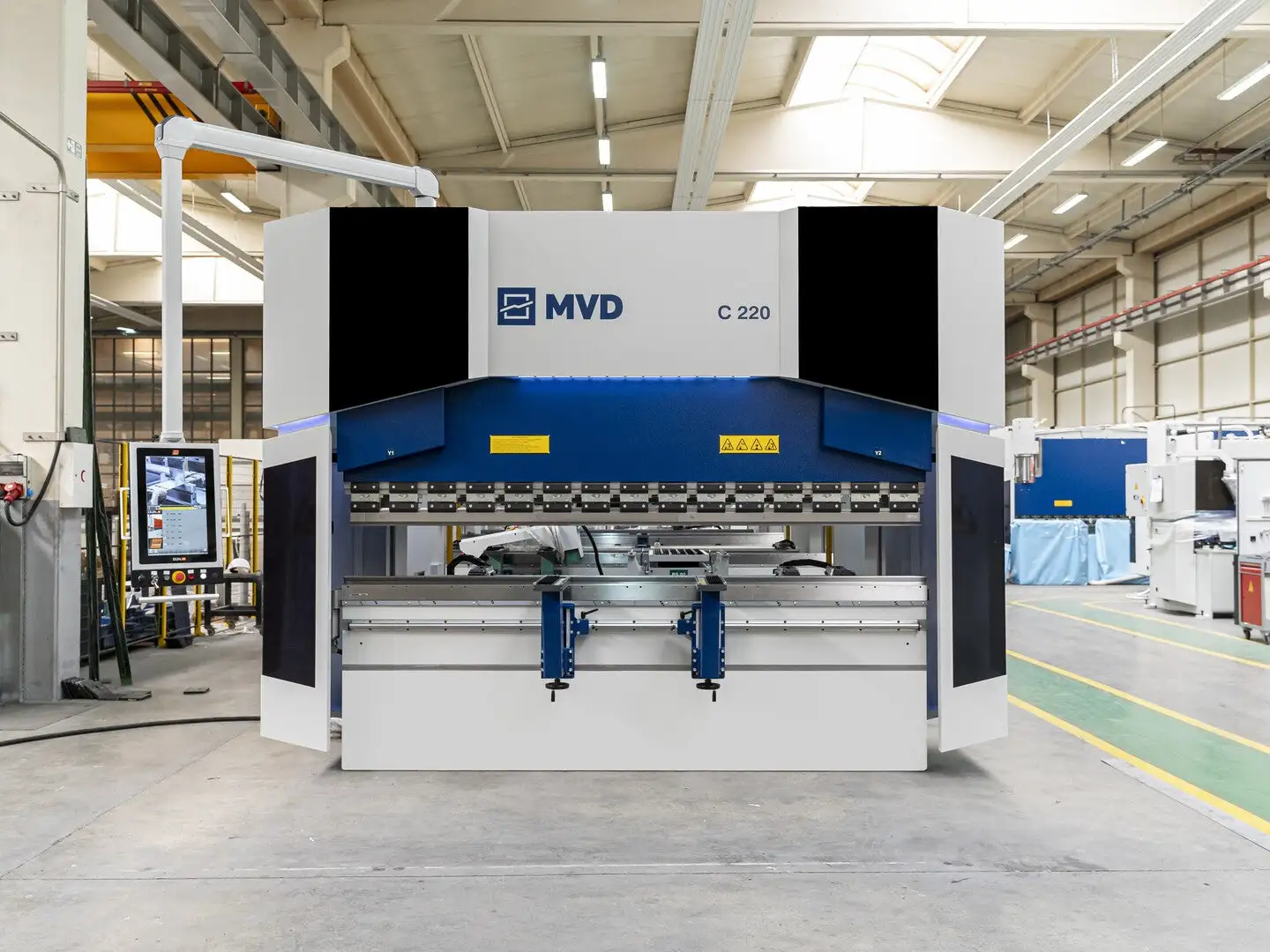

NEW 2026 MVD C220-3100

Bed Length: 3100 mm
Tons: 220 ton
Brake Type: Hydraulic
CNC: Yes
Features:
Y1, Y2, X + R + Z1 + Z2 (6 axis with X=750mm, R= 250mm)
CNC unit Delem DA-69S, 24" Touch Screen, 3D Graphical, (3-12 axis) *.dxf
Stroke 310mm & Throat depth 410mm
MVD Servo motorised backgauge with ball screws, linear guided, Mitsubishi/LS/Delta Motors&Drivers
CNC Controlled Type#1 Crowning (by Wila wedges and Framo motor)
GIVI (Italy) Optic Linear Scales
2 Pieces CNC-Controlled Backgauge Fingers, servo-positioned along linear guides for automatic, precise adjustment
HAWE=Hoerbiger (Germany) hydraulic blocks with proportional valves
Eckerle (Germany) oil pump, internal gear type
M-EASY Manual promecam ES4389/Z1 (vertical removal/insertion)
Narrow Bottom table (MVD Special design) IW = 60mm+10mm spacer (F<= 270Tons) IW=90mm (F>=320 ton)
C-Type Stronger front support arms with hand-wheel for vertical adjustment (2pcs)
Top Tool : Eurostamp 1260, H:67, 85°, R:0,8 (853mm x lengths + 1x805mm segm. Set)
Bottom Die : Eurostamp 2067, 4 way V=16-22-35-50mm, 85°, H:60, (853mm x lengths + 1x805mm segm. Set)
Full front safety cover with LED lights and with aluminum controller arm
AKAS(FPBS) front safety lasers + rear light beams
Set-up and Training
1 Year Warranty
Dimensions (L x W x H): 5180 x 2650 x 2950 mm
Total Weight (approx): 11300 kg
