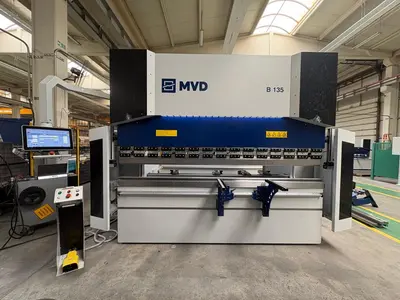

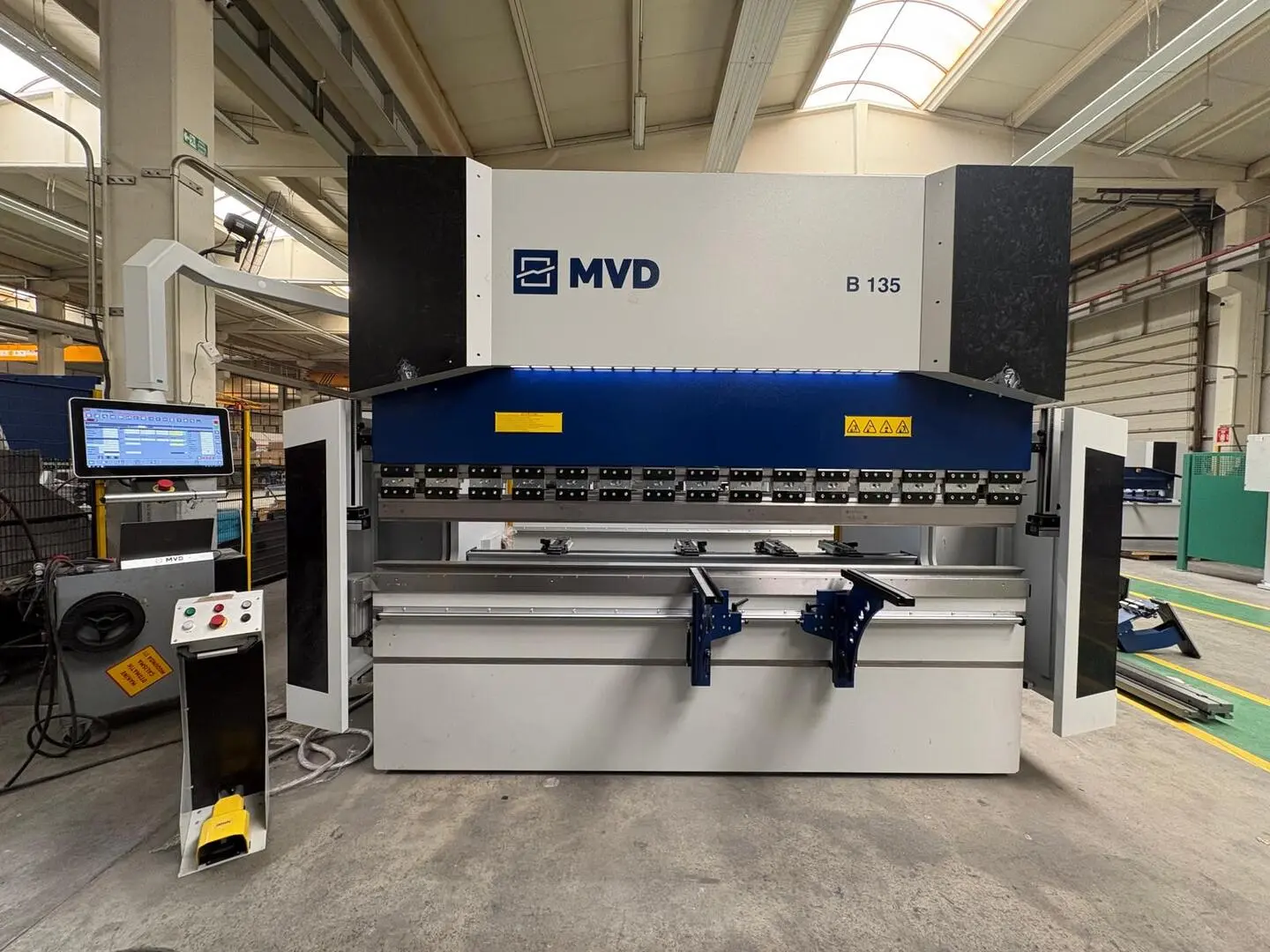

NEW 2026 MVD B135-3100

Bed Length: 3100 mm
Tons: 135 ton
Brake Type: Hydraulic
CNC: Yes
Features:
Y1, Y2, X+R (4 axis with X=750mm)
CNC unit Delem DA-66S, 24" Touch Screen, 2D Graphical, (3-8 axis)
Stroke 260mm & Throat depth 410 mm
MVD Servo motorised backgauge with ball screws, linear guided, Mitsubishi/LS/Delta Motors&Drivers
CNC Controlled Type#1 Crowning (by MVD wedges and GEC motor)
GIVI (Italy) Optic Linear Scales
2 Pieces backgauge fingers, manually movable along the linear guide, precisely adjusted
Side safety doors and cylinder covers
HAWE=Hoerbiger (Germany) hydraulic blocks with proportional valves
Eckerle (Germany) oil pump, internal gear type
M-EASY Manual Promecam ES4389/Z1 (vertical removal/insertion)
Narrow Bottom table (MVD Special design) IW = 60mm+10mm spacer (F<= 270Tons) IW=90mm (F>=320 ton)
Sliding Front support arms (2pcs)
Top Tool : Eurostamp 1260, H:67, 85°, R:0,8
Bottom Die : Eurostamp 2067, 4 way V=16-22-35-50mm, 85°, H:60
AKAS(FPBS) front safety lasers + rear light beams
Set-up and Training
1 Year Warranty
Dimensions (L x W x H): 4690 x 2340 x 2980 mm
Total Weight (approx): 7750 kg
