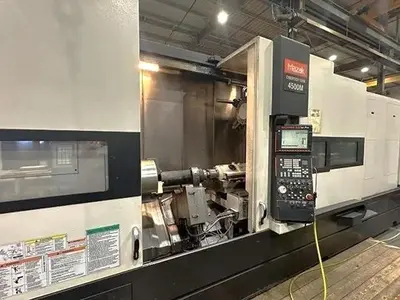

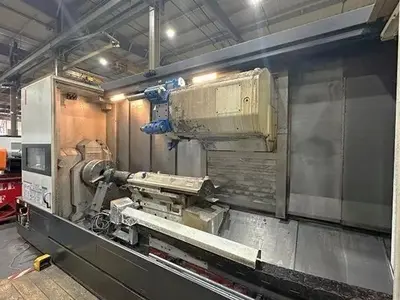

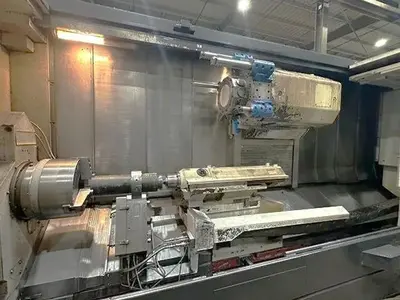

USED 2008 MAZAK CYBERTECH TURN 4500M/3000

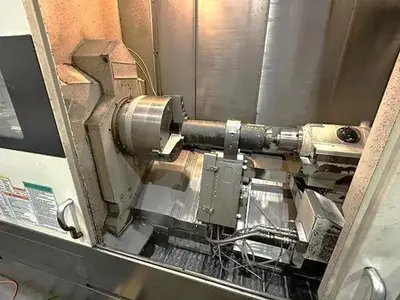

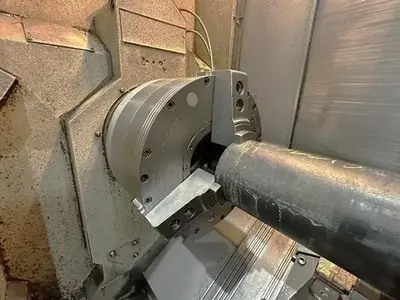

18" 3 Jaw Schunk EP-460-1856 Air Chuck w/ 7.29" Hole
Optional 7.28" Big Bore Spindle
Chip Conveyor
Full "C" Axis Spindle Rotation
Live Milling Capability

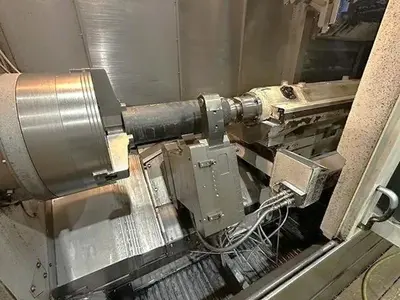

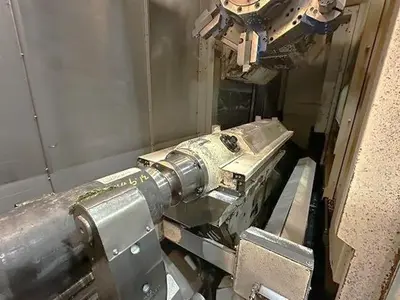

SMW Autoblok Hydraulic Steady Rest
Long Boring Bar Stocker

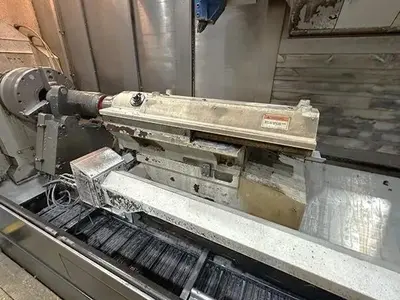

Fully Programmable Tailstock
120" Center Distance
Mill Tool Synchronous Tapping
Multi-Tap Transformer
EIA/ISO Input Function
IC Memory Card Interface
3.5" Floppy Disk Drive
PCMCIA Interface - 2 Slots
RS-232C Port Interface
Network Interface
All Available Static Tooling
All Available Mill Tools

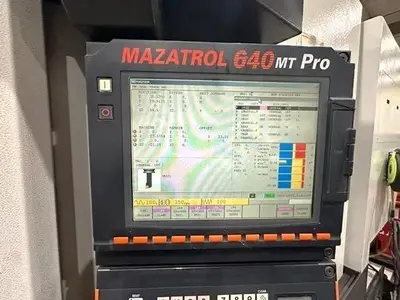

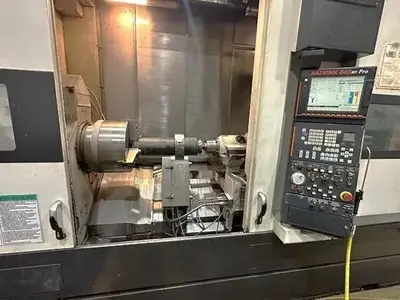

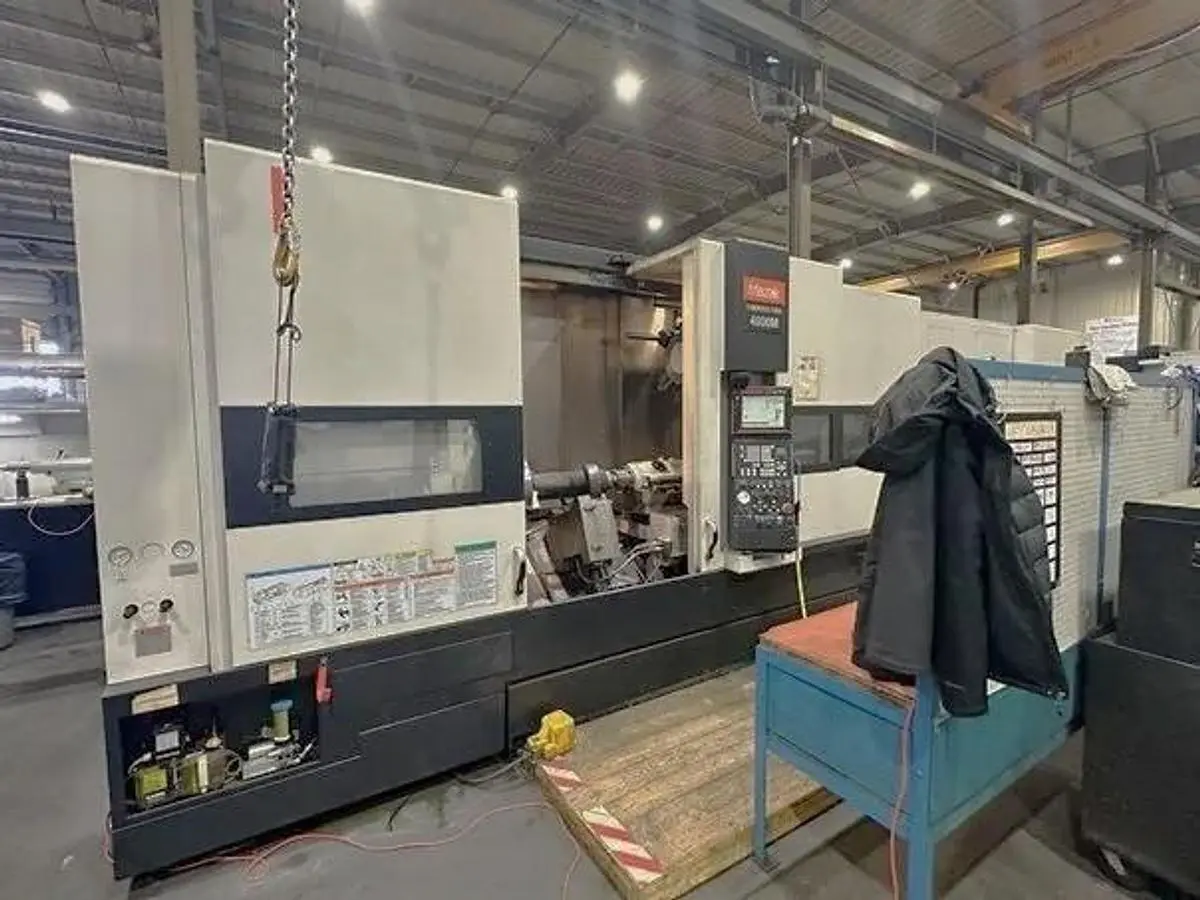

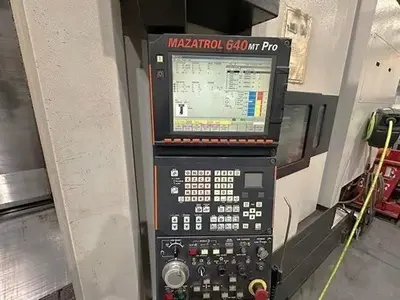

The 2008 Mazak Cybertech Turn 4500M/3000 is a robust CNC lathe suitable for versatile and demanding machining tasks. It features a Mazatrol Fusion 640MT Pro control system, facilitating precision and ease of use. This machine is equipped with an 18-inch 3-jaw air chuck and offers a maximum swing of 33.86 inches, with a maximum machining diameter of 31.89 inches and a length capacity of up to 120 inches.

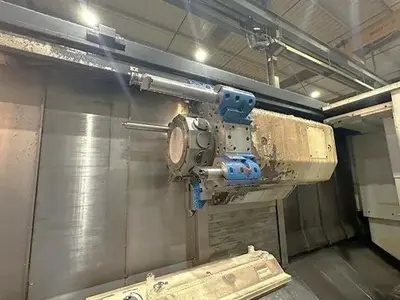

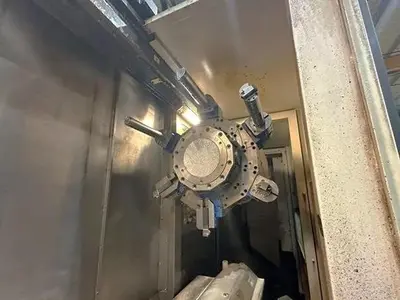

This model also includes a 12-station turret, ensuring efficient tool management, and supports a spindle speed range from 0 to 2,400 RPM powered by a 50 HP motor. For milling operations, it has a rotary tool speed of 3,000 RPM driven by a 15 HP motor. The Mazak supports rapid traverse rates of 945 IPM on the X-axis and 1181 IPM on the Z-axis, optimizing operational efficiency.

Additional features include a robust SMW steady rest, tailstock with a travel of 120.08 inches, and a sizeable spindle bore of 7.2 inches. The machine dimensions are 24 feet by 9 feet 6 inches by 8 feet 4 inches, and it weighs approximately 46,600 lbs, making it a substantial but extremely capable piece of industrial equipment.
