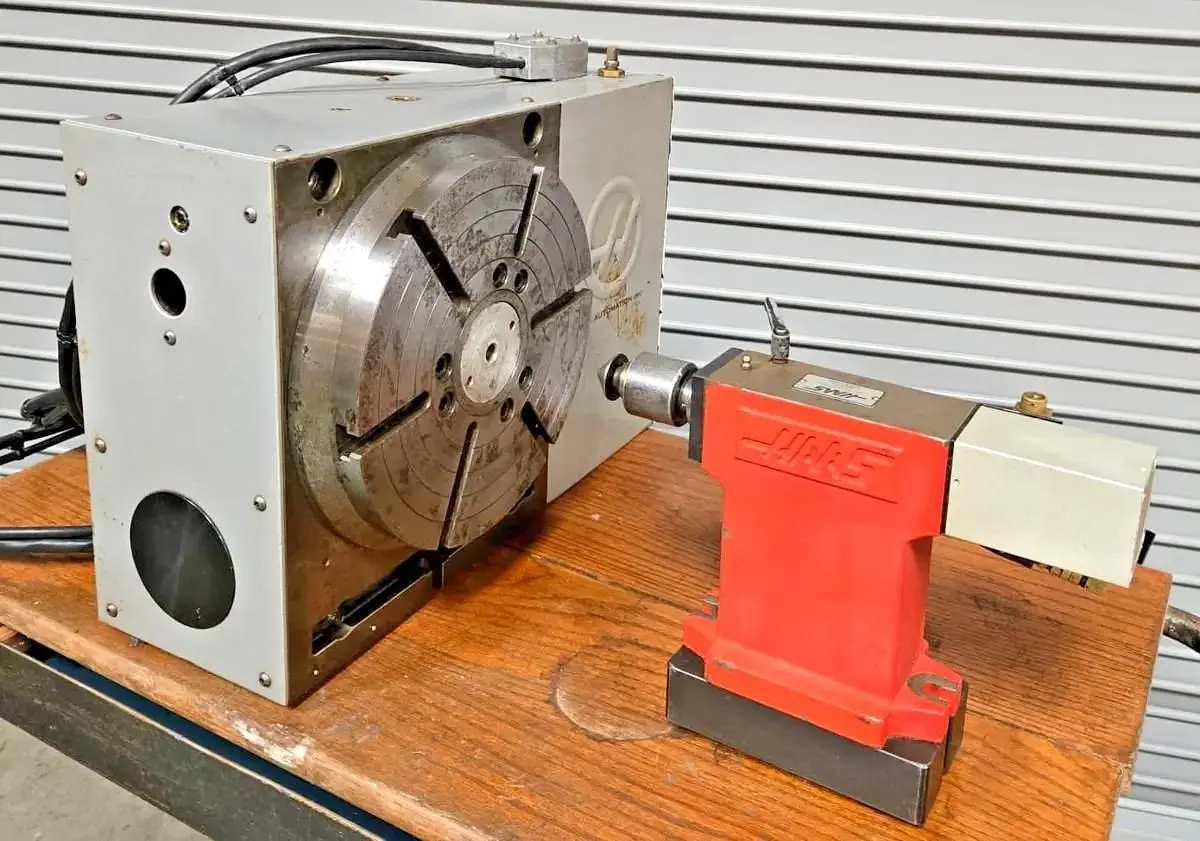

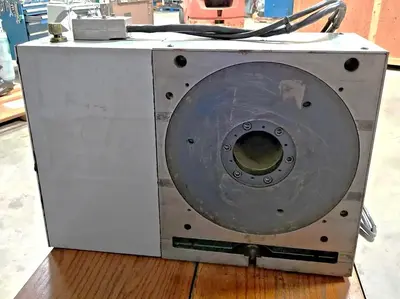

USED HAAS HRT310

Sigma 1 Motor Type

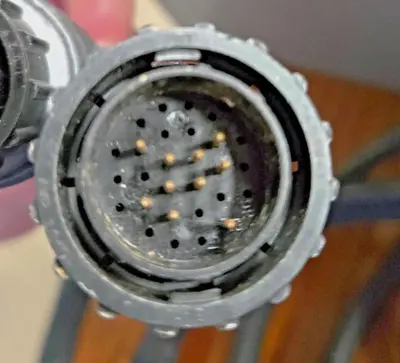

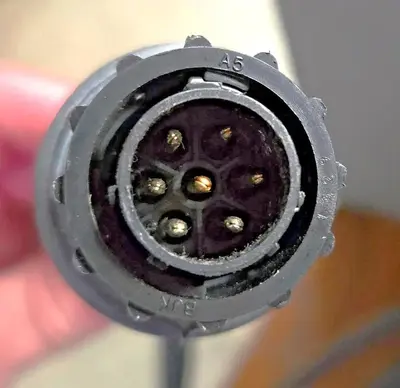

Dual Multi Pin Cable Connections

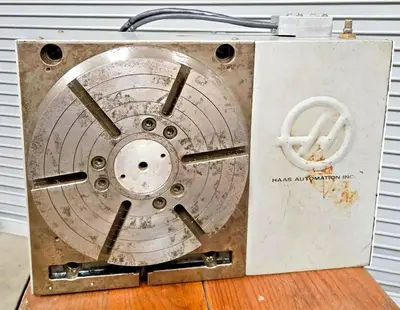

310 mm T Slotted Work Surface
Servo Driven
Can be used with newer machines with proper connection adapter

The Haas HRT310 is a robust rotary table designed for precision and versatility in rotary machining operations. Featuring a 12.2" diameter platter, it supports a maximum weight of 435 lbs with additional support and 218 lbs without, allowing for a broad range of machining tasks. With a brake torque of 500 ft./lbs and operating with Sigma 1 motor technology, it provides reliable performance in demanding environments.

This model boasts a high level of precision, with an accuracy of +/- 15 arc seconds and repeatability of 10 arc seconds. The rotary table integrates 6 T-slots positioned at 60 degrees, enhancing versatility in clamping options. Its resolution of .001 degrees ensures fine-tuned adjustments for detailed machining tasks. The face plate maintains a consistent diameter of 12.2", with a center height of 9", suitable for standard operations.

With dimensions of 24"x24"x21" and a weight of 450 lbs, the HRT310 offers a compact, yet durable solution for industrial settings. It includes a 3.375" hole through spindle and a worm gear diameter of 9.4", supporting extensive operational capability. The table also allows for a maximum rotation of 999.999 degrees per step, further cementing its role as a reliable choice for complex machining requirements.
