Mazak Smart 250 – 2016

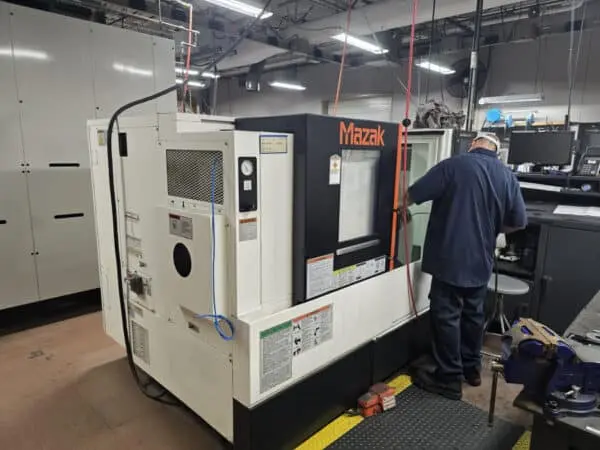

2016 MAZAK QUICK TURN SMART 250

CNC LATHE
CHUCK SIZE………………………… 10″

MAX DIAMETER BAR CAPACITY…………… 3″

MAX SWING OVER BED…………………. 26″

MAX MACHINING LENGTH……………….. 19.608″

SPINDLE MOTOR……………………… 35 HP

SPINDLE SPEED……………………… 4000 RPM

SPINGLE NOSE………………………. A2-8

SPINDLE BORE………………………. 3.58″

TOOLS…………………………….. 12

RAPID TRAVERSE RATES (X/Z)………….. 1181/1299 IPM

X-AXIS TRAVEL……………………… 8.88″

Z-AXIS TRAVEL……………………… 23.75″

TURRET INDEX (SINGLE STEP)………….. MT #5

MAX TURNING DIAMETER……………….. 14.25″
FEATURES:

MAZATROL SMART CNC CONTROL

10.4″ COLOR LCD

CONVERSATIONAL PROGRAMMING

EIA / ISO INPUT FUNCTION

10″ KITAGAWA B210 HYDRAULIC 3-JAW CHUCK

ROYAL A2-8 S30 COLLET CHUCK

PROGRAMMABLE TOOL EYE

PROGRAMMABLE TAILSTOCK

CHIP CONVEYOR (SIDE EXIT HINGE TYPE)

HIGH POWER COOLANT
OVERALL SIZE, APPROXIMATE: 133″ L-R X 68″ F-B X 72″ H

WEIGHT, APPROXIMATE: 13,000 LBS.
