USED WEINIG HYDROMAT

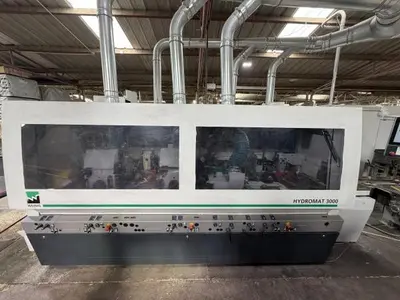

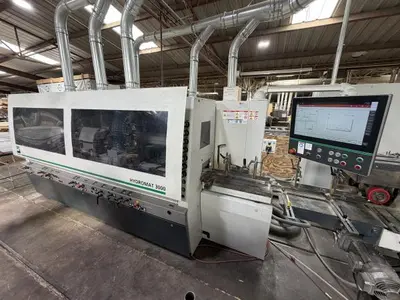

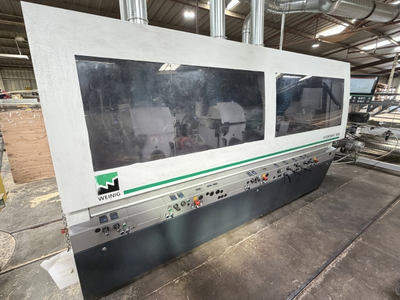

Weinig Model Hydromat 3000 Six-Head Moulder w/ Lateral Infeed - 2023!
Moulder Working Width: 20 - 230mm
Moulder Working Height: 10 - 160mm

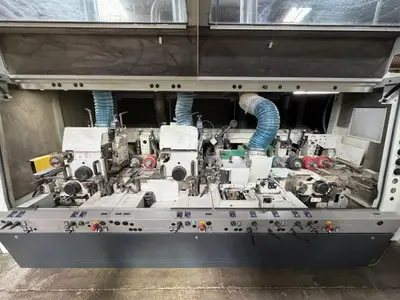

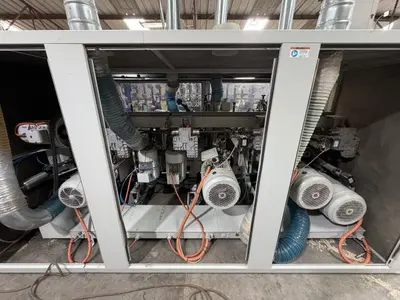

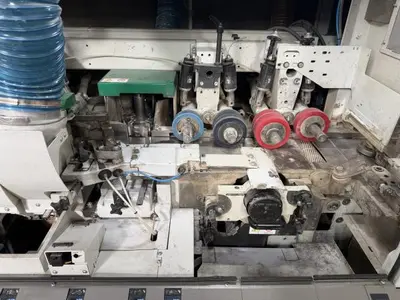

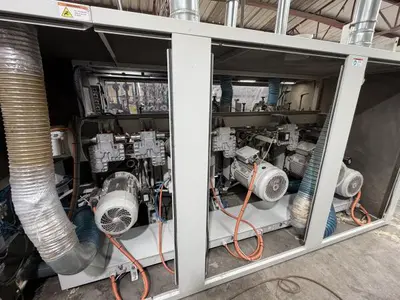

Spindle Configuration: Bottom, Right, Left, Top, Top, Bottom

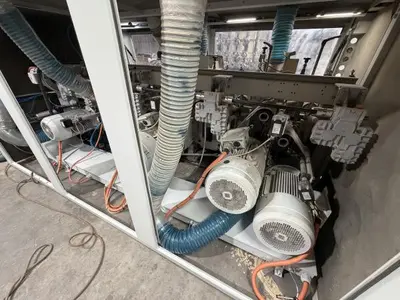

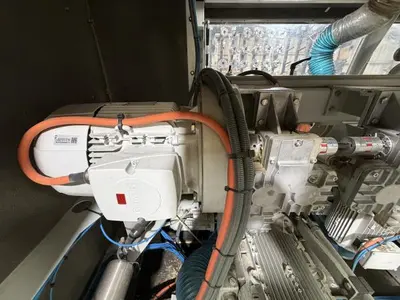

Spindle #1: Bottom, 25 HP, w/ Straight Jointer
Spindle #2: Right, 15 HP, Profile Jointer
Spindle #3: Left, 15 HP, Profile Jointer
Spindle #4: Top, 30 HP, Straight Jointer
Spindle #5: Top, 30 HP, Straight & Profile Jointers
Spindle #6: Bottom, 30 HP, Straight & Profile Jointers
Spindle Speeds: 6,000 RPM
Spindle Diameters: 1-13/16"

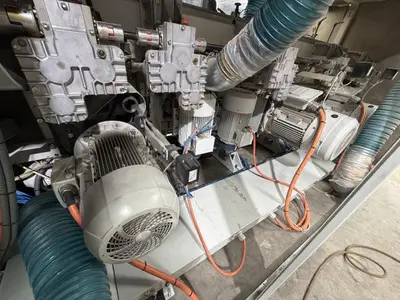

All Horizontal Spindles Have Hydro - Outboard Bearings w/ HydroLock

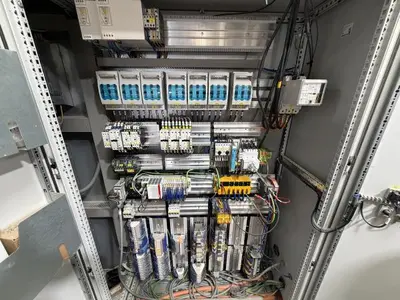

Start and Stop of Spindle Drives via Frequency Converter
Feed Motor: 12.2 HP
Variable Speed Feed from 6 - 60 m/min (20 - 196 FPM )

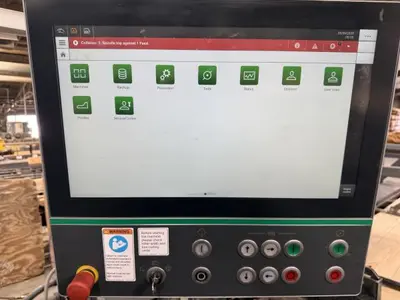

Weinig Machine Control Pro, 21.5" Touchscreen
Control Panel Mounted on Swivel Arm
Automatic Bed Lube

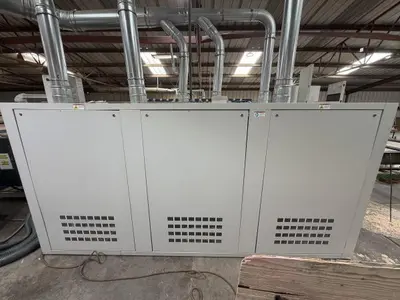

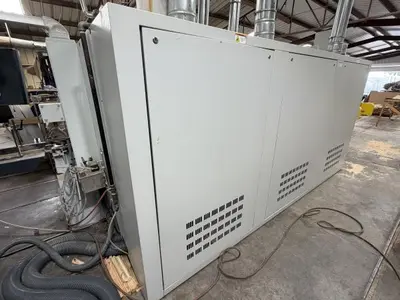

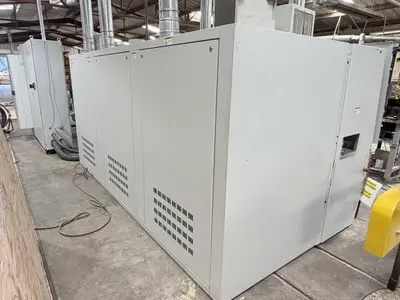

Sound/Safety Enclosure
460v, 3ph
Moulder is a 2023 Machine

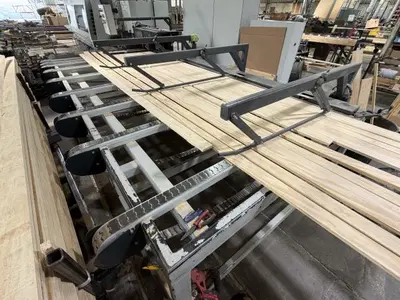

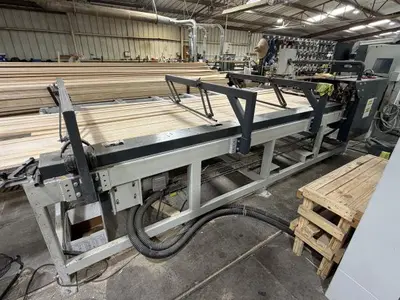

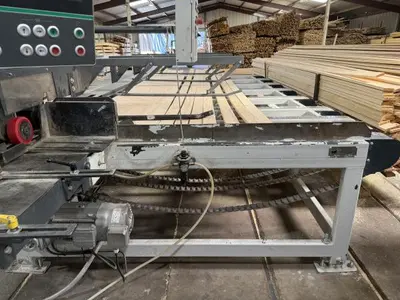

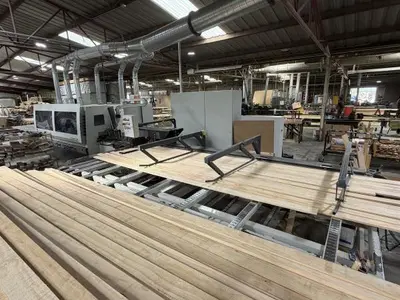

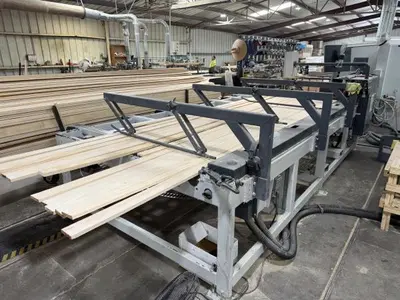

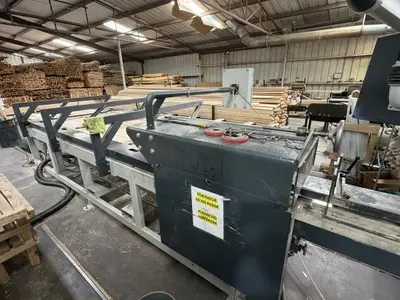

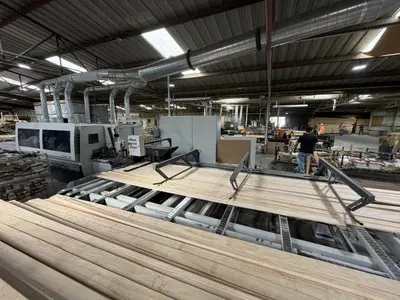

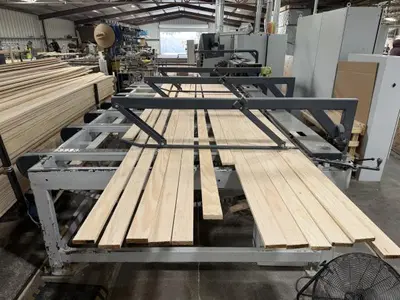

Weinig Lateral Infeed, Total Deck Size of 13.5' L x 76" Deep

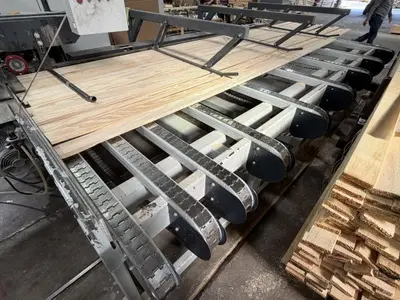

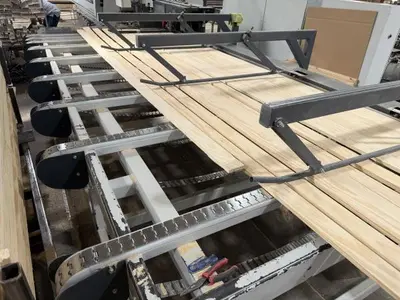

Nine Steel Chains Spaced at 2", 10", 18", 32", 54", 77", 102", 126" & 154"

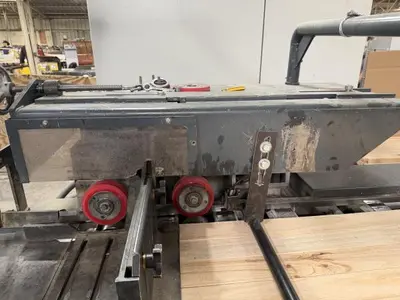

Two Upper & Lower Pneumatically Actuated Feed Wheels
Torque Sensing Feature Ensures a Smooth Butt-to-Butt Feed Into the Moulder

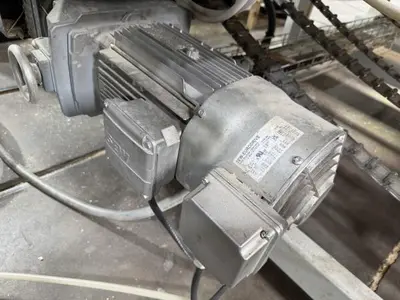

Electronic Inverter Feed Motor: 5 HP

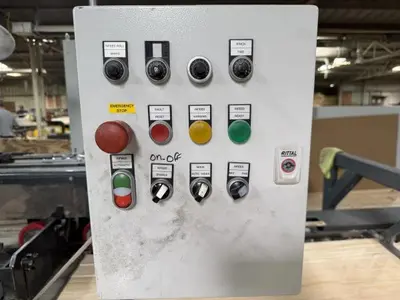

Swiveling Operator Control
Lateral Feeder Built in 2024

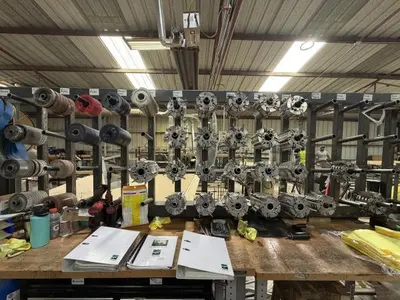

Includes a Nice Collection of HydroLock Cutterheads: (18) 4" Six-Knife, (6) 4" Four-Knife, (8) 6" Six-Knife, (4) 6" Four-Knife, and (4) 9" Six-Knife

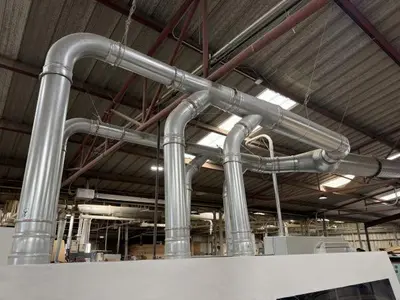

Dust Collection Manifold can be Included with the Sale of the Machine
Excellent Machine with Low Hours!
