NEW ACME LASER LHM-H12012
Overview

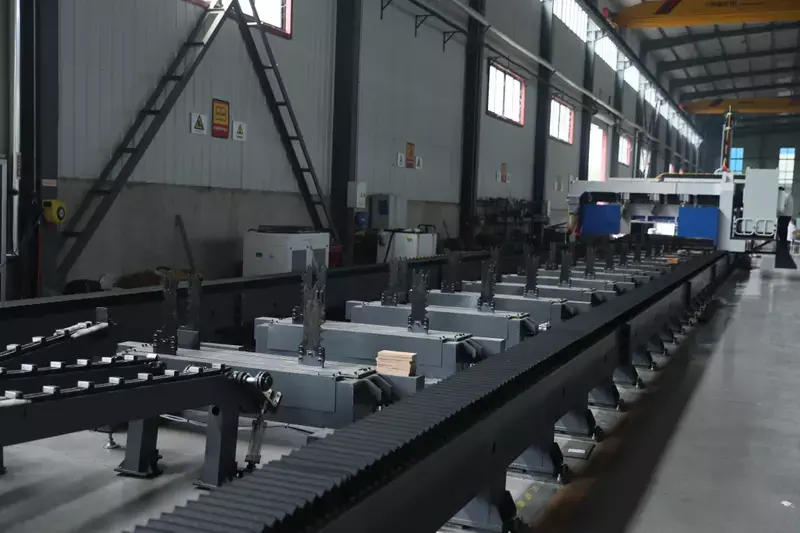

2026 ACME LASER LHM-series Heavy Duty Gantry Profile Laser Cutting Machine for Structural Steel
Cutting Machine
1. A heavy-duty integrated cutting machine for steel profiles and plates
2. H,I,U,L Beams & Plates Cutter
3. 3D 5-axis bevel cutting
4. Optional: Multiple workstations
5. Max I-beam/profile size: 12000*1200*600mm
6. 12KW/20KW/30KW/40KW
7. Tekla avaliable---Suitable for the steel structure processing industry
Specs
Laser source
MAX Photonics
20000w
Lens 20pcs
Nozzle 50pcs
Ceramic Ring 5pcs
26 Warranty 2 years 1 set
27 Safety relay Optional \ \
28 Top cover With 1 set With/Without
29 Light curtain Without \ With/Without
30 Slag removal Without \ With/Without
31 Camera With 4 sets With/Without
Main equipment
operating
parameters
Device size 29100*4000*3400mm
X-axis stroke 760mm
Maximum speed X-axis 30m/min
X-axis acceleration 0.6g
Y-axis stroke 13000mm
Maximum speed Y-axis 80m/min
Y-axis acceleration 0.8g
Small Y-axis stroke 280mm
Maximum speed Small Y-axis 30m/min
Small Y-axis acceleration 0.6g
Z-axis stroke 460mm
Maximum speed Z-axis 30m/min
Positioning accuracy (mm) ±0.05
Repeat positioning accuracy (mm) 0.05
Weight of equipment 17160kg
Processing area 12m+12m , 12300m , 1400kg ,
30-350mm
Bevel cutting ±45° Host power 45.9kw
Parameter Value
Output power 20000W
Short-term power stability ±1% ~ ±2%
Working mode Continuous / Modulation
Long-term power stability ±2% ~ ±3%
Polarization Random
Beam quality (BPP) 4.2 mm·mrad
Power adjustment range 10~100%
Laser turn-on time 150~200μs
Center wavelength 1080(±10)nm
Laser turn-off time 150~200μs
Spectral bandwidth (3dB) 5~8nm
Operating temperature 10~40°C
Overall dimensions 750×1100×1070mm (W×D×H)
Overall weight 478(±10)kg
Material Thickness Range
Carbon steel 1–40mm
Stainless steel 1–30mm
Aluminum alloy 1–22mm
Brass 1–20mm
Equipped With
1 set
2 System FSCUT 5000A 1 set
3 Laser head BOCI 462T 1 set
4 Nesting software TubesT Pro 1 set
5 Bevel cutting With 1 set With/Without
6 Static cutting With 1 set With/Without
7 Machine Appearance ACME 1 set
8 Chuck size 30-350mm 1 set
9 Circuit Control Schneider 1 set
10 Air path Control SMC 1 set
11 Guide rail HIWIN 1 set
12 Rack TWIN 1 set
13 Machine bed Mortise and tenon pipe
sheet welded 1 set
14 Servo motor Inovance 1 set
15 Reducer Techmech 1 set
16 Servo support With 1 set With/Without
17 N2 Proportional Valve With 1 set With/Without
18 O2 Proportional Valve With 1 set With/Without
19 Water chiller Hanli 1 set
20 Semi-Loading 12m 1 set
21 Semi-Unloading 12m 1 set
22 Stabilizer&Transform Optional \ \
23 Air compressor Optional \ \
24 Dust collector Optional \ \
25 Spare parts
