NEW PEPPERL+FUCHS 240813-0007

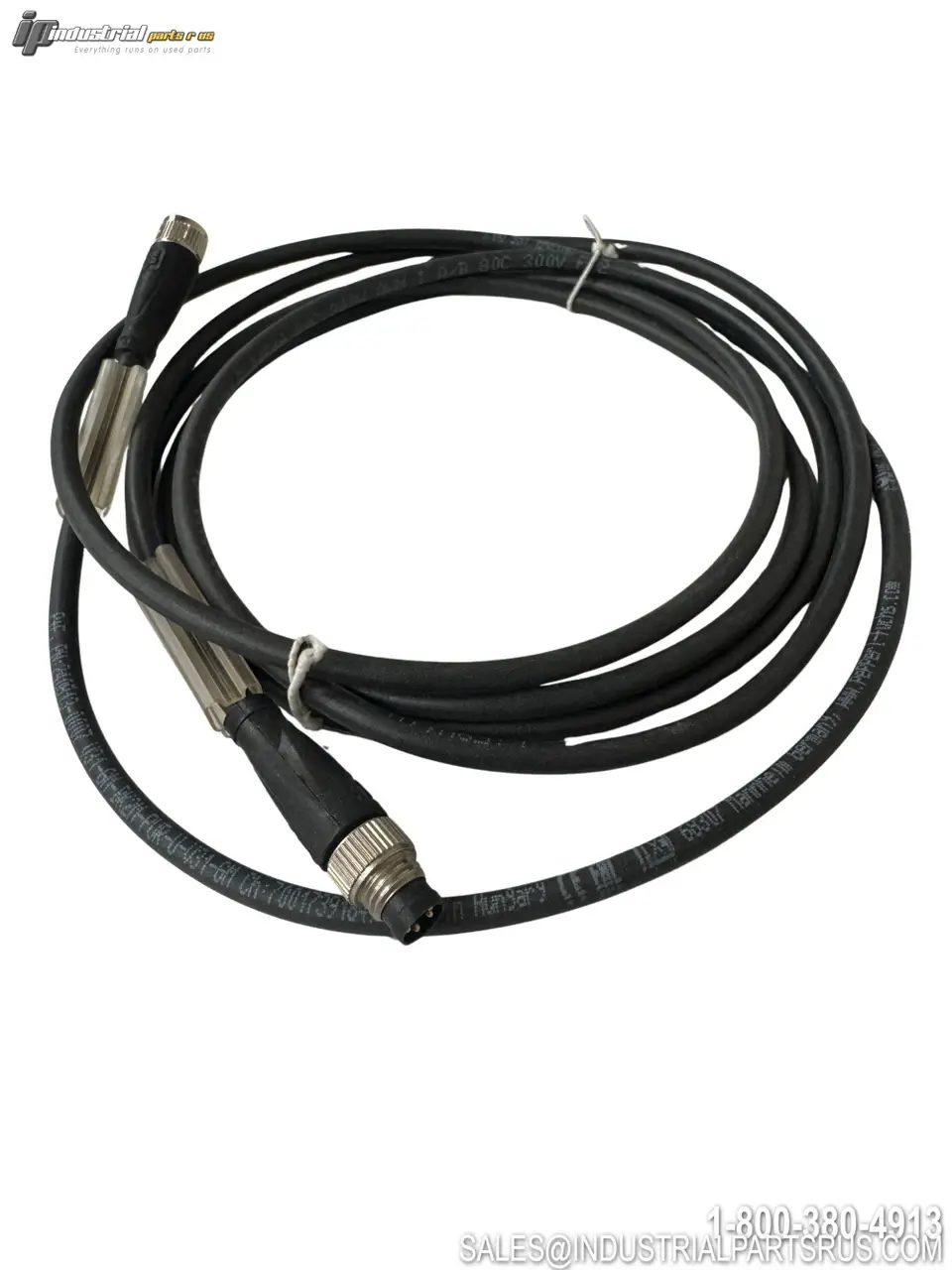

The Pepperl+Fuchs V31-GM-BK2M-PUR-U-V31-GM (P/N 240813-0007) is a double-ended sensor connection cordset featuring M8 female socket (straight) to M8 male plug (straight), A-coded, 4-pin configuration with a 2-meter black Polyurethane (PUR) cable. It is UL-listed for use in the USA and Canada and is designed for demanding industrial environments including drag chain and robotic/torsion-resistant applications. The cordset provides IP66/IP68 protection and is halogen-free, UV-resistant, and resistant to microbes, hydrolysis, oils, and cooling lubricants.
Specification
Value
Brand
Pepperl+Fuchs
Model / Part Number
240813-0007
Catalog Number (Model Name)
V31-GM-BK2M-PUR-U-V31-GM
Product Type
Double-Ended Sensor Cordset (Connection Cable)
Connector Type – End 1
M8 Female Socket, Straight
Connector Type – End 2
M8 Male Plug, Straight
Coding
A-coded
Number of Pins
4-pin
Cable Length
2 m (6.56 ft)
Cable Material / Jacket
PUR (Polyurethane) – Black
Cable Color
Black
Core Insulation
PP (Polypropylene)
Conductor Material
Bare Copper (Cu)
Degree of Protection (IP Rating)
IP66 / IP68
Rated Voltage
30 VAC / VDC
Maximum Permissible Operating Current
4 A
Approvals / Certifications
UL Listed (USA & Canada), RoHS Compliant
UL AWM Style
AWM Style 20549 AWM I/II A/B 80°C 300V FT2
Flammability Rating
FT2
Drag Chain Suitable
Yes
Torsion Resistant (Robotic)
Yes
UV Resistance
Yes
Oil Resistance
Yes
Microbial / Hydrolysis Resistance
Yes
Halogen-Free
Yes
Paint Wetting Interference Substances
Free of PWIS
Operating Temperature – Connector
-40 to +90 °C (-40 to +194 °F)
Operating Temperature – Cable (Fixed Install)
-40 to +80 °C (-40 to +176 °F)
Operating Temperature – Cable (Flexing)
-20 to +80 °C (-4 to +176 °F)
Pollution Degree
3
Cable Marking
2x PUR transparent sleeve, fixed to cable
Thread Size
M8 x 1
RoHS Compliant
Yes (RoHS Directive 2011/65/EU)
We warranty all items for 30 days from date of purchase.
