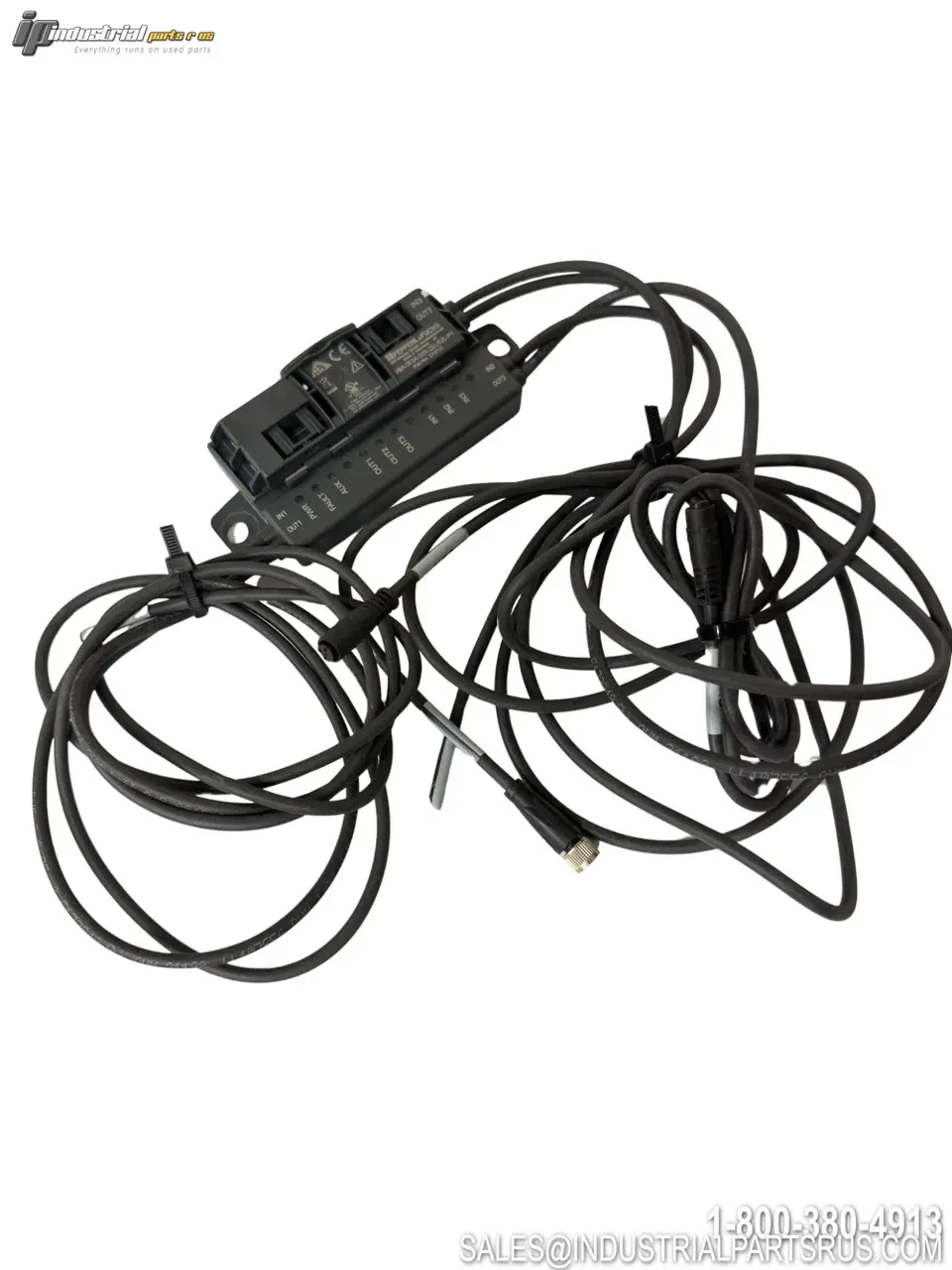

USED PEPPERL+FUCHS VBA-3E3A-G20-ZEL/E2L-PL

The Pepperl+Fuchs VBA-3E3A-G20-ZEL/E2L-PL is a G20 series AS-Interface (ASi) I/O field module designed for digital input and output applications in industrial automation. It features 3 PNP inputs compatible with 3-wire sensors and 3 PNP electronic outputs that are overload and short-circuit protected, communicating as an A/B slave node on the AS-Interface network with extended addressing for up to 62 nodes. The compact housing mounts directly into support profiles or conduits, with tool-free flat cable connection via insulation piercing technology using gold-plated contact pins and M8 round plug connectors for field device wiring.
Specification
Value
Brand
Pepperl+Fuchs
Model / Part Number
VBA-3E3A-G20-ZEL/E2L-PL
Product Family / Series
G20
Product Type
AS-Interface I/O Module
Communication Standard
AS-Interface (AS-i)
Node Type
A/B Slave (Extended Addressing, up to 62 nodes)
Number of Inputs
3
Input Type
PNP, 3-wire sensors
Number of Outputs
3
Output Type
PNP Electronic, Overload & Short-Circuit Protected
Rated Operating Voltage (AS-i Bus)
26.5 – 31.6 V DC
Auxiliary Power Supply (UAUX)
External auxiliary voltage (powers inputs & outputs)
Connection Method (AS-i Bus)
Flat cable, insulation piercing, gold-plated contact pins
Field Connector Type
M8 Round Plug Connectors (Inputs: 4-pole female cordset; Outputs: 3-pole snap-on female cordset)
Mounting Type
Support profile or conduit, tool-free snap-fit
Status Indicators (LEDs)
PWR, FAULT, IN (per input), OUT (per output)
Communication Monitoring
Yes (peripheral fault signaling to AS-i master)
Alternate Part Numbers
4001274 / 272712 / VBA3E3AG20ZELE2LP1
We warranty all items for 30 days from date of purchase.
