USED KOSME DEPAL MEC ARM B1L A/50-RFP

Manufacturer Information
Kosme
Kosme manufactures automated packaging, conveying, and material-handling equipment used in beverage, bottling, food, and container-processing operations. Depalletizing systems of this type are designed to automate the transfer of empty containers from incoming pallets into downstream conveying, filling, and packaging lines.
This Kosme DEPAL MEC ARM B1L A/50-Rfp is designed for automatic layer-by-layer depalletizing of glass containers and incorporates pallet conveying, layer handling, container extraction, empty-pallet discharge, and automatic slip-sheet handling.
Description

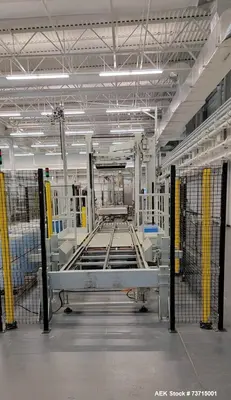

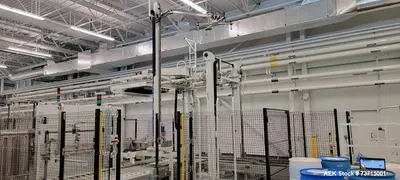

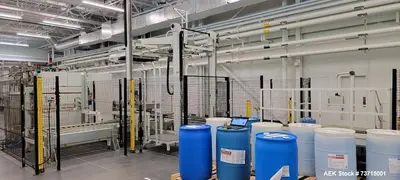

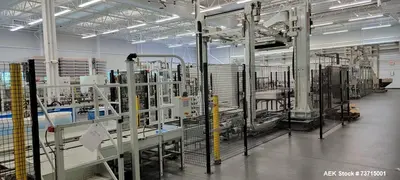

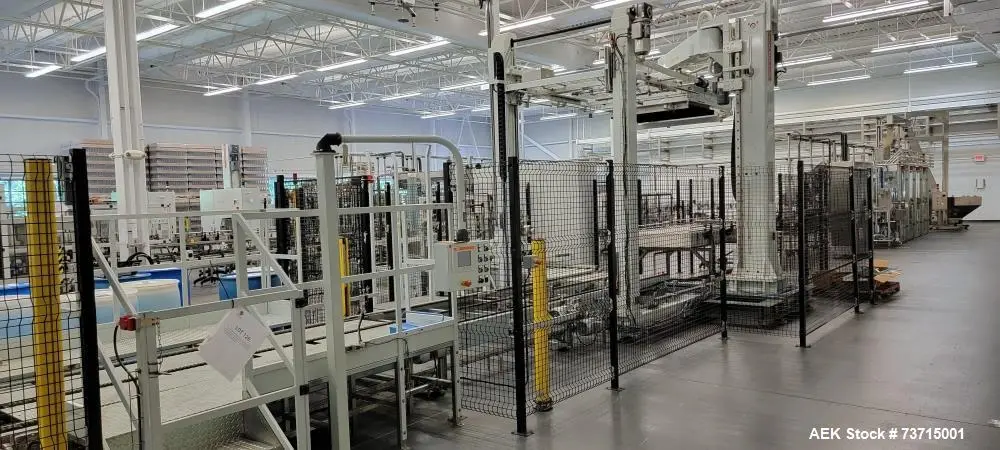

Available for sale is a used Kosme Automatic Depalletizer, Model DEPAL MEC ARM B1L A/50-Rfp, designed for automated handling and depalletizing of palletized glass containers.
The system uses a vertically traveling mechanical arm with a layer-grip carriage to remove complete layers of containers from incoming pallets. Containers are transferred to an approximately 3,000 mm (118") dropping/extraction bench configured with a parallel four-lane arrangement for integration with downstream container handling equipment.
The depalletizing system incorporates powered chain conveyors for loaded-pallet infeed, pallet preparation, and transfer through the system. Automatic empty-pallet handling and discharge reduce manual pallet handling requirements.
Also included is an automatic layer-pad/slip-sheet handling robot with magazine, providing automated removal and management of separator sheets as successive container layers are processed.
The system has a stated normal working air pressure of 87 PSI and maximum air pressure of 174 PSI. Electrical requirements are 277/480V, 3-phase, 60 Hz.
This Kosme depalletizer may be suitable for beverage, bottling, food, and other high-volume packaging operations handling compatible palletized glass bottles, jars, or containers.
Specifications

Specification
Details

Manufacturer
Kosme

Model
DEPAL MEC ARM B1L A/50-Rfp

Equipment Type
Automatic Depalletizer

Primary Application
Glass Containers

Depalletizing Method
Layer-by-Layer

Main Handling System
Vertically Traveling Mechanical Arm

Layer Handling
Layer-Grip Carriage

Extraction / Dropping Bench
Approx. 3,000 mm / 118"

Bench Configuration
Parallel 4-Lane

Loaded Pallet Infeed
Powered Chain Conveyor

Pallet Preparation / Transfer
Powered Chain Conveyors

Empty Pallet Handling
Automatic

Empty Pallet Discharge
Automatic

Layer Pad Handling
Automatic Robot

Slip-Sheet Magazine
Included

Normal Working Air Pressure
87 PSI

Maximum Air Pressure
174 PSI

Electrical
3/60/277/480V

Condition
Used

Typical Applications

Glass bottle depalletizing
Glass jar depalletizing
Beverage bottling lines
Food container handling
Empty-container handling
High-volume packaging lines
Bottle filling line preparation
Container unscrambling line feeding
Automated pallet unloading
Layer-by-layer container transfer
Packaging line automation
Bottling plant material handling

Products & Containers This Depalletizer Could Be Used For

Glass beverage bottles
Glass beer bottles
Glass wine bottles
Glass juice bottles
Glass water bottles
Glass soda bottles
Glass food jars
Glass sauce bottles
Glass condiment containers
Compatible pharmaceutical glass containers
Compatible empty glass packaging
Other palletized glass containers within system handling parameters

Actual suitability depends on container dimensions, shape, stability, pallet pattern, layer configuration, separator sheets, pallet dimensions, downstream conveyor arrangement, and required production rate.
Frequently Asked Questions

What type of containers is this Kosme depalletizer designed to handle? The system is specifically described as being designed for layer-by-layer depalletizing of glass containers.

How does the depalletizing system operate? A vertically traveling mechanical arm with a layer-grip carriage removes container layers and transfers them to the extraction area for downstream conveying.

Does the system include pallet conveyors? Yes. It includes powered chain conveyors for loaded-pallet infeed, pallet preparation, and pallet transfer, along with automatic empty-pallet handling and discharge.

How are slip sheets and layer pads handled? The system includes an automatic layer-pad/slip-sheet robot with magazine, reducing the need for manual separator-sheet removal.

What utilities does the depalletizer require? The system requires 277/480V, 3-phase, 60 Hz electrical service. Normal working air pressure is stated at 87 PSI, with maximum air pressure of 174 PSI.

Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with dismantling and loading coordination, domestic and international freight, customs documentation, and logistics planning for depalletizers and complete packaging systems. Multi-piece or oversized shipping requirements can be evaluated based on final dismantled dimensions and weights.
