USED WANNER E 45X80

Manufacturer Information
Wanner
Wanner manufactures granulators and size-reduction equipment used primarily in plastics processing, recycling, and industrial material-recovery applications. Granulators of this type are commonly used to reduce production scrap, molded parts, runners, sprues, and other compatible materials into smaller particles for recycling, reprocessing, or disposal.
This Wanner Type E 45x80 granulator features a 450 mm diameter x 800 mm wide cutting area, a 30 kW belt-driven motor, and a stated maximum capacity of approximately 800 kg/hr (1,760 lb/hr) depending on the material.
Description
Available for sale is a used Wanner Granulator, Type E 45x80, built in 2011 and designed for industrial size-reduction and recycling applications.
The granulator features an approximately 450 mm diameter x 800 mm wide cutting section and operates at a maximum stated speed of 450 RPM.
Power is supplied by a 30 kW (approximately 40 HP) belt-driven motor operating on 400V, 50 Hz, 3-phase electrical service.
Depending on the material being processed and operating conditions, the Wanner E 45x80 has a stated maximum throughput of approximately 800 kg/hr (1,760 lb/hr).

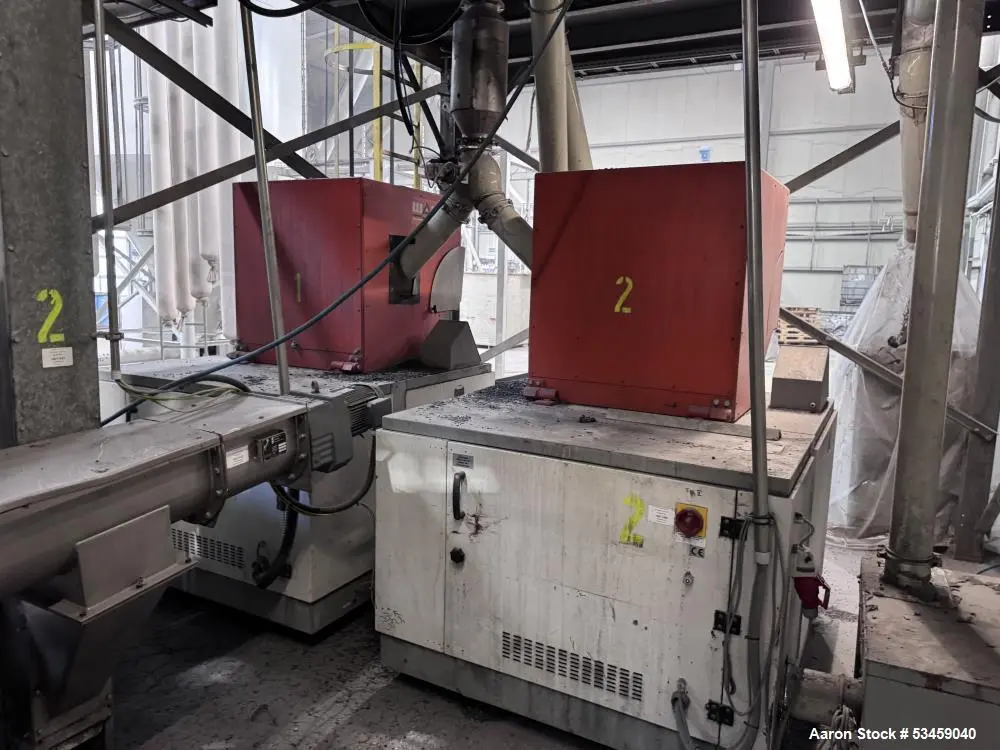

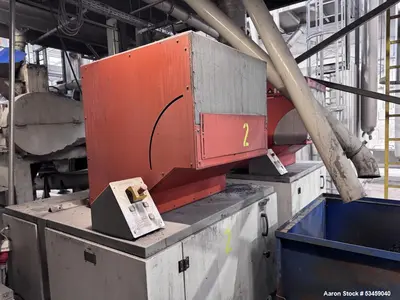

The machine is housed in a soundproof enclosure, helping reduce operating noise in production and recycling environments. Overall dimensions are approximately 1,000 mm x 2,250 mm x 2,100 mm high, with an empty weight of approximately 2 metric tonnes (4,409 lb).
This granulator may be suitable for plastics processors, recyclers, injection molders, extrusion operations, and other facilities requiring efficient reduction of compatible production scrap.
Specifications

Specification
Details

Manufacturer
Wanner

Type / Model
E 45x80

Equipment Type
Industrial Granulator

Rotor / Cutting Diameter
450 mm / 17.7"

Cutting Width / Straight Side
800 mm / 31.5"

Maximum Operating Speed
450 RPM

Drive Motor
30 kW / Approx. 40 HP

Drive Type
Belt Drive

Maximum Capacity
800 kg/hr / 1,760 lb/hr

Electrical
400V / 50 Hz / 3 Phase

Enclosure
Soundproofed Box

Approx. Dimensions
1,000 x 2,250 x 2,100 mm H

Approx. Dimensions – Imperial
39.4" x 88.6" x 82.7" H

Empty Weight
Approx. 2 Metric Tonnes / 4,409 lb

Year Built
2011

Condition
Used

Typical Applications

Plastic recycling
Industrial size reduction
Injection molding scrap recovery
Extrusion scrap processing
Production waste reduction
Runner and sprue granulation
Plastic part granulation
In-house material recycling
Manufacturing scrap recovery
Regrind production
Polymer recycling
Industrial material reclamation

Products & Materials This Granulator Could Be Used For

Plastic molded parts
Injection molding runners
Sprues
Plastic production rejects
Extrusion scrap
Polymer components
Plastic sheets and profiles
Thermoplastic scrap
Plastic containers
Compatible plastic components
Recyclable manufacturing scrap
Other materials suitable for granulation

Actual throughput and suitability depend on material type, dimensions, density, toughness, temperature, feed method, knife condition, screen configuration, and desired finished particle size.
Frequently Asked Questions

What is the maximum capacity of this Wanner granulator? The stated maximum throughput is approximately 800 kg/hr (1,760 lb/hr). Actual capacity will vary significantly with the material and required finished particle size.

How large is the cutting section? The machine is specified at approximately 450 mm diameter x 800 mm wide, or roughly 17.7" x 31.5".

What size motor does the E 45x80 have? The granulator is powered by a 30 kW motor, approximately equivalent to 40 HP, using a belt-drive arrangement.

Does the machine have noise reduction? Yes. The granulator is installed in a soundproofed enclosure, which can help reduce operating noise compared with an unenclosed granulator.

What electrical service is required? The stated electrical requirement is 400V, 50 Hz, 3-phase. Facilities operating on North American 60 Hz power should evaluate electrical compatibility before installation.

Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with loading coordination, domestic and international freight, customs documentation, and logistics planning. With an empty weight of approximately 2 metric tonnes, appropriate material-handling and freight arrangements should be planned.
