Used APV Crepaco 500-Gallon Stainless Steel Liquifier – Dual Agitation with 75 PSI Jacket

Manufacturer Information
APV Crepaco
APV Crepaco equipment has been widely used for industrial food, dairy, beverage, and sanitary processing applications. Its stainless steel processing vessels and liquifiers are designed for operations such as ingredient incorporation, blending, dispersion, emulsification, and batch preparation.
This approximately 500-gallon stainless steel liquifier combines a 7.5 HP top-mounted sweep agitator with a 25 HP bottom-entering high-speed agitator, providing both bulk product movement and high-shear mixing capability.
Description

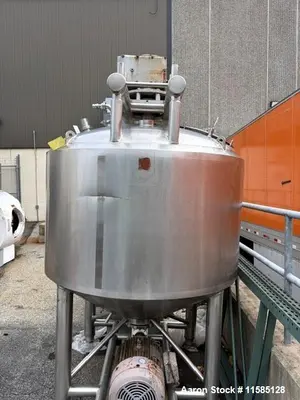

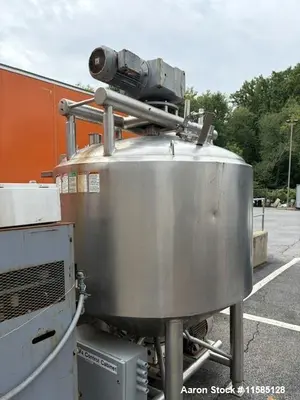

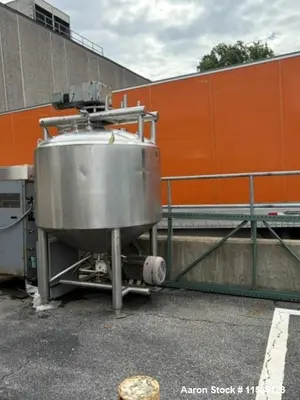

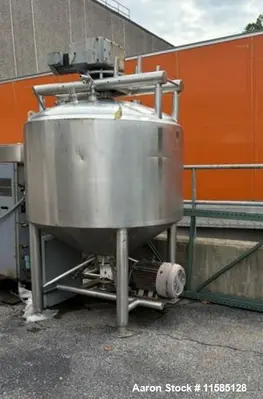

Available for sale is a used APV Crepaco stainless steel liquifier with an approximate 500-gallon capacity, built in 1995.
The vessel has an atmospheric internal design and is equipped with a heating/cooling jacket rated for 75 PSI at 350°F. This configuration allows compatible heating or cooling media to be circulated through the jacket for temperature-controlled processing.
The dual-agitation system consists of a 7.5 HP top-mounted drive for sweep agitation and a 25 HP bottom-entering high-speed agitator. The sweep agitator promotes bulk circulation throughout the vessel, while the high-speed bottom agitator can provide more intensive mixing, dispersion, and ingredient incorporation.
The stainless steel vessel features a dished top and conical bottom, with approximate dimensions of 60" diameter x 36" straight side plus an 18" conical bottom.
This APV Crepaco liquifier may be well suited for processing applications involving sauces, dressings, dairy products, beverage ingredients, batters, emulsions, liquid food formulations, and other compatible products requiring both sweep and high-speed agitation.
National Board No. 9015
Serial No. K1050
Specifications

Specification
Details

Manufacturer
APV Crepaco

Equipment Type
Stainless Steel Liquifier

Approximate Capacity
500 Gallons

Construction
Stainless Steel

Internal Design
Atmospheric

Jacket Rating
75 PSI @ 350°F

Top Agitator
Sweep Agitator

Sweep Drive
7.5 HP

High-Speed Agitator
Bottom Entering

High-Speed Drive
25 HP

Top
Dished

Bottom
Conical

Diameter
Approx. 60"

Straight Side
Approx. 36"

Conical Bottom Height
Approx. 18"

National Board Number
9015

Serial Number
K1050

Year Built
1995

Condition
Used

Typical Applications

Ingredient liquification
High-shear mixing
Liquid blending
Powder incorporation
Emulsification
Dispersion
Batch formulation
Temperature-controlled mixing
Food processing
Dairy processing
Beverage preparation
Sauce and dressing production

Products This Liquifier Could Be Used For

Sauces
Salad dressings
Dairy-based products
Beverage concentrates
Syrups
Batters
Gravies
Marinades
Liquid food ingredients
Emulsified products
Compatible suspensions and dispersions
Specialty liquid formulations

Actual suitability depends on product chemistry, viscosity, solids loading, required shear, temperature, agitator configuration, sanitary requirements, and vessel condition. The jacket rating and National Board information should be verified against current vessel documentation and condition before pressure service.
Frequently Asked Questions

What is the capacity of this APV Crepaco liquifier? The vessel has an approximate 500-gallon capacity.

What agitation system does it have? The liquifier combines a 7.5 HP top-mounted sweep agitator with a 25 HP bottom-entering high-speed agitator, providing two different mixing actions.

Is the vessel internally pressure rated? The vessel is described as having an atmospheric internal design. It should not be assumed to be suitable for internal pressure operation.

Is the tank jacketed? Yes. The jacket is rated for 75 PSI at 350°F, allowing compatible heating or cooling media to be used for temperature-controlled processing.

What are the vessel dimensions? The tank measures approximately 60" diameter x 36" straight side and has an approximately 18" conical bottom.

Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, customs documentation, and logistics planning for liquifiers, mixing vessels, and other industrial processing equipment.
