BATY Shadowmaster Type 202A

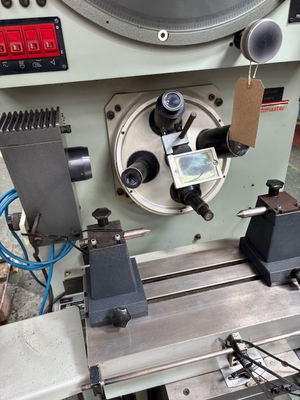

Baty Shadowmaster Type 202A Profile Projector
The Baty Shadowmaster Type 202A is a precision optical inspection and measurement machine designed for accurate checking of component profiles, dimensions and forms. Manufactured by Baty, a well-established name in optical measurement and inspection equipment, the Shadowmaster provides a practical solution for engineering workshops, inspection departments and manufacturing environments.
Profile projectors allow components to be inspected using an enlarged optical image, making it possible to accurately examine intricate profiles, angles, radii, threads and other component features. This makes the Baty Shadowmaster particularly useful for tool inspection, quality control and precision engineering applications.
The Type 202A offers a straightforward and effective method of carrying out dimensional inspection without the need for complex coordinate measuring equipment. Its optical projection system provides clear magnification of the workpiece profile, allowing operators to compare components against drawings, templates or measurement references.
Key Features
Manufacturer: Baty
Model: Shadowmaster Type 202A
Type: Profile Projector / Shadowgraph
Application: Optical inspection and dimensional measurement
Suitable for: Toolrooms, engineering workshops, inspection departments and manufacturing
Primary Uses: Profile checking, dimensional inspection, angle measurement and component verification
Design: Precision optical inspection equipment
The Baty Shadowmaster Type 202A for sale is an excellent option for engineering businesses looking for reliable and straightforward optical inspection equipment. As a used Baty profile projector, it offers an economical way to introduce or expand inspection capabilities within a workshop.
For further information, machine specifications, availability or to arrange a viewing, please contact Blue Diamond Machine Tools Ltd.
