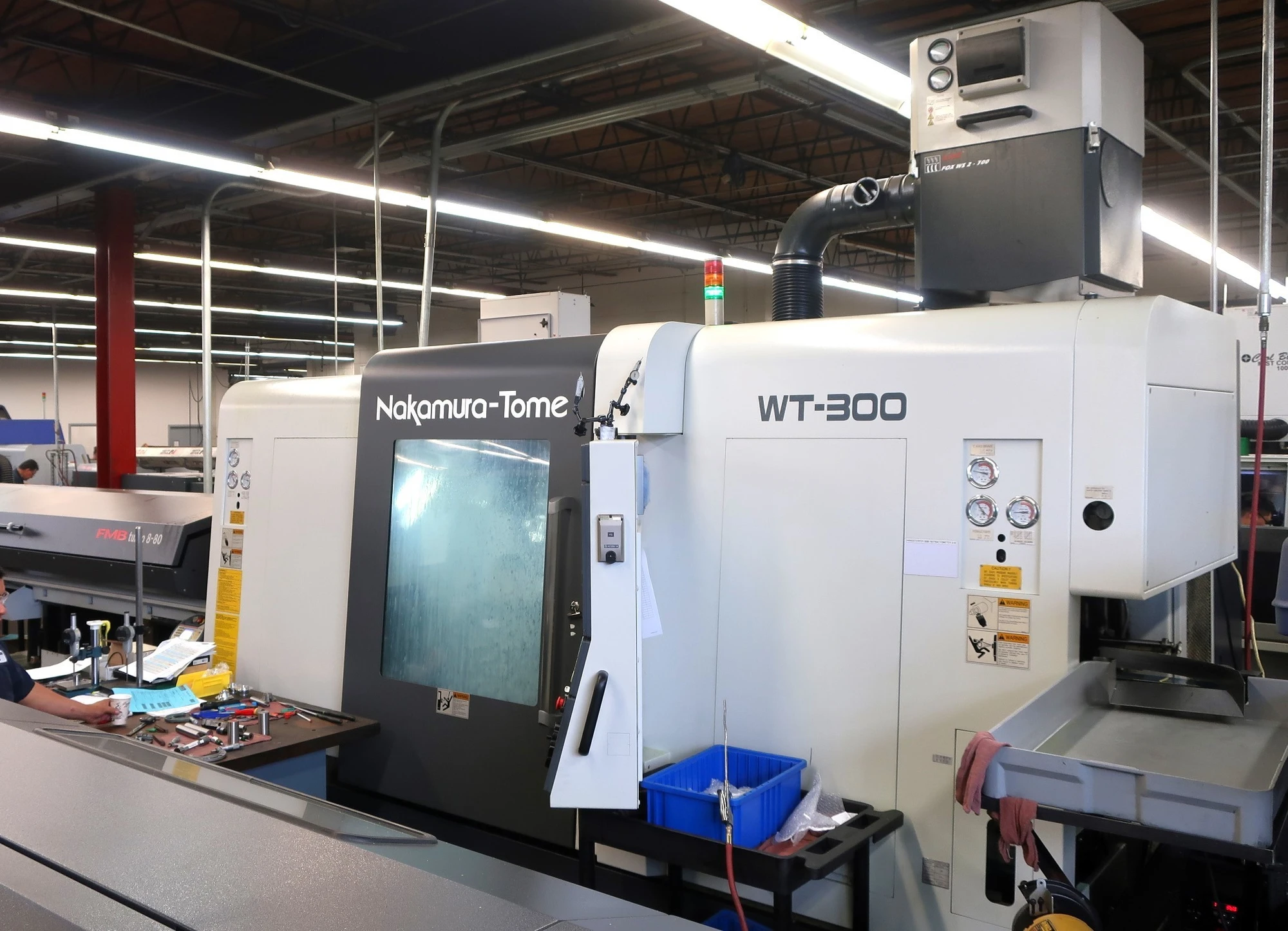

USED 2015 NAKAMURA-TOME WT-300MMY
Overview

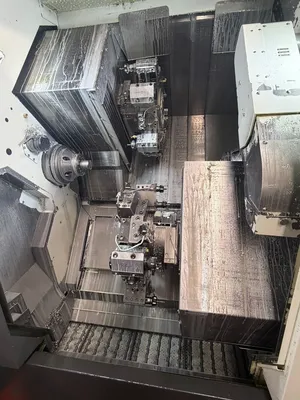

Purchase a reliable, used NAKAMURA-TOME WT-300. Made in 2015, this CNC Lathe is equipped with a high-pressure coolant pump, parts catcher and exit conveyor, a bar feeder, mist collector, and milling function on both turrets. The machine is equipped with 24 tool stations upper and lower each, spindles speeds up to 4,500 RPM, and a machine weight of 31,975 lbs. Its maximum turning length is 30.71". This used equipment is ideal for professional or industrial use.
Specs
Specifications (subject to buyer verification):
Swing Over Slides: 10.63”
Maximum Turning Diameter: 10.63″
Maximum Turning Length: 30.71″
Spindles Speeds: 4,500 RPM

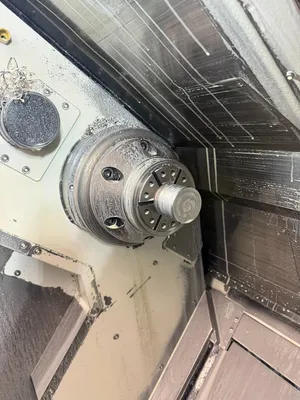

Spindle Nose: A2-6
Hole Through Draw Tube: 2.598”
Spindle Bore: 3.15”
C-Axis Least Input / Command Increment: .001 Deg
C-Axis Rotation Speed: 600 IPM

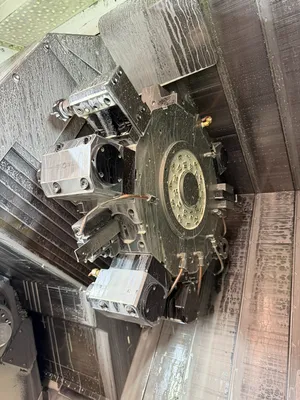

Turret Type: (Upper / Lower) Dodecagonal / Dodecagonal

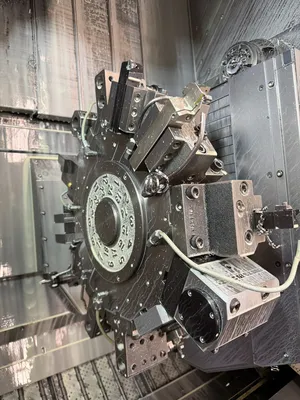

Turret No. of Tool Stations Upper: 24 / Lower: 24
Rotating Tool Speeds: 3,600 RPM
Slide Travel X1 / X2 Axes: 7.68”
Slide Travel Z1 / Z2 Axes: 30.71”
Slide Travel B2 Axis: 33.46”
Rapid Traverse X1 / X2 Axes: 630 IPM
Rapid Traverse Z1 / Z2 Axes: 1,063 IPM
Rapid Traverse B2 Axis: 1,063 IPM
Rapid Traverse Y-Axis: 236 IPM
Spindle Motors L,R: 20/15 HP
Machine Weight: 31,975 lbs
Equipped With

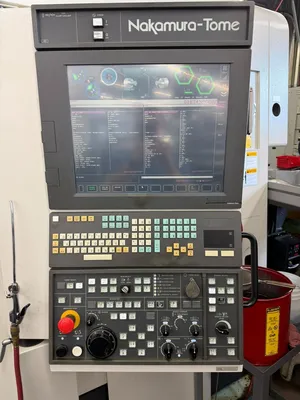

NT Smart X Control with Fanuc 31i-A5,

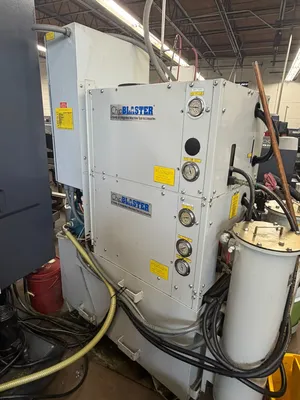

Chip Blaster J2-60 High Pressure Coolant Pump

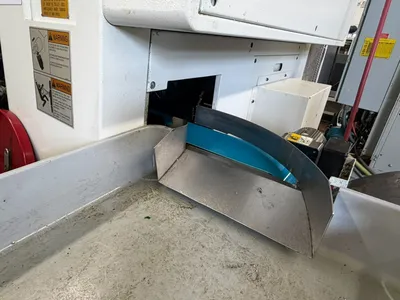

Parts Catcher and Exit Conveyor

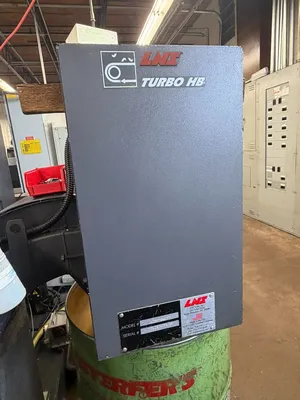

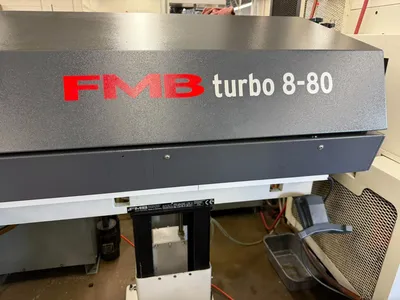

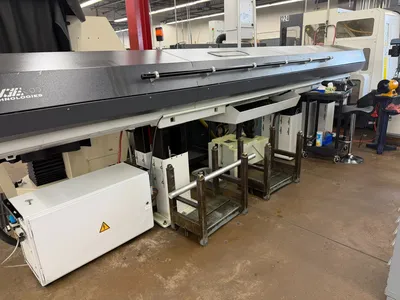

FMB Turbo 8-80 / 4200 "A" Bar Feeder
LNS Fox WS2 700 Mist Collector
71 mm Bar Cap. on Left Spindle
65 mm Bar Cap. on Right Spindle

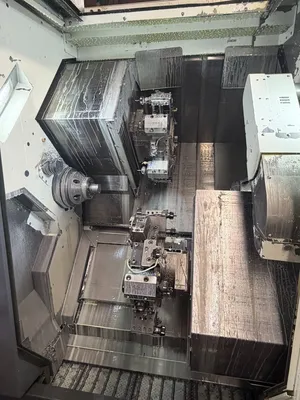

Milling Function on Both Turrets
Collet Chucks
Y-Axis Function on Upper Turret
Chip Conveyor
(10) Live Tools (5 radial, 5 axial)
