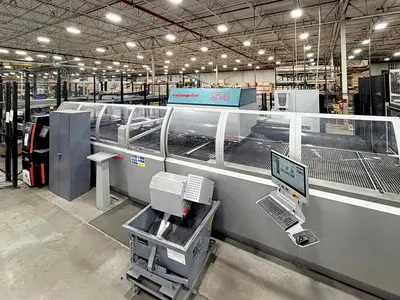

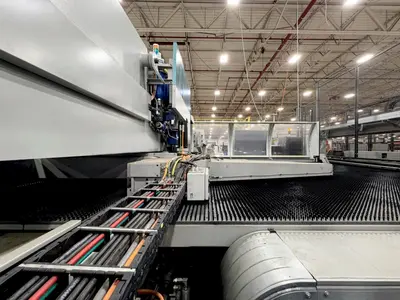

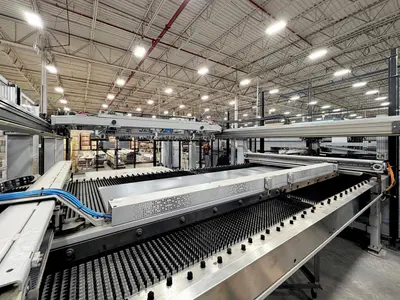

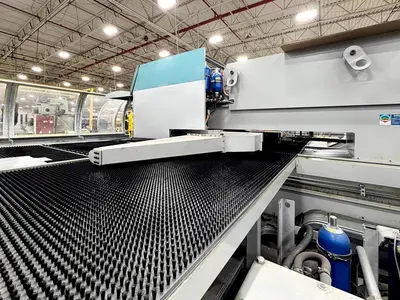

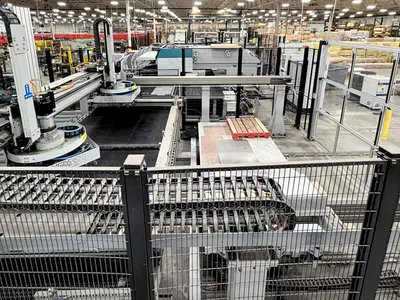

USED 2022 SALVAGNINI S4XE.30
Overview

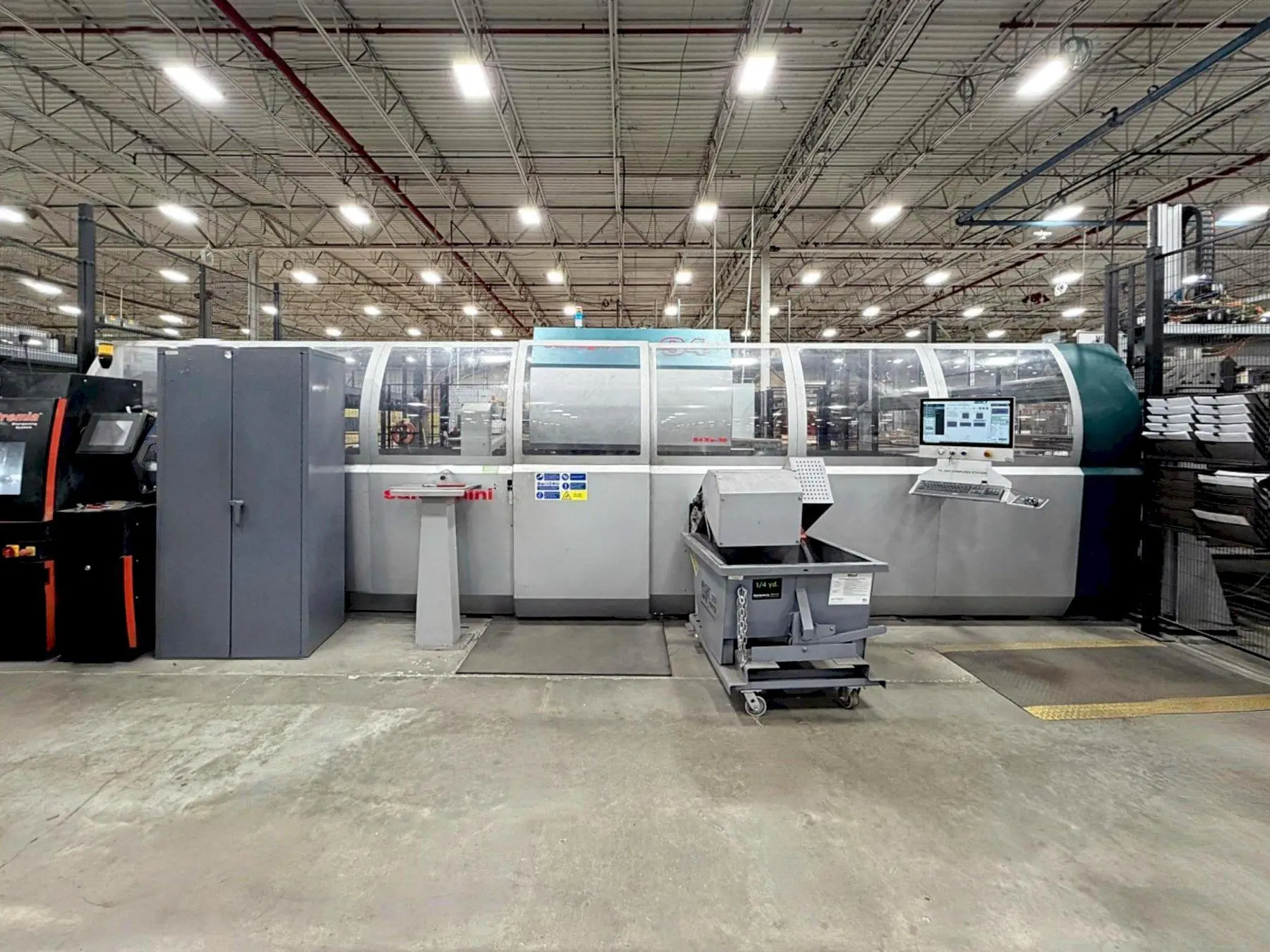

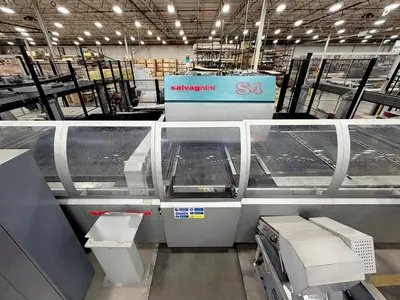

The S4Xe punching shearing center is an integrated sheet metal work center that automates loading, punching, forming, separation, and unloading.
Specs
Control: CNC
Drive Type: Servo-Driven
Product Handled: Sheet Metal
Associated Functions: Cutting, Shearing, Forming, Punching
Max Sheet Dimensions: 120” X 65”
Max Sheet Diagonal: 136.5”
Min Sheet Dimensions: 14.56” X 11.81”
Max Speed - X Axis: 5,196 IPM
Max Speed - Y Axis: 3,779 IPM
Speed w/ Both Axes Moving Simultaneously: 6,417 IPM
Max Acceleration - X Axis: 1,181 in/s²
Max Acceleration - Y Axis: 590.6 in/s²
Punching Technology: Operating Head
Punching Max Thickness Aluminum: 0.197”
Punching Max Thickness Steel: 0.138”
Punching Max Thickness Stainless Steel: 0.079”
Punching Min Thickness: 0.020”
Shearing Technology: Simultaneous or Independent X & Y Axis Cutting
Shearing Max Thickness Aluminum: 0.197”
Shearing Max Thickness Steel: 0.138”
Shearing Max Thickness Stainless Steel: 0.079”
Shearing Min Thickness: 0.020”
Equipped With

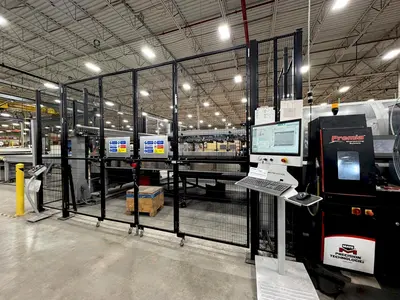

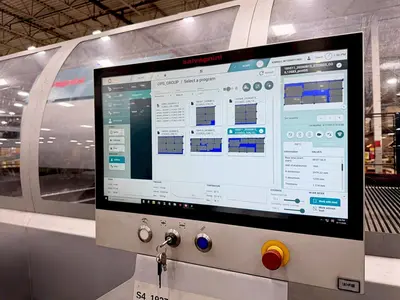

System Control & Management
Punching Machine
Integrated Right-Angle Shear
(2) Double Indexing Punch
Punching Tools

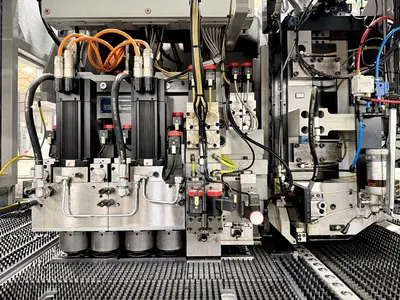

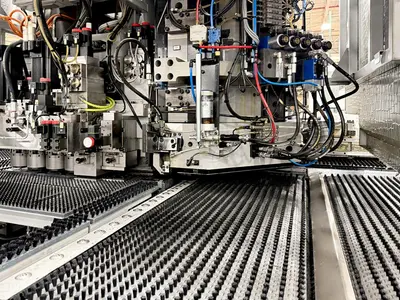

Multi Press Head
Manipulator w/ 119.3” Stroke
Manipulator w/ 9 Independently Opening Pincers
96 Tooling Capacity
Lower Cylinder
Tapping Unit
Embosser
Ink-Jet Marking

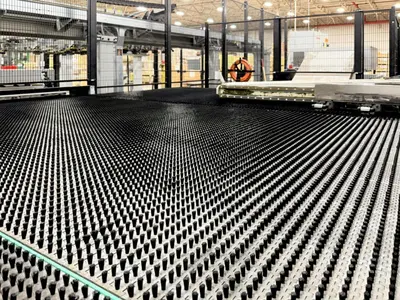

Brush-Conveyor
Motorized Roller-Surface for Operation In-Line
Good Parts Selector

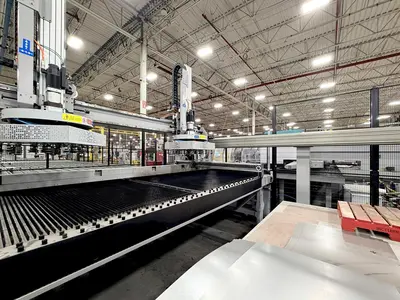

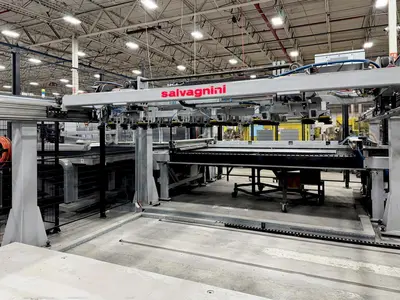

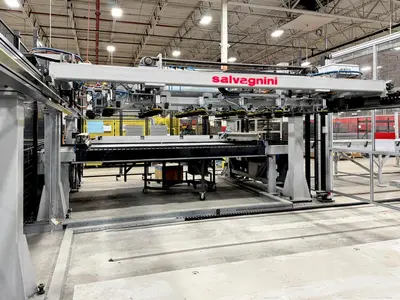

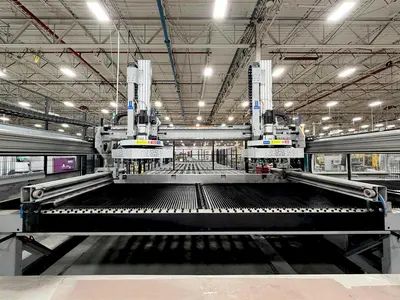

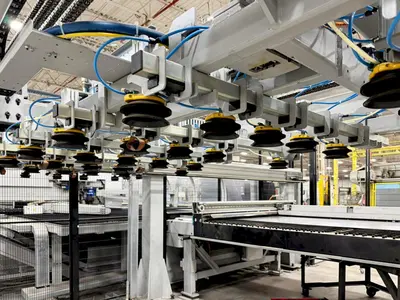

Cartesian Manipulator
Automatic Destacker

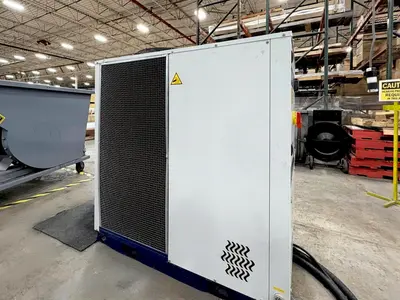

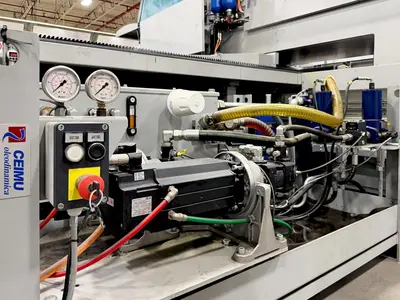

Hydraulic Power Pack
